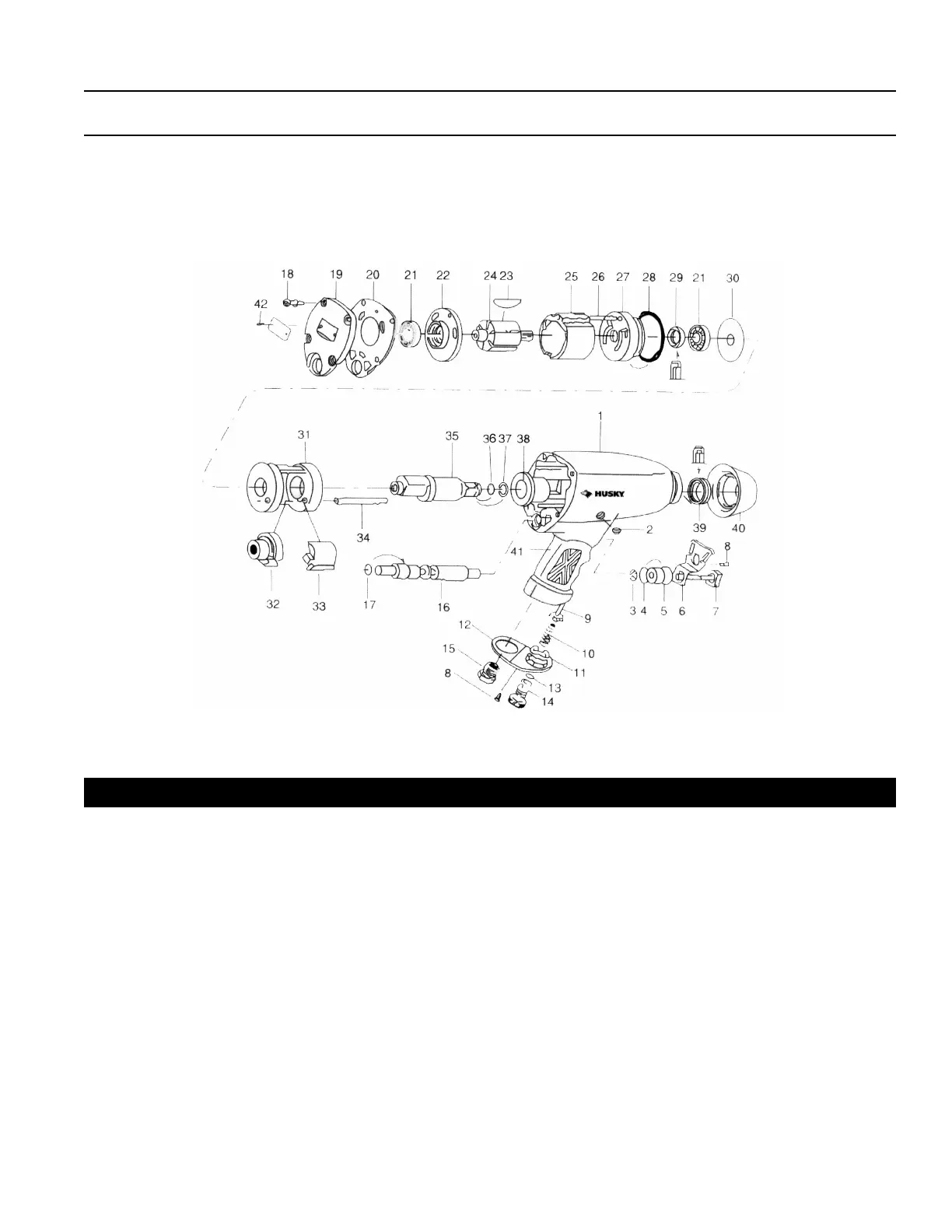

Exploded View and Parts List
1/2" Impact Wrench
Ref. # Part No. Description
Ref. # Part No. Description
For replacement parts or the nearest service center, call
toll free 1-877-841-9438
Model No. H4103
1. 410301 Motor Housing
2. 9106045 Oil Plug
3. 410303 E-Ring
4. 410304 O-Ring
5. 410305 Throttle Bushing
6. 410306 Exhaust Deflector
7. 410307 Throttle Trigger
8. 410308 Tapping Screw (2)
9. 410309A Valve Stem
10. 410310 Valve Spring
11. 9102115 E-ring
12. 410312 Stop Cover Deflector
13. 410313 O-ring
14. 410314 Air Regulator
15. 410315 Hose Adapter
16. 410316 Reversing Valve
17. 410317 O-ring
18. 410318 Button Head Torx Screw &
washer (4)
19. 410319 End Cap
20. 410320 Gasket
21. 410321 Ball Bearing (2)
22. 410322 Rear Plate
23. 410323 Rotor Blade (6)
24. 410324 Rotor
25. 410325 Cylinder
26. 410326 Guide Pin
27. 410327 Front Plate
28. 410328 O-ring
29. 9106015 Oil Seal
30. 410330 Washer
31. 9106019 Hammer Cage
32. 410332 Drive Cam
33. 9106021 Hammer Dog
34. 9106020 Hammer Pin
35. 9106018 Anvil. Std.
36. 9106041 O-ring
37. 9106040 Socket Ring
38. 410338 Anvil Bushing
39. 9106037 Oil Seal
40. 410340 Nose Guard
41. 410341 Handle Rubber
42. 410342 Name Plate Screw (2)
