Electrical system

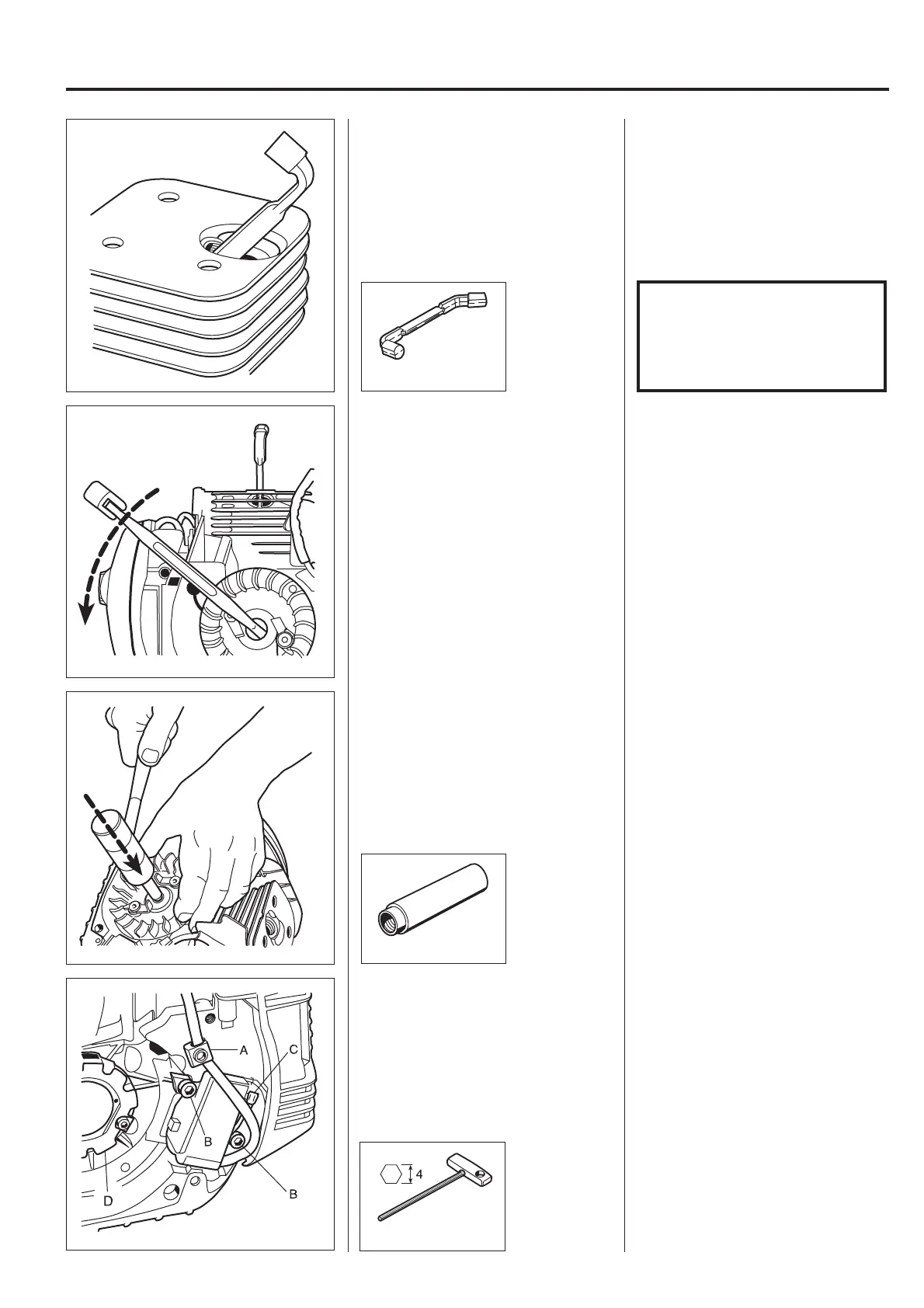

Remove the nut holding the flywheel.
Remove the flywheel.
Remove the nut holding the flywheel.
Remove the flywheel from the crank-
shaft using punch no. 502 51 94-01.
Leave a gap of approx. 2 mm between
the punch and the flywheel.
Gently knock the punch with a hammer
while holding the flywheel with your
other hand.
Dismantling
Remove the starter, cylinder cover, and
spark plug.
Attach piston stop no. 502 54 15-01.
Dismantling
Remove the starter, cylinder cover, and
spark plug.
Fit piston stop no. 502 54 15-01 in the
spark plug hole.
NOTE!
Place the piston stop so it is
caught between the piston and
the cylinder head. Not so it sticks
out into the exhaust port.
Remove the ignition module and the
generator.
Dismantle the ignition module.
Remove the ignition cable from the
holder (A).
Remove both bolts (B).
Loosen the short-circuit cable (C) from
the ignition module.
Remove the generator (D) that supplies
power to the heated handles.
