502 50 18-01

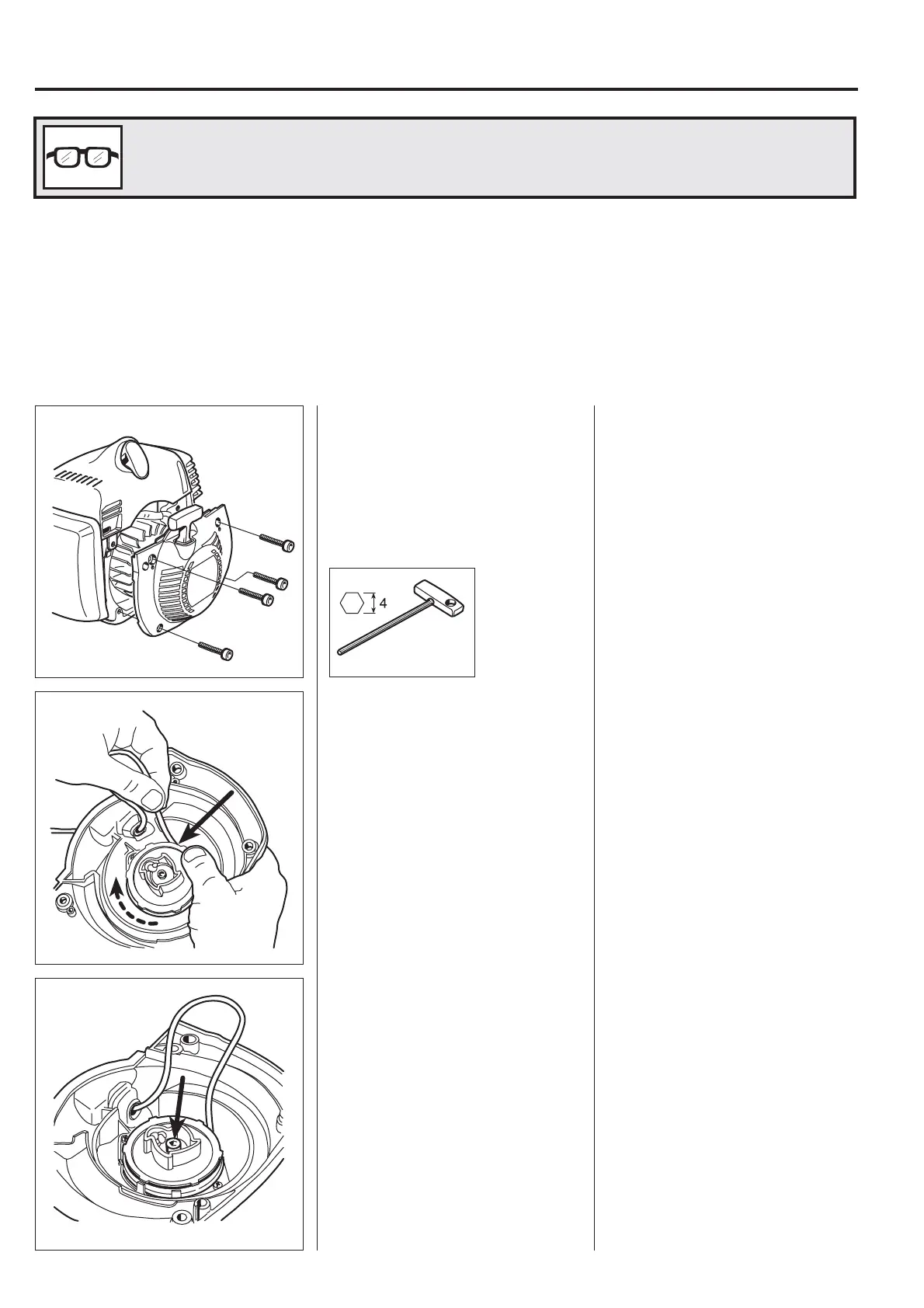

Starter
WARNING!
Protective glasses should be worn when working on the starter to avoid injury to the eyes if, for
some reason, the return spring should fly out.
!
Remove the bolt in the centre of the
starter pulley and remove the starter
pulley.
Remove the bolt in the centre of the
starter pulley. Lift the starter pulley
carefully from the starter cover.
Loosen the spring tension. Loosen the spring tension.
Pull out the starter cord about 30 cm.
Brake the starter pulley with your thumb
and lift the cord as illustrated.
Let the starter pulley rotate backwards
slowly.
Dismantling
Remove the starter from the engine.
Dismantling
Remove the 4 bolts and lift off the
starter.
The cylinder cover does not need to be
loosened or detached.
