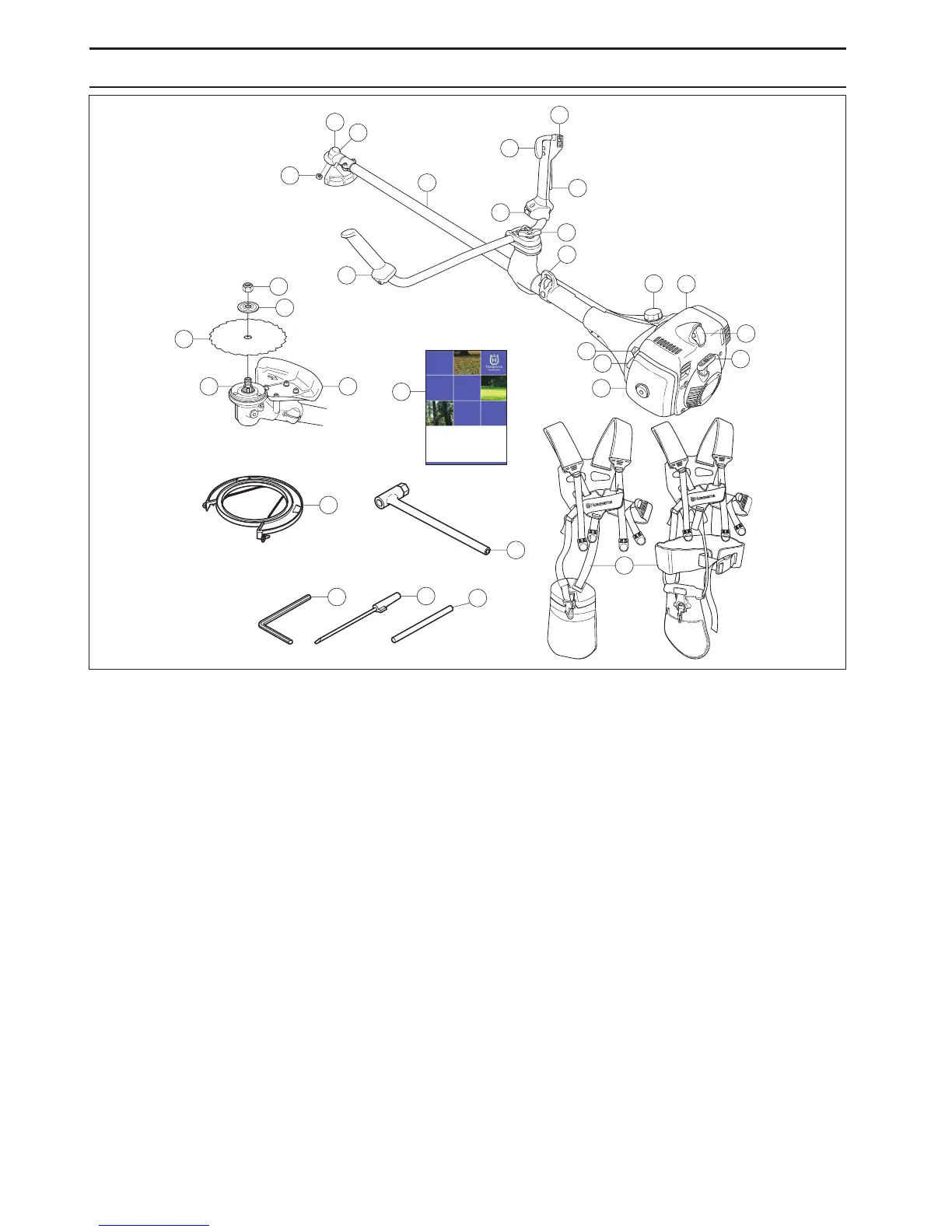

What is what on the c
learing saw? (343F, 345FX, 345FXT)
24
27
25
26
23
6
3
2
5
13
11
10
12
9
8
7
17
29
14
16
15
21
22
18
1
420
18
19
28
1
Saw blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle control
8 Stop switch
9 Throttle lockout
10 Support eyes for harness
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air purge
16 Air filter cover
17 Handle adjustment
18 Locking nut
19 Support flange
20 Drive disc
21 Spark plug
22 Socket spanner
23 Operator’s manual
24 Transport guard
25 Allen key
26 Carburettor screwdriver
27 Locking pin
28 Harness
29 Switch for heated handle (345FXT)
