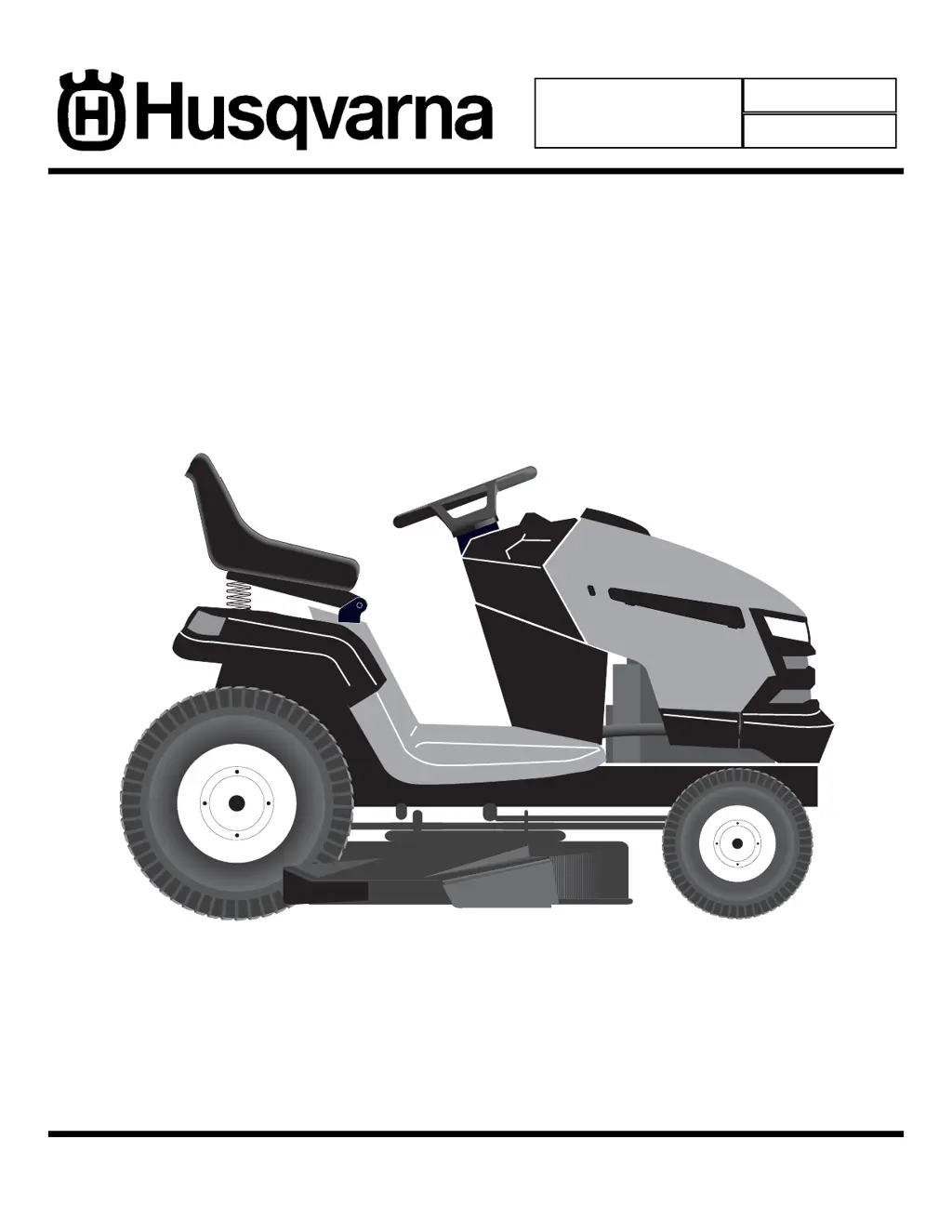

Husqvarna 96043004700 User Manual (English)

Questions and Answers:

V
Victoria HeathAug 21, 2025
What to do if Husqvarna 96043004700 Lawn Mower engine will not turn over?
- J
  James MartinezAug 21, 2025
  If the engine of your Husqvarna Lawn Mower won't turn over, it could be due to several reasons: the brake pedal might not be depressed (depress it); the attachment clutch might be engaged (disengage it); the battery could be weak or dead (recharge or replace it); a fuse might be blown (replace the fuse); the battery terminals might be corroded (clean them); the wiring might be loose or damaged (check all wiring); the ignition switch might be faulty (check or replace it); the solenoid or starter might be faulty (check or replace them); or there might be a faulty operator presence switch (contact an authorized service center).
Y
ywrightAug 26, 2025
How to fix hard start on Husqvarna 96043004700 Lawn Mower?
- S
  Sandra GarciaAug 27, 2025
  If your Husqvarna Lawn Mower is hard to start, consider these potential causes: a dirty air filter (clean or replace it), a bad spark plug (replace it), a weak or dead battery (recharge or replace it), a dirty fuel filter (replace it), stale or dirty fuel (empty the fuel tank and refill with fresh, clean gasoline), loose or damaged wiring (check all wiring), a carburetor out of adjustment (see “To Adjust Carburetor” in Service Adjustments section), or engine valves out of adjustment (contact an authorized service center).
S
Seth EdwardsAug 28, 2025
How to troubleshoot uneven cut with Husqvarna Lawn Mower?
- N
  Nicole ReedAug 28, 2025
  An uneven cut with your Husqvarna Lawn Mower may be due to: a worn, bent, or loose blade (replace the blade and tighten the blade bolt); the mower deck not being level (level the mower deck); a buildup of grass, leaves, and trash under the mower (clean the underside of the mower housing); a bent blade mandrel (replace the blade mandrel); or clogged mower deck vent holes (clean around mandrels to open vent holes).
J
Jimmy GrayAug 30, 2025
What causes battery not charging on Husqvarna 96043004700?
- D
  Derek SmithAug 30, 2025
  If the battery of your Husqvarna Lawn Mower will not charge, it could be due to: bad battery cells (replace the battery); poor cable connections (check and clean all connections); a faulty regulator (if so equipped, replace the regulator); or a faulty alternator (replace the alternator).
J
Jill BergSep 4, 2025
What to do if Husqvarna Lawn Mower engine clicks but will not start?
- J
  Joseph JacksonSep 4, 2025
  If your Husqvarna Lawn Mower engine clicks but doesn't start, it could be due to: a weak or dead battery (recharge or replace it); corroded battery terminals (clean the battery terminals); loose or damaged wiring (check all wiring); or a faulty solenoid or starter (check or replace the solenoid or starter).
W
William WilsonSep 6, 2025
What causes loss of drive in Husqvarna 96043004700?
- K
  Kimberly BrownSep 6, 2025
  Loss of drive in your Husqvarna Lawn Mower could be due to: the freewheel control being in the “disengaged” position (place it in the “engaged” position); a worn, damaged, or broken motion drive belt (replace the motion drive belt); or air trapped in the transmission during shipment or servicing (purge the transmission).
L
lisarussellSep 8, 2025
What to do if Husqvarna 96043004700 Lawn Mower blades will not rotate?
- C
  Christine SwansonSep 8, 2025
  If the blades on your Husqvarna Lawn Mower won't rotate, it could be caused by: an obstruction in the clutch mechanism (remove the obstruction); a worn or damaged mower drive belt (replace the mower drive belt); a frozen idler pulley (replace the idler pulley); or a frozen blade mandrel (replace the blade mandrel).
A
Aaron BrownSep 12, 2025
Why does my Husqvarna 96043004700 engine die in reverse?
- D
  David WilliamsSep 12, 2025
  Your Husqvarna Lawn Mower engine might die when shifted into reverse because the Reverse Operation System (ROS) is not "ON" while the mower or other attachment is engaged. Turn the ignition key to the ROS "ON" position. See the Operation section for more details.
A
Angela WrightSep 13, 2025
How to fix headlights not working on Husqvarna 96043004700 Lawn Mower?
- M
  Maria BonillaSep 13, 2025
  If the headlights on your Husqvarna Lawn Mower are not working, check if: the light switch is “OFF” (turn it “ON”); the bulbs or lamps are burned out (replace them); the light switch is faulty (check or replace it); the wiring is loose or damaged (check the wiring and connections); or a fuse is blown (replace the fuse).

Husqvarna 96043004700 Specifications

General

Brand	Husqvarna
Model	96043004700
Category	Lawn Mower
Language	English

Summary

SAFETY RULES

GENERAL OPERATION

Read, understand, and follow all instructions on the machine and in the manual before starting.

SLOPE OPERATION

Slopes are a major factor related to loss of control and tip-over accidents.

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children.

SERVICE

Safe handling of gasoline and general service recommendations.

PRODUCT SPECIFICATIONS

CUSTOMER RESPONSIBILITIES

Follow a regular schedule in maintaining, caring for and using your tractor.

UNASSEMBLED PARTS

ASSEMBLY

TO DRIVE TRACTOR OFF SKID

Steps to safely drive the tractor off its shipping skid.

INSTALL MOWER AND DRIVE BELT

Instructions for installing the mower and its drive belt.

CHECK BRAKE SYSTEM

Verify the proper operation of the tractor's brake system.

OPERATION

KNOW YOUR TRACTOR

Familiarize yourself with the locations of various controls and adjustments.

HOW TO USE YOUR TRACTOR

Instructions on setting the parking brake and stopping the tractor.

TO OPERATE ON HILLS

Safety precautions and methods for operating the tractor on slopes.

TO TRANSPORT

Procedures for safely transporting the tractor.

TO START ENGINE

Procedures for starting the engine, including cold and warm weather.

MOWING TIPS

Advice for optimal mowing performance and grass care.

MAINTENANCE

MAINTENANCE SCHEDULE

A schedule for regular maintenance tasks and intervals.

BEFORE EACH USE

Routine checks to perform before operating the tractor.

BLADE CARE

Importance of sharp blades and replacement guidelines.

BATTERY

Battery care, cleaning, and charging.

TO CHANGE ENGINE OIL

Step-by-step instructions for changing the engine oil.

DECK WASHOUT PORT

Instructions for using the deck washout port for cleaning.

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER

Adjusting the mower deck for proper side-to-side levelness.

FRONT-TO-BACK ADJUSTMENT

Adjusting the mower deck for proper front-to-back pitch.

TO REPLACE MOWER BLADE DRIVE BELT

Instructions for replacing the mower blade drive belt.

TO CHECK BRAKE

Procedures to verify the effectiveness of the tractor's braking system.

TO ADJUST CARBURETOR

Information regarding carburetor adjustability for engine performance.

STORAGE

FUEL SYSTEM

Important steps to prepare the fuel system for storage.

TROUBLESHOOTING POINTS

SCHEMATIC

ELECTRICAL

Wiring diagram and components for the tractor's electrical system.

DRIVE

Exploded view and parts list for the tractor's drive system.

ENGINE

Exploded view and parts list for the engine components.

MOWER DECK

Exploded view and parts list for the mower deck assembly.

Husqvarna WARRANTY STATEMENT

SECTION 1: LIMITED WARRANTY

Details the warranty coverage periods for various Husqvarna products.

SECTION 4: EXCEPTIONS AND LIMITATIONS

Outlines conditions and limitations that void the warranty.

SECTION 5: CUSTOMER RESPONSIBILITIES

Specifies customer duties for maintaining warranty validity.
