5

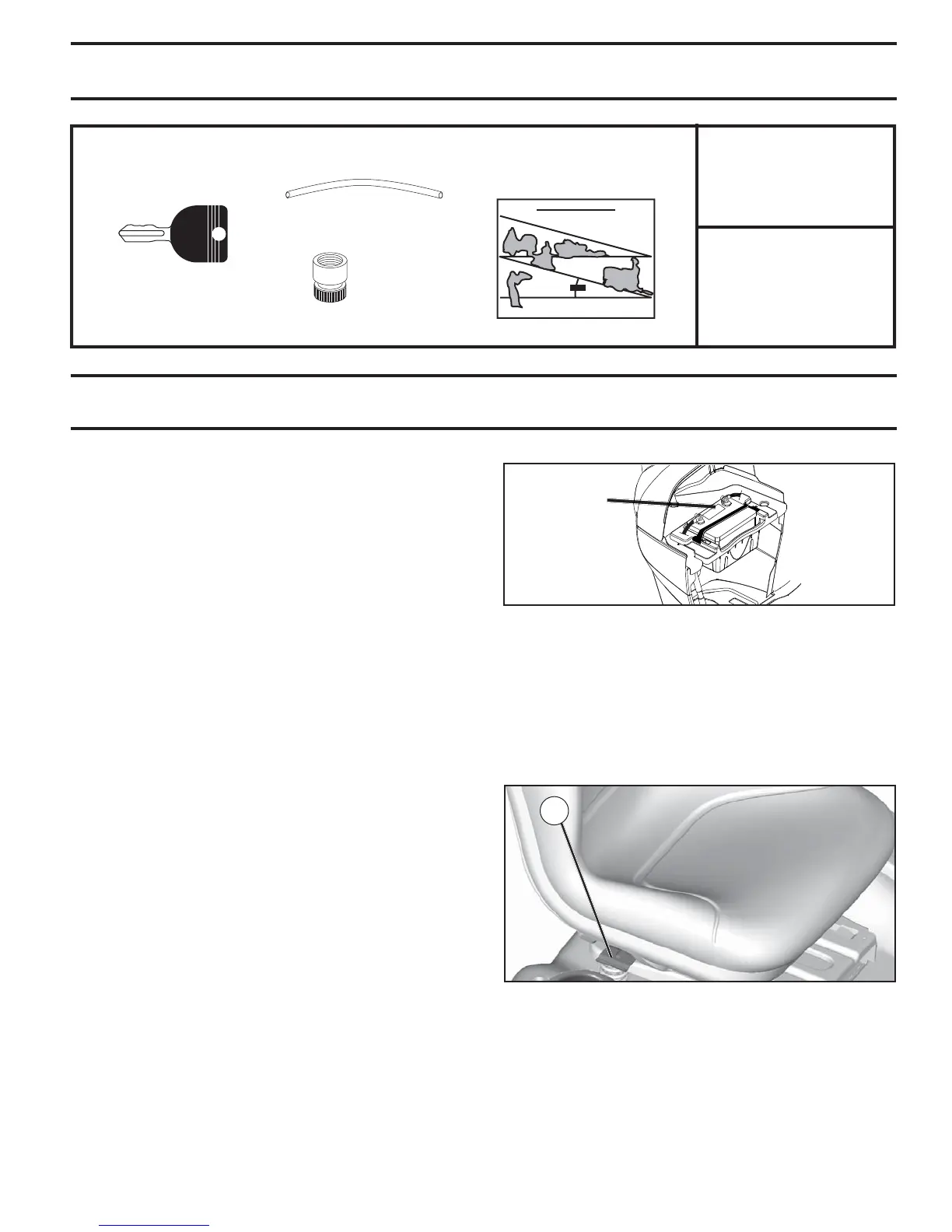

UNASSEMBLED PARTS
Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
ADJUST SEAT (See Fig. 2)
• Sit in seat.
• Lift up adjustment lever (A) and slide seat until a com-
fortable position is reached which allows you to press
clutch/brake pedal all the way down.
• Release lever to lock seat in position.
Fig. 2
A
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Stan dard
wrench sizes are listed.
(1) 1/2" wrench Tire pressure gauge
(2) 7/16" wrenches Utility knife Pliers
When right or left hand is mentioned in this man ual, it means
when you are in the operating po si tion (seated be hind the
steer ing wheel).
Fig. 1
ASSEMBLY
Key(s)
Slope SheetKeys
(1) Quick
Connect
(1) Oil Drain Tube
*Installed by Dealer
*Brush Guard Kit
Also included
Mulch Kit
TO REMOVE TRACTOR FROM CARTON
UNPACK CARTON
• Remove all accessible loose parts and parts cartons
from carton.
• Remove end panels and lay side panels flat.
• Check for any additional loose parts or cartons and
remove.
BEFORE REMOVING TRACTOR FROM
SKID
CHECK BATTERY (See Fig. 1)
• Lift hood to raised position.
NOTE: If this battery is put into service after month and
year indicated on label (label is located between terminals)
charge battery for minimum of one hour at 6-10 amps. (See
"BATTERY" in the Maintenance section of this manual for
charging instructions.)
• For battery and battery cable installation see "REPLAC-
ING BATTERY" in the Service and Adjustments section
in this manual.
LABEL
