OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.
Our tractors conform to the applicable safety standards of the American National Standards Institute.

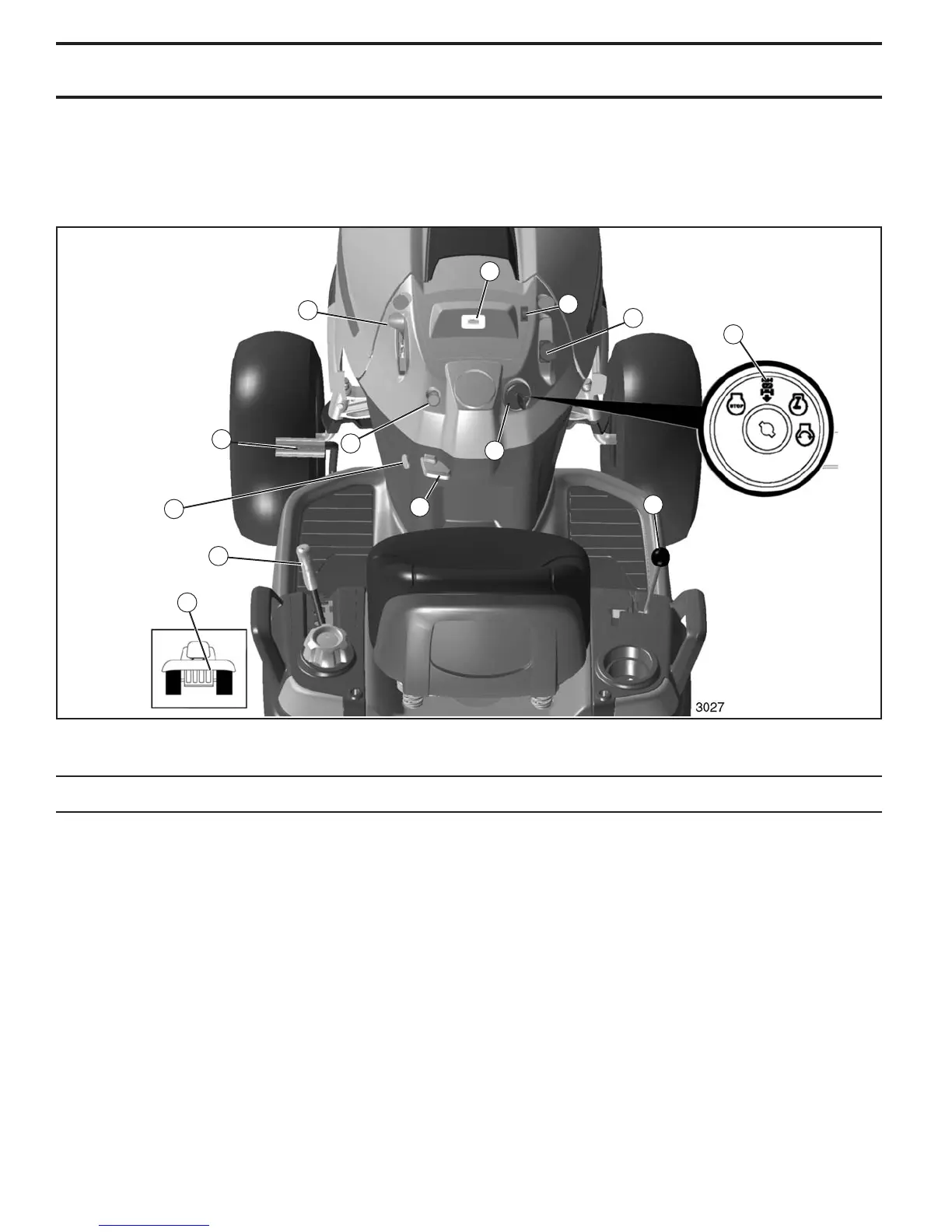

FIG. 3
(A) ATTACHMENT LIFT LEVER – Used to raise and lower
the mower or other attachments mounted to your trac tor.
(B) CLUTCH/BRAKE PEDAL – Used for declutching and
brak ing the tractor and starting the engine.
(C) PARKING BRAKE – Locks clutch/brake pedal into the
brake position.
(D) THROTTLE CONTROL – Used to control engine
speed.
(E) ATTACHMENT CLUTCH SWITCH – Used to engage
the mow er blades, or other at tach ments mounted to your
tractor.
(F) IGNITION SWITCH – Used for starting and stopping
the engine.
(G) REVERSE OPERATION SYSTEM (ROS) "ON" PO-
SITION – Allows operation of mower or other powered
attachment while in reverse.
(H) LIGHT SWITCH – Turns the headlights on and off.
(J) MOTION CONTROL LEVER - Selects the speed and
di rec tion of the tractor.
(M) FREEWHEEL CONTROL – Disengages transmission
for pushing or slowly tow ing the trac tor with the engine
off.
(N) CHOKE CONTROL – Used when starting a cold
engine.
(P) SERVICE REMINDER / HOUR METER – Indicates when
service is required for the engine and mower.
(Q) 12-VOLT POWER PORT – Used for 12-volt acces-
sories.
