REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150E), PRODUCT NO. 954 14 00-07

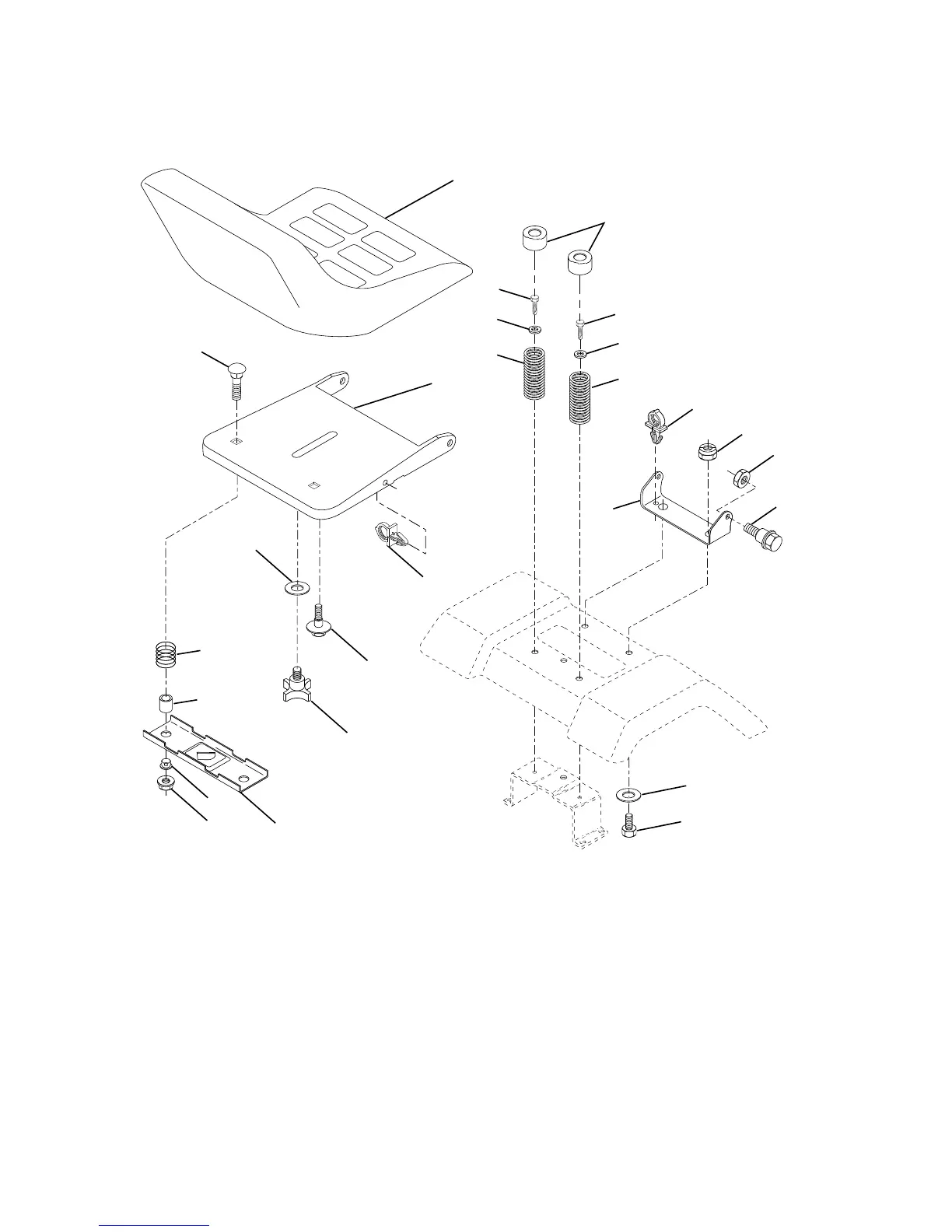

SEAT ASSEMBLY
38
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532140839 Seat
2 532140551 Bracket Pivot Seat 8 720
3 874760616 Bolt Fin Hex 3/8-16unc X 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817490616 Screw Thdrol 3/8-16 X 1 Ty-tt
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532155925 Pan Seat
11 532120068 Knob Seat 1/2-13 Unc Blk
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532134300 Spacer Split 28x 96 Yel Zinc
16 532121250 Spring Cprsn 1 27 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
18 532124238 Cap Spring Seat
21 532153236 Bolt Shoulder 5/16-18 Unc
22 873800500 Nut Hex Lock W/Ins 5/16-18
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
18
11
2
6
22
21
5
10
5
14
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
