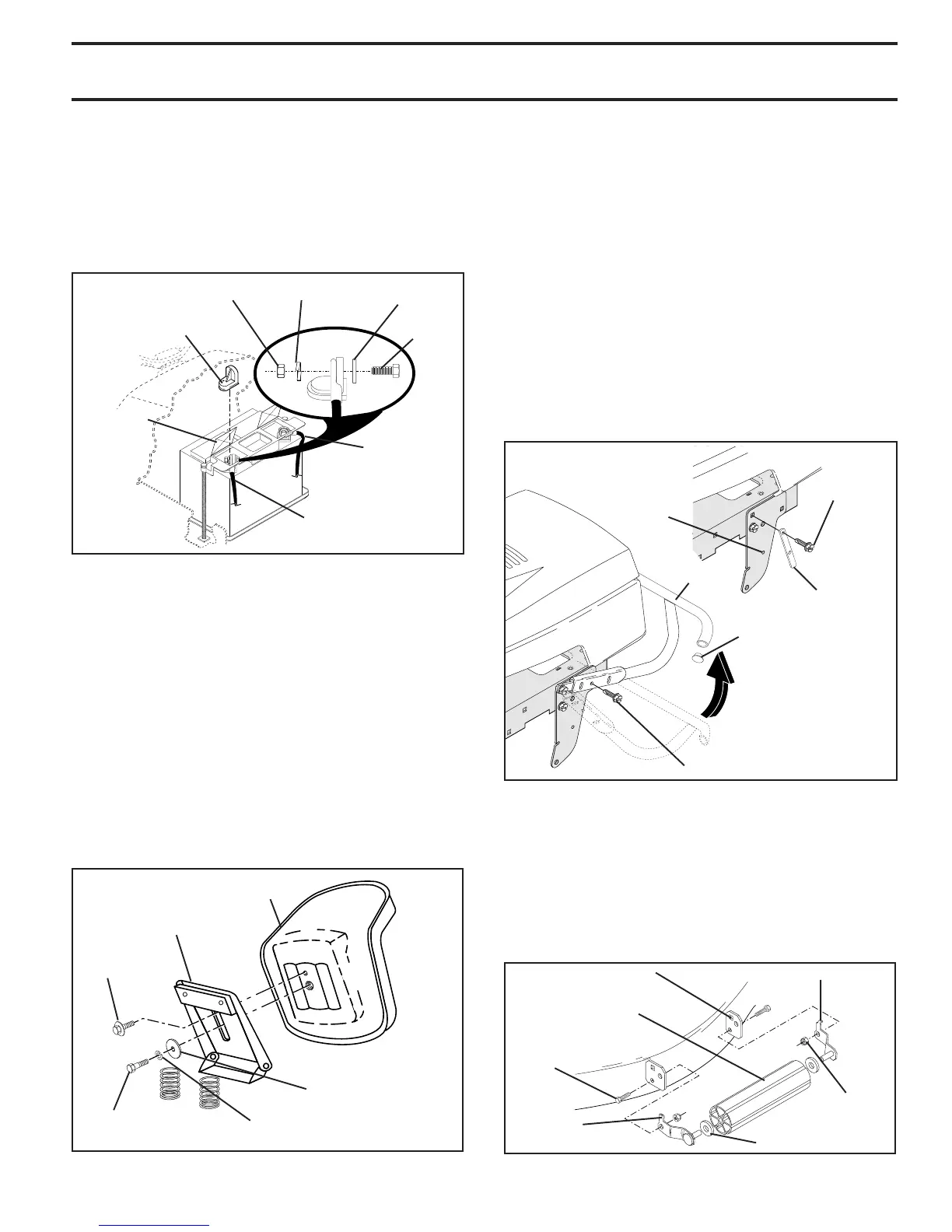

ASSEMBLY
7
FIG. 3
FIG. 4
TERMINAL
ACCESS
DOOR
POSITIVE
(RED)
CABLE
NEGATIVE
(BLACK)
CABLE
FIG. 2
HEX
BOLT
FLAT
WASHER
DISCARD TERMINAL
PROTECTIVE CAPS
LOCK
WASHER
HEX NUT
• Close terminal access doors.
Use terminal access doors for:
• Inspection for secure connections (to tighten hard-
ware).
• Inspection for corrosion.
• Testing battery.
• Jumping (if required).
• Periodic charging.
INSTALL SEAT (See Fig. 3)
Adjust seat before tightening adjustment bolt.
• Remove cardboard packing on seat pan.
• Place seat on seat pan and assemble shoulder bolt.
• Assemble adjustment bolt, lock washer and flat washer
loosely. Do not tighten.
• Tighten shoulder bolt securely.
• Lower seat into operating position and sit on seat.
• Slide seat until a comfortable position is reached which
allows you to press clutch/brake pedal all the way
down.
• Get off seat without moving its adjusted position.
• Raise seat and tighten adjustment bolt securely.
ADJUSTMENT
BOLT
FLAT WASHER
LOCK WASHER
SHOULDER
BOLT
SEAT
SEAT PAN
TO ATTACH NOSE ROLLER (See Fig. 5)
• Position brackets, 17/32 x 7/8 x 16 gauge washers, and
nose roller between deck mounting brackets as shown.
Be sure to position brackets on correct side, as shown.
• Install 3/8-16 x 1 hex bolts and 3/8-16 crownlock nuts
as shown. Tighten hardware securely.
NOTE: Be sure bracket tabs are positioned in tab holes in
deck brackets.
FIG. 5
NOSE ROLLER
“B”
BRACKET
TAB
WASHER
TAB HOLE
CROWNLOCK
NUT
“A” BRACKET TAB
HEX
BOLT
TO ATTACH FRONT BUMPER (See Fig. 4)
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting bumper to
tractor.
• Press or tap the end caps into ends of bumper tube.
• The existing top screw and the existing front screw
must be removed from both sides.
• On both sides of chassis, position extension bracket as
shown and loosely assemble to rear chassis hole with
supplied 3/8-16 x 1-1/4 screw. Do not tighten the
brackets. Allow them to hang from the chassis.
• Position bumper and extension brackets so brackets
can be slid inside flattened ends of bumper.
• Slide bumper onto brackets and pivot upwards to align
center holes in extension brackets and tractor chassis.
• With holes aligned, install additional screws.
• Tighten all four (4) screws securely.
Slide Bumper onto
Extension Brackets
and Pivot Upwards
FRONT SCREW
BUMPER
FRONT
SUSPENSION
BRACKET
EXTENSION
BRACKET
TOP
SCREW
END CAP
