OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.

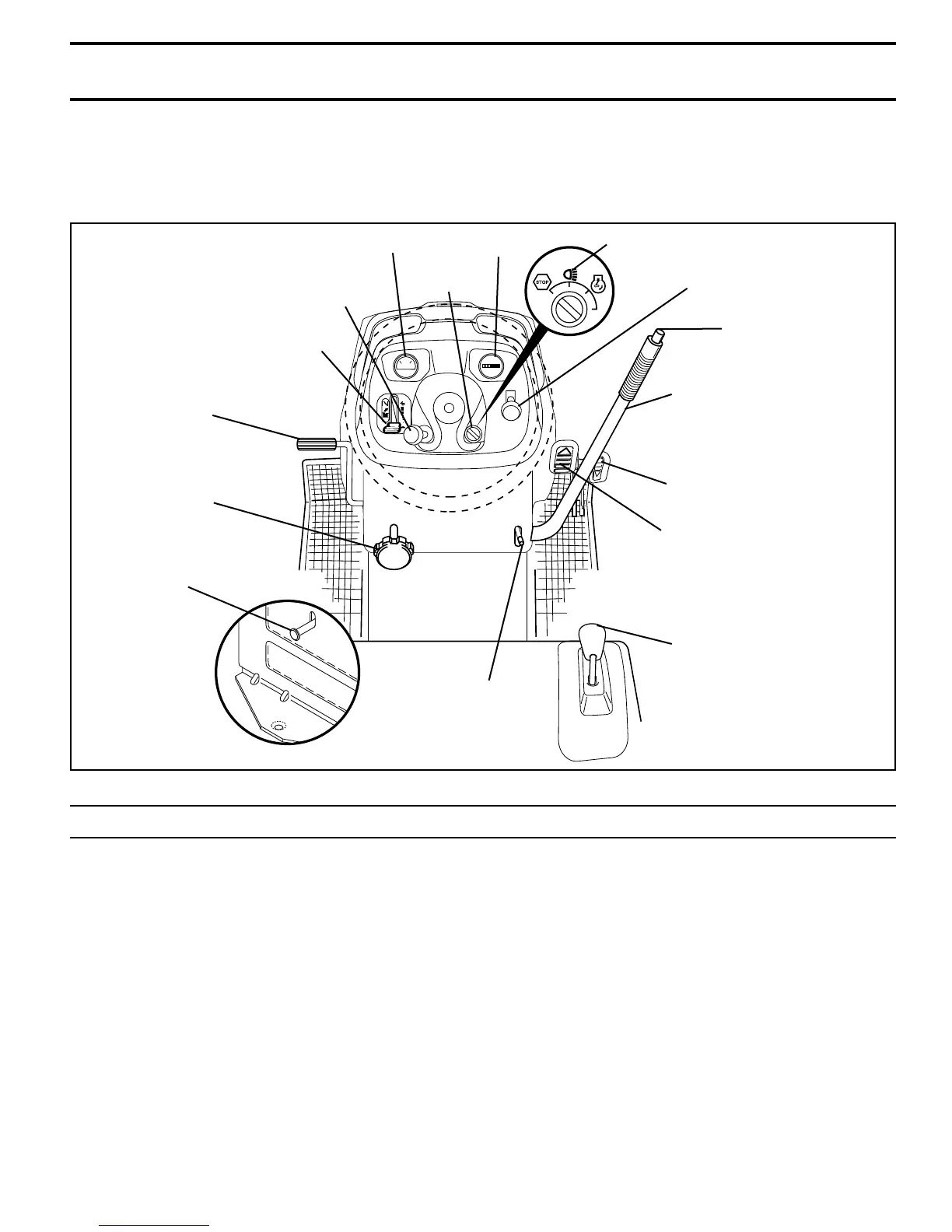

FIG. 5
Our tractors conform to the safety standards of the American National Standards Institute.
ATTACHMENT CLUTCH SWITCH - Used to engage the
mow er blades, or other attachments mounted to your
tractor.
LIGHT SWITCH POSITION - Turns the headlights on.
THROTTLE CONTROL - Used to control engine speed.
CHOKE CONTROL - Used when starting a cold engine.
FREE WHEEL CONTROL - Disengages transmission for
pushing or slowly towing the tractor with the engine off.
BRAKE PEDAL - Used for braking the tractor and starting
the engine.
HEIGHT ADJUSTMENT KNOB - Used to adjust the mow er
cutting height.
AMMETER - Indicates charging (+) or discharging (-) of
battery.
HOURMETER - Indicates hours of operation.
PARKING BRAKE - Locks clutch/brake pedal into the
brake position.
ATTACHMENT LIFT LEVER - Used to raise and lower
the mower deck or other attachments mounted to your
trac tor.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
IGNITION SWITCH - Used for starting and stopping the
engine.
FORWARD DRIVE PEDAL - Used for forward movement
of tractor.
REVERSE DRIVE PEDAL - Used for reverse movement
of tractor.
CRUISE CONTROL LEVER - Used to set forward move-
ment of tractor at desired speed without holding the forward
drive pedal.
BRAKE
PEDAL
THROTTLE
CONTROL
PARKING BRAKE
ATTACHMENT
LIFT LEVER
LIFT LEVER
PLUNGER
LIGHT SWITCH
POSITION
IGNITION
SWITCH
FREEWHEEL
CONTROL
AT TACH MENT
CLUTCH SWITCH
HEIGHT
ADJUSTMENT
KNOB
AMMETER
CHOKE
CONTROL
CRUISE CON TROL LEVER
FORWARD DRIVE PEDAL
REVERSE DRIVE PEDAL
HOURMETER
