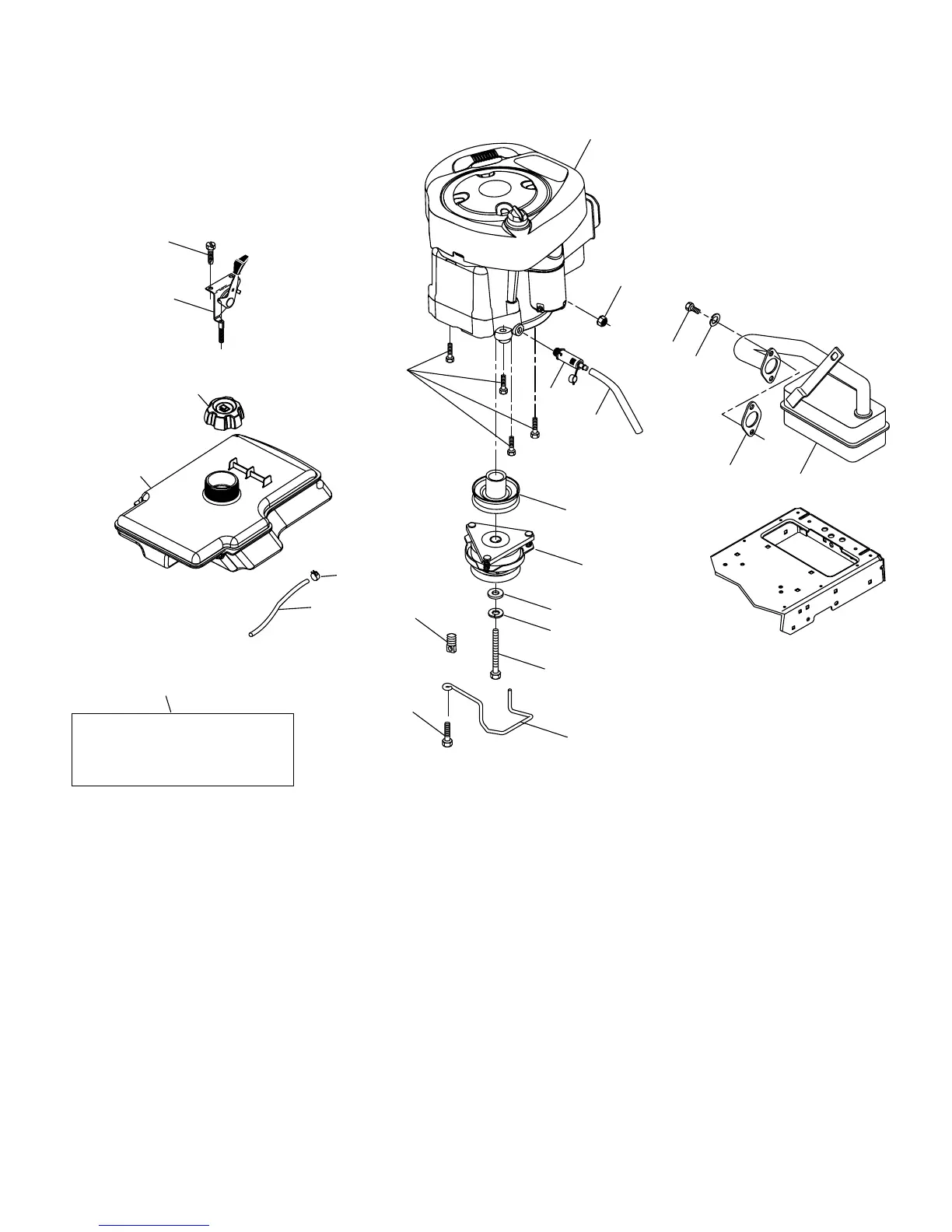

TRACTOR - - MODEL NUMBER YTH20B42T (96043002002), PRODUCT NO. 960 43 00-20
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
1 - - - - - - Engine B&S Model No. 31P977
2 532 13-73-52 Muffl er
9 532 19 43-20 Keeper Belt Engine
11 532 18 05-05 Clutch Ogura
12 532 40 50-97 Pulley Engine
15 532 19 70-24 Tank Fuel
18 532 19 59-51 Cap Asm
20 532 40 15-08 Control Throttle
28 532 40 11-35 Fuel Line
29 532 13 71-80 Spark Arrester Kit
31 532 14 50-06 Clip Push-In Hinged
34 817 72 04-08 Screw thd Cut 1/4-20 x 1/2
35 810 01 05-00 Washer Split
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw Socket Head 5/16-18 x .75
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
88 817 00 06-16 Screw 3/8-16 x 1
KEY PART
NO. NO. DESCRIPTION
34
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
engine-bs-1cyl-tex_21
12
11
41
42
85
9
88
31
84
45
1
81
82
69
2
79
35
