Battery
INDEX NO. PART NO. QTY DESCRIPTION
1 769356 2 CS .250-20 X 4.25 HX G5 Z
2 768515 2 FW .281 X .625 X .051/.080H
3 348417 1 BATTERY CLAMP STRAP
4 055939 2 CS .250-20 X .750 HX G5
5 029868 4 LW .250 INT-EXT TOOTH Z
6 024927 2 NT .250-20 HX GR.5 ZNYC
7 771428 1 BATTERY CBL BOOT-RED
8 601982 2 CN .250-20 X .150 MAX THK
NOTES:
1. When performing service on mower, disconnect battery ground cable
and do not reconnect to battery until engine is ready to be started. See
Operator’s Manual.
2. Route battery cables as shown in Fig. 1.
NEGATIVE
BATTERY
CABLE
POSITIVE
BATTERY
CABLE

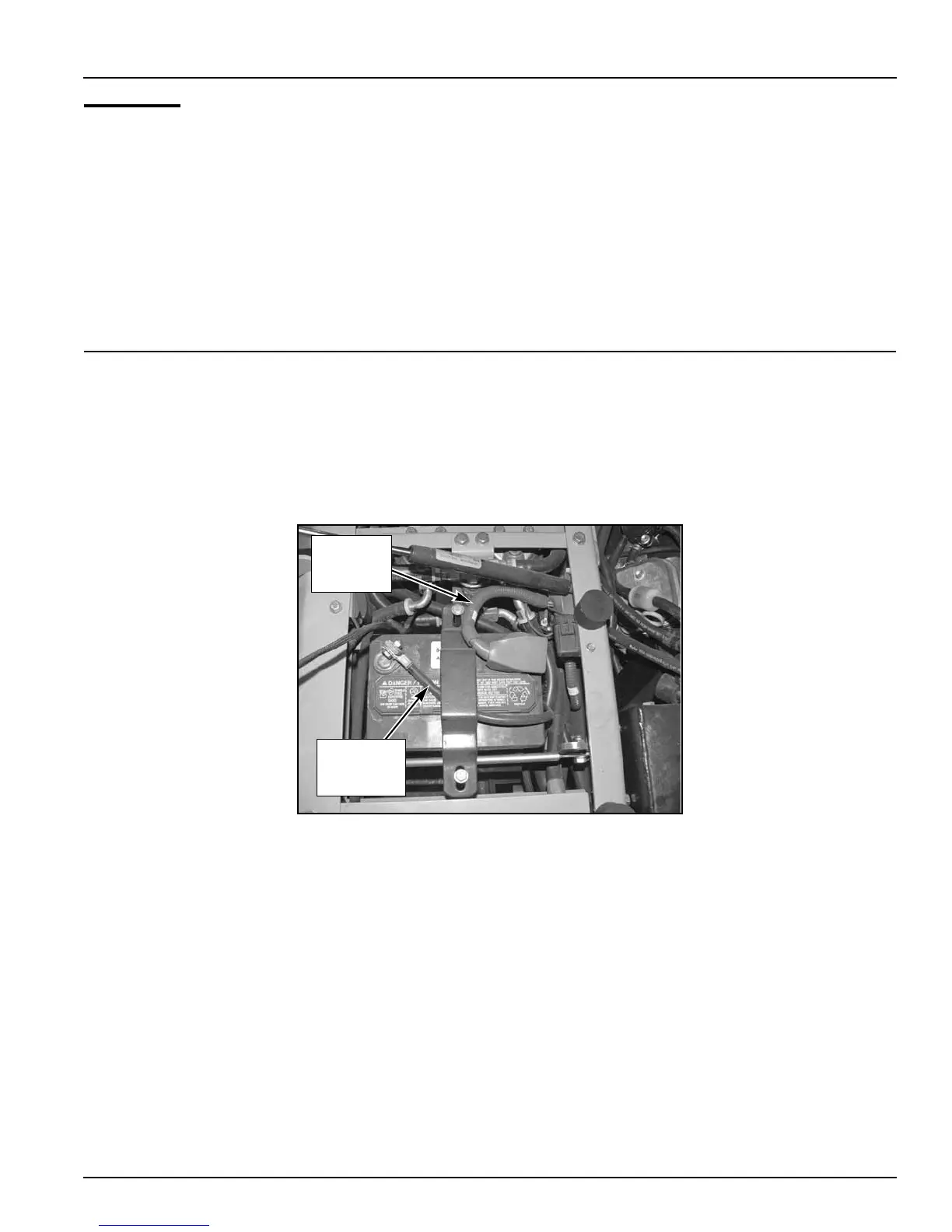

FIG. 1
