600876_0706

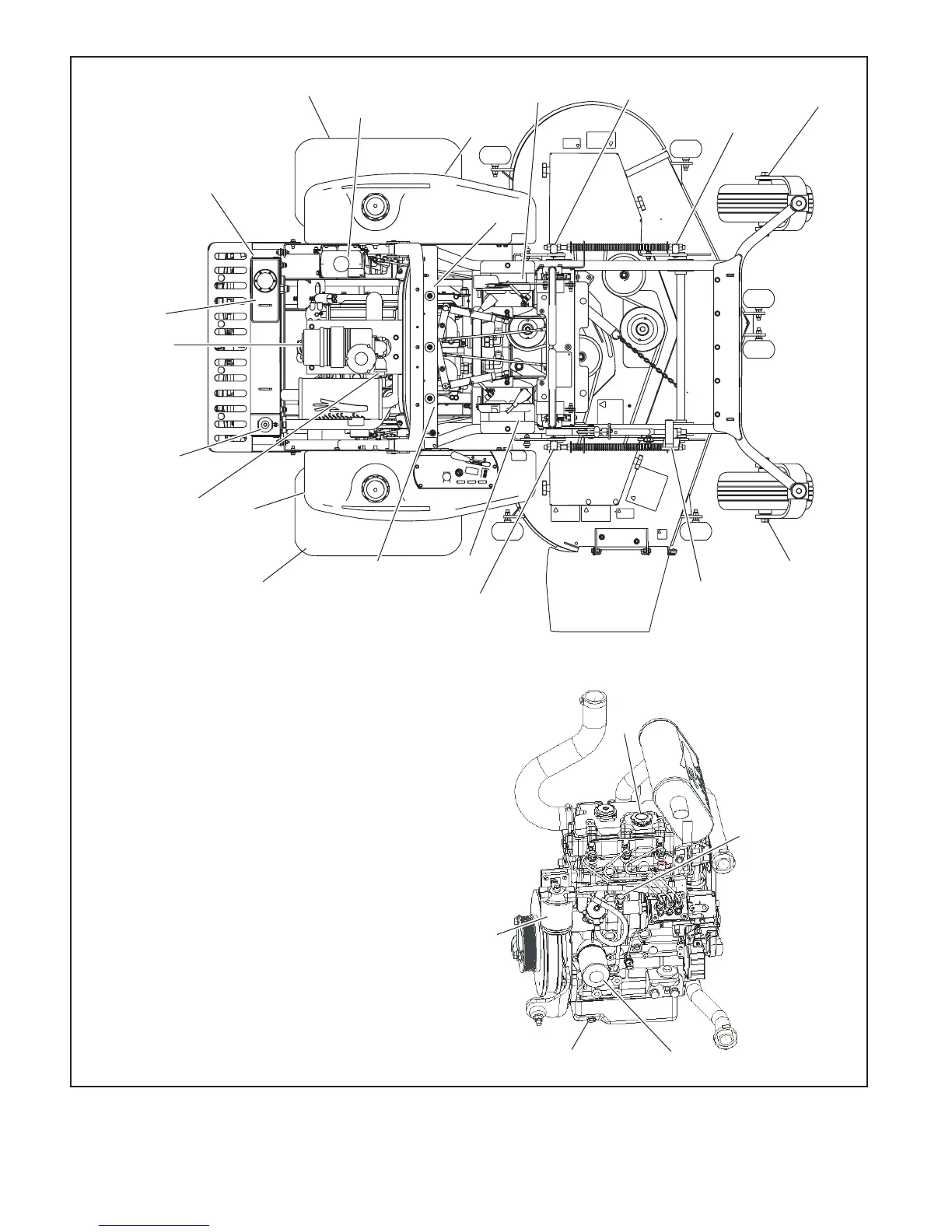

Figure 4-18
3
8
8
10
6
11
13
5
5
6
12
7
10
10
10
11
12
14
15
1
16
2
9
4
1. Engine Oil Fill
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Gauge Wheel Bearing Zerks (2)
9. Engine Oil Filter
10. Deck Height Pivot Zerks (4)
11. Park Brake Switch
12. Drive Tire
13. Hydraulic Oil Heat Exchanger
14. Coolant Recovery Tank
15. Radiator Cap
16. Engine oil dipstick
17. Air cleaner service indicator
17
Super Z Diesel Maintenance
Locator Chart
32
