HUSTLER ATZ - Super Z Diesel Maintenance Locator Chart

8
8
2
2
11
6
6
6
5
4
7
3
1. Deck Idler Zerk (1)
2. Deck Pusher Arm Zerks (2)
3. Hydraulic Oil Filter
4. Pump Idler Zerk (1)
5. Deck Belt
6. Spindle Housing Zerk (3)
7. Pump Belt
8. Blades

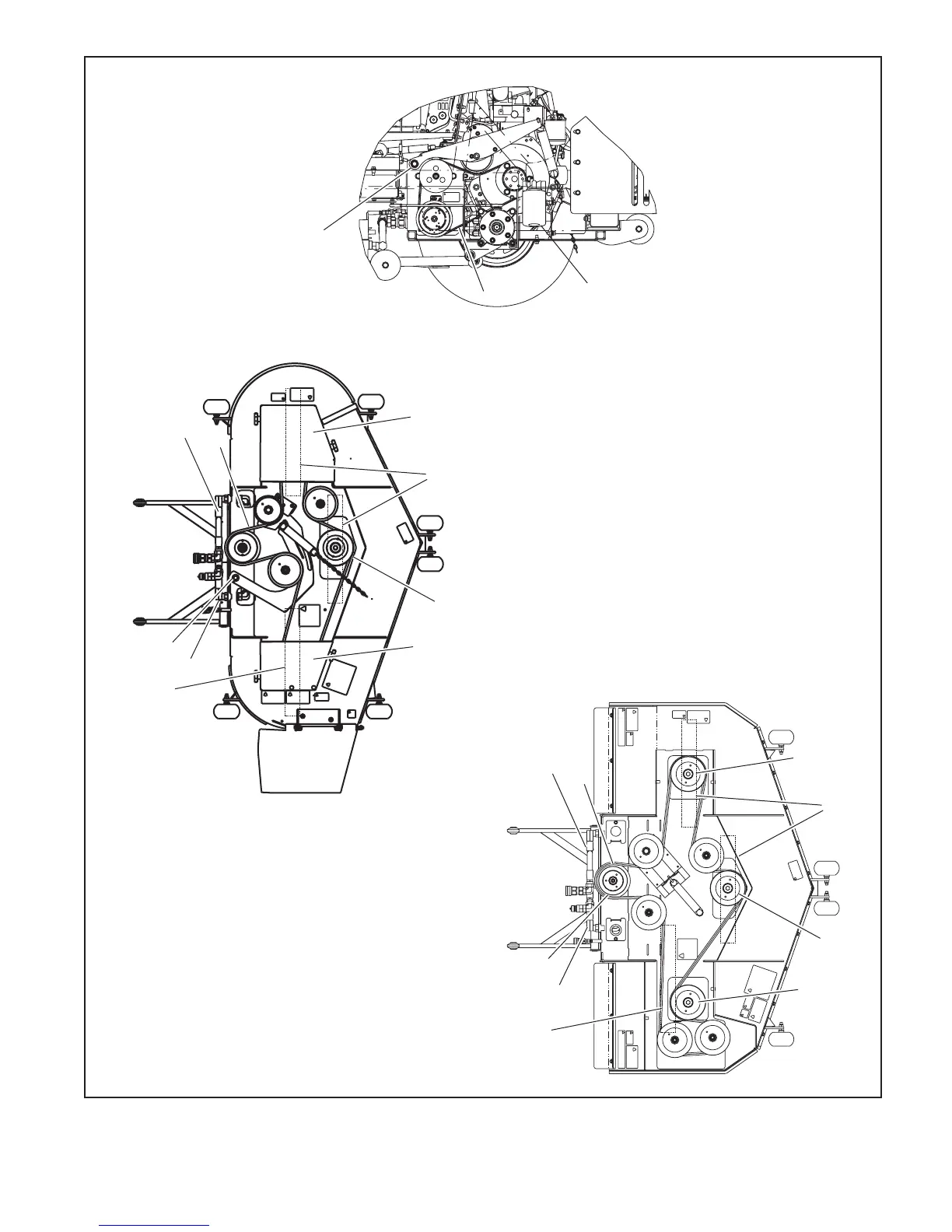

Figure 4-19
8
8
2
2
11
6
6
6
5
Side discharge deck
Rear discharge deck
Super Z Diesel Maintenance
Locator Chart
33
600876_0706
