Inspect the area prior to being mowed for proper overhead
clearance (tree limbs, guy wires, doorways, etc).
Do not contact any overhead object with the ROPS.
Inspect the seat belt system (all seat, seat belt parts, seat pan
and seat pan latch) daily prior to mowing for signs of any
damage. These parts should be replaced if any parts indicate
signs of:
1. cuts
2. fraying
3. extreme or unusual wear
4. significant discoloration due to UV exposure
5. dirt or stiffness
6. abrasion to the seat belt webbing
7. damage to the buckle, latch plate or hardware.
8. or any other problem
If the seat belt is to be cleaned, use soap and water. Do not use
carbon tetrachloride, naphtha, etc., as these will weaken the
webbing. For the same reason, do not bleach or dye the
webbing. Replace seat belt if worn or damaged.
Possible damage to the ROPS
If the unit has rolled over or the ROPS has been in some other
type of accident (such as hitting an overhead object during
transport), the ROPS must be replaced to retain the best
protection.
Following an accident, check the ROPS, the operator’s seat,
the seat belt, seat belt mountings and seat latch for possible
damage. Before operating the machine, replace all damaged
parts.
IMPORTANT: Do not attempt to weld or straighten the
ROPS.
Driving the mower
After starting engine, engage the steering control levers and
steer as follows:
To go forwa rd, push steering control levers forward an equal
distance (Figure 3-8).
To go in reverse, pull steering control levers rearward an
equal distance (Figure 3-8).
To turn left, move the right steering control lever farther
forward from neutral than the left steering control lever.(Figure
3-8)
To turn right, move the left steering control lever farther
forward from neutral than the right steering control lever.
(Figure 3-8)
Zero radius turn, move one steering control lever forward
and the other steering control lever back of neutral. This will
allow the drive wheels to counter-rotate. (Figure 3-8)
To stop or decrease speed, move steering control levers to
neutral. When going forward pull back gently on steering
Figure 3-7
Never operate the mower without the ROPS. Always
wear your seat belt when operating this mower.
Always pull from the mower hitch. Do not attach chains
or ropes to the ROPS for pulling purposes, as the machine
can tip backwards.

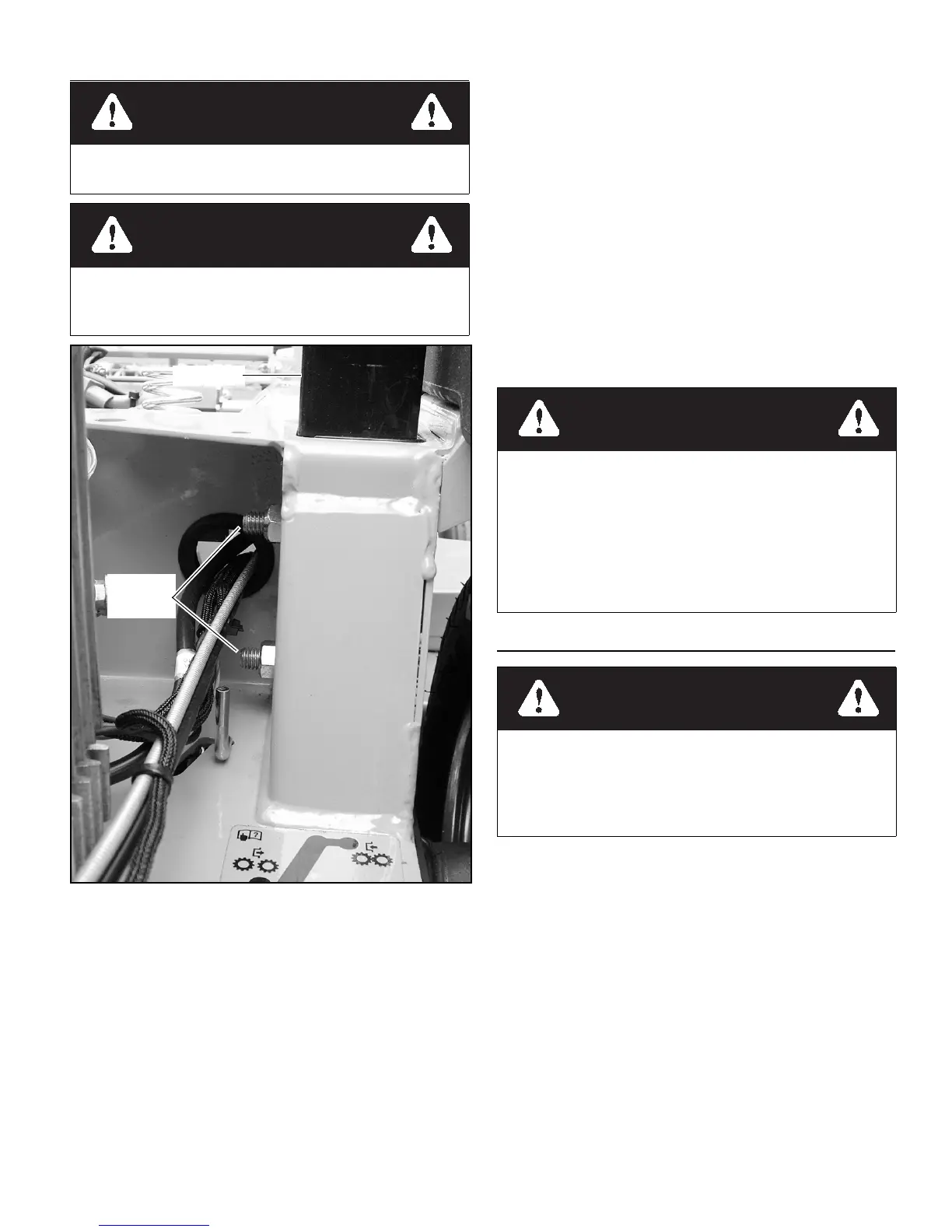

ROPS
mounting
bolts
ROPS post
The ROPS structure’s protective capability may be
impaired by structural damage, overturn or altera-
tion. Do not remove or alter any of the ROPS parts. Do
not attempt to weld or straighten ROPS. Failure to adhere
to these instructions could result in severe injury or death.
If the ROPS or cab is replaced, make sure that the proper
hardware is used and the recommended torque values are
applied to the attaching bolts.
Never make sudden stops or reverse direction, especially
when maneuvering on a slope. The steering is designed
for sensitive response. Rapid movement of the control
levers in either direction could result in a reaction of the
mower that can cause serious injury.
