HUSTLER FasTrak SD Service Manual

114242 5-3 REV B

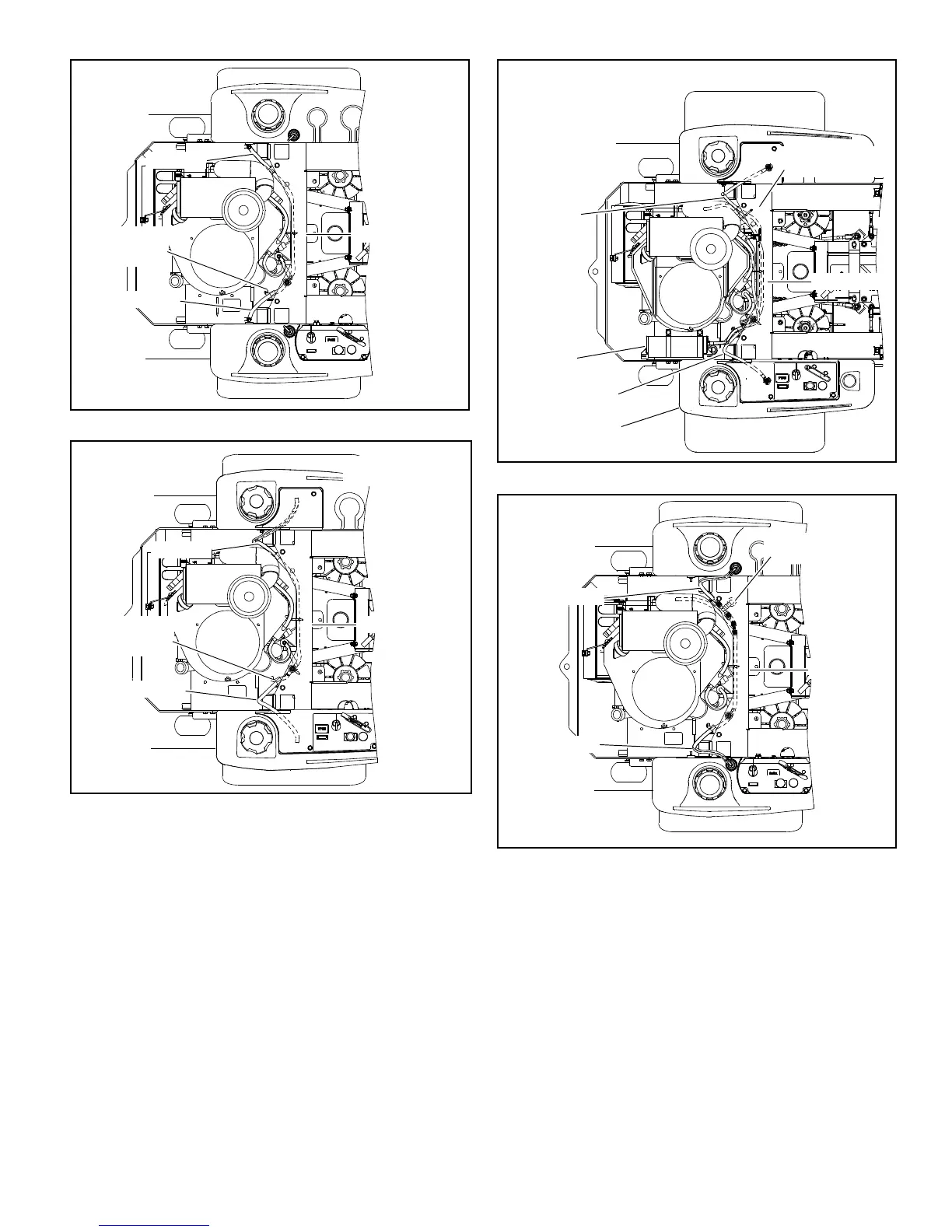

fuel tank to the engine’s vapor port. Figure 5-8, Figure 5-9 &
Figure 5-10
NOTE: Mowers produced after serial number 12050900 and
with an EX or CE extension after the model number do not have
a fuel evaporation system.
Figure 5-6
Figure 5-7
Fuel line
Fuel
shutoff
valve
Fuel
tank
Fuel
tank
Fuel line
Seat support
Mowers without
fuel gauge
Fuel line
Fuel
shutoff
valve
Fuel
tank
Fuel
tank
Fuel line
Seat support
Mowers with fuel
gauge
Figure 5-8
Figure 5-9
Fuel
tank
Fuel
tank
Seat support
Vapor line
Mowers with fuel gauge and carbon canister
Carbon
canister
Vapor line
Fuel evaporation
system filter
Fuel evaporation
system filter
Fuel
tank
Vapor line
Vapor line
Fuel
tank
Seat support
Mowers without
fuel gauge
