NOTE: The following notes are the same for the different decks shown.
1. Spring length after tensioning new belt. Measured from outside of hook to outside of hook with deck set at 3¼” (8.26cm) cut
height.
2. Route belt as shown.

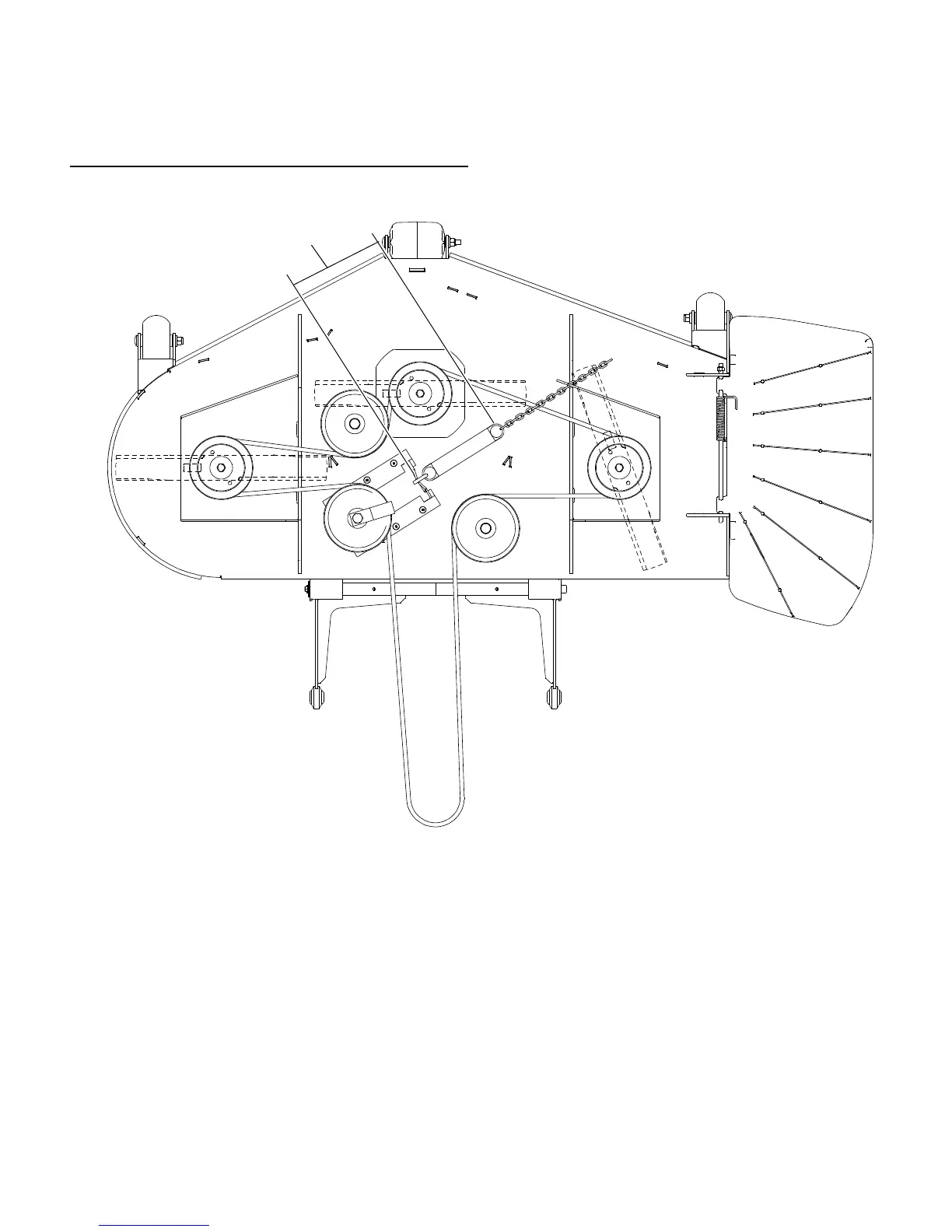

52” & 60” Deck Belt Routing & Tensioning
Figure 7-12
9.3” – 10.3”
(23.6 – 26.2cm)
