9. When both wheels remain stopped, tighten the jam
nuts to lock the turnbuckle in place.
10. Test again by moving the steering control levers
forward and backward before returning them to the
neutral position. If the tires do not rotate, the unit is
ready for operation.
11. After adjusting for neutral it may be necessary to re-
adjust the control lever stop and/or damper.
12.
IMPORTANT: With the engine off, disconnect the two
female spade connectors from each other (from step
#3) and reconnect them to the seat switch. This must
be completed so that the safety circuit is functioning
properly. Figure 6-1
13. Check to make sure all tools or obstructions are
removed from under the mower.
14. Raise the rear of the mower and remove the jack
stands. Lower the mower.
15. Remove the front wheel chocks.
16. Lower and secure the seat platform.
Control Lever Stops
The steering control lever stops (see Figure 6-4 &
Figure 6-5) are designed to do two things: first, and most
important, they must keep the pumps from bottoming out
internally. Secondly, the stops may be adjusted to help drive
straight when the steering control levers are pushed forward
against the stops.
To keep the pumps from bottoming out internally use
the following procedure:
NOTE: This adjustment normally is only required if the
hydraulic pump(s) have been replaced.
1. To make the first adjustment the mower engine must
not be running.
2. Check to make sure the steering control levers are
against the stops before the pumps are bottomed out
internally.

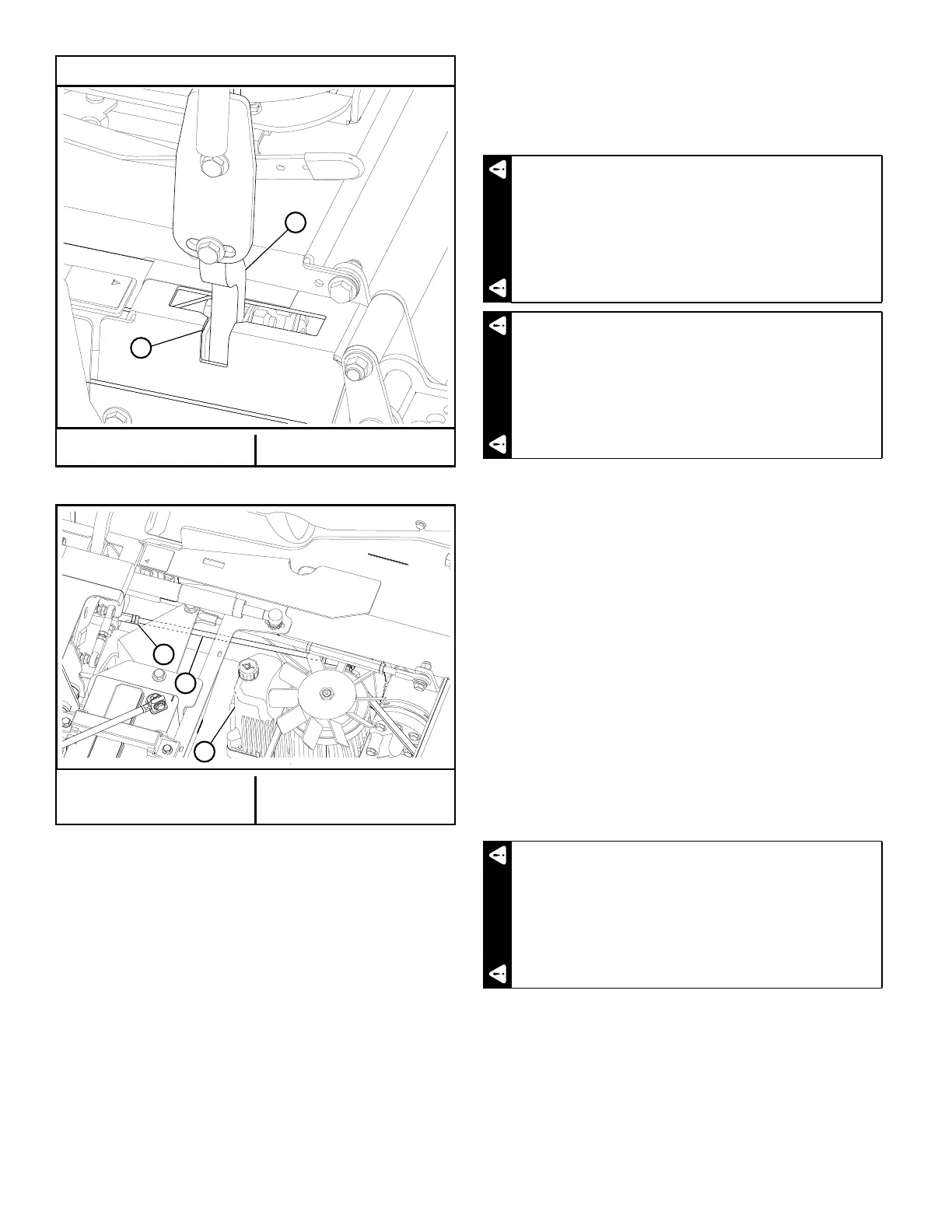

Steering control lever in neutral position
A. Park brake slot B.
Steering control lever
Figure 6-2
A. Jam nut
B.
Pump linkage rod
C.
Pump
Figure 6-3
B
A
C
B
A
Do not operate the mower without plugging the
mower’s wiring harness into the seat switch. This
switch is an important part of the safety start
interlock system. Serious injury can result if the
seat switch is not plugged into the mower’s wiring
harness.
Never operate the mower with a non-functioning
seat switch. Always reconnect the seat switch to the
mower harness.
Pump damage will occur if these stops are set
incorrectly.
WARNINGWARNINGWARNING
