REV C 8-2 123940
6. Adjust the nut on each deck level rod end over the
three blocks so that the deck is sitting on the block
and the nut is on the deck level spacer. Figure 8-3
7. Adjust the last nut of the right rear corner rod so that
the deck level rod end is not loose.
8. Adjust the deck lift assist spring tension by turning the
nut until the spring length from the inside of one hook
to the inside of the other hook matches the length
indicated in the table. Tighten the jam nut once the
distance is set. Figure 8-4
Blades
Mower Blade Maintenance
IMPORTANT: Refer to the Safety section of this manual for
blade handling safety information.
Refer to the Mower Blade Replacement section for blade
removal and installation.

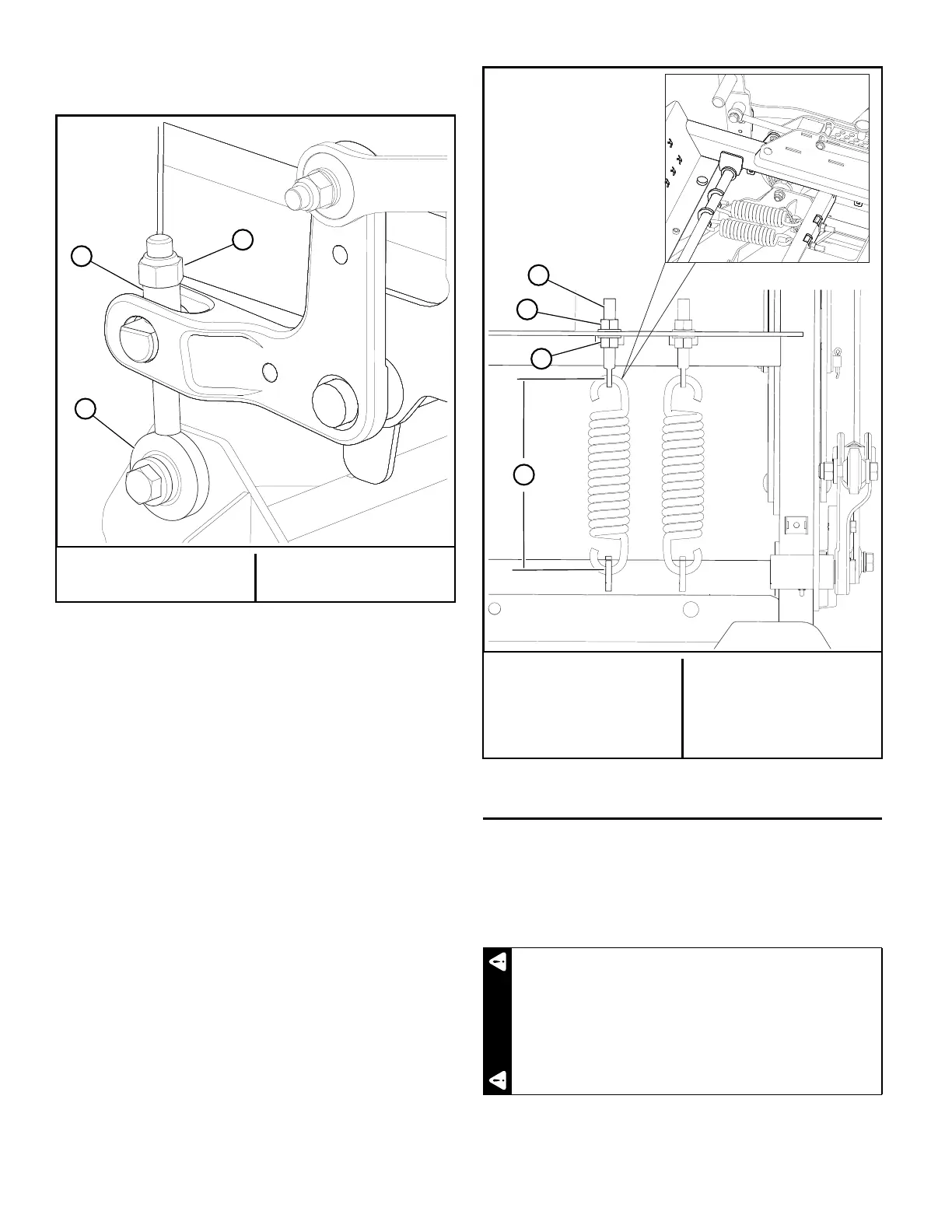

A. Nut
B. Spacer
C. Rod end
Figure 8-3
C
A
B
A. Eyebolt
B. Nut
C. Jam nut
D. Spring length
Deck size – length
52" or 54" – 7.7" ±.1"
60" – 8.0" ±.1"
72" – 8.2" ±.1"
Figure 8-4
Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves and use extra caution
when servicing them.
C
A
B
D
WARNING
