9. To check, move the steering control lever to the
reverse position and release. The steering control lever
should return to the neutral position. If not, repeat
steps 1 through 6.
Steering Control Lever Adjustment
The steering control levers can be adjusted for operator
comfort.
1. Loosen the cap screws that attach the upper control
lever to the lower lever, then pivot the upper control
lever to fit the operator’s personal preference.

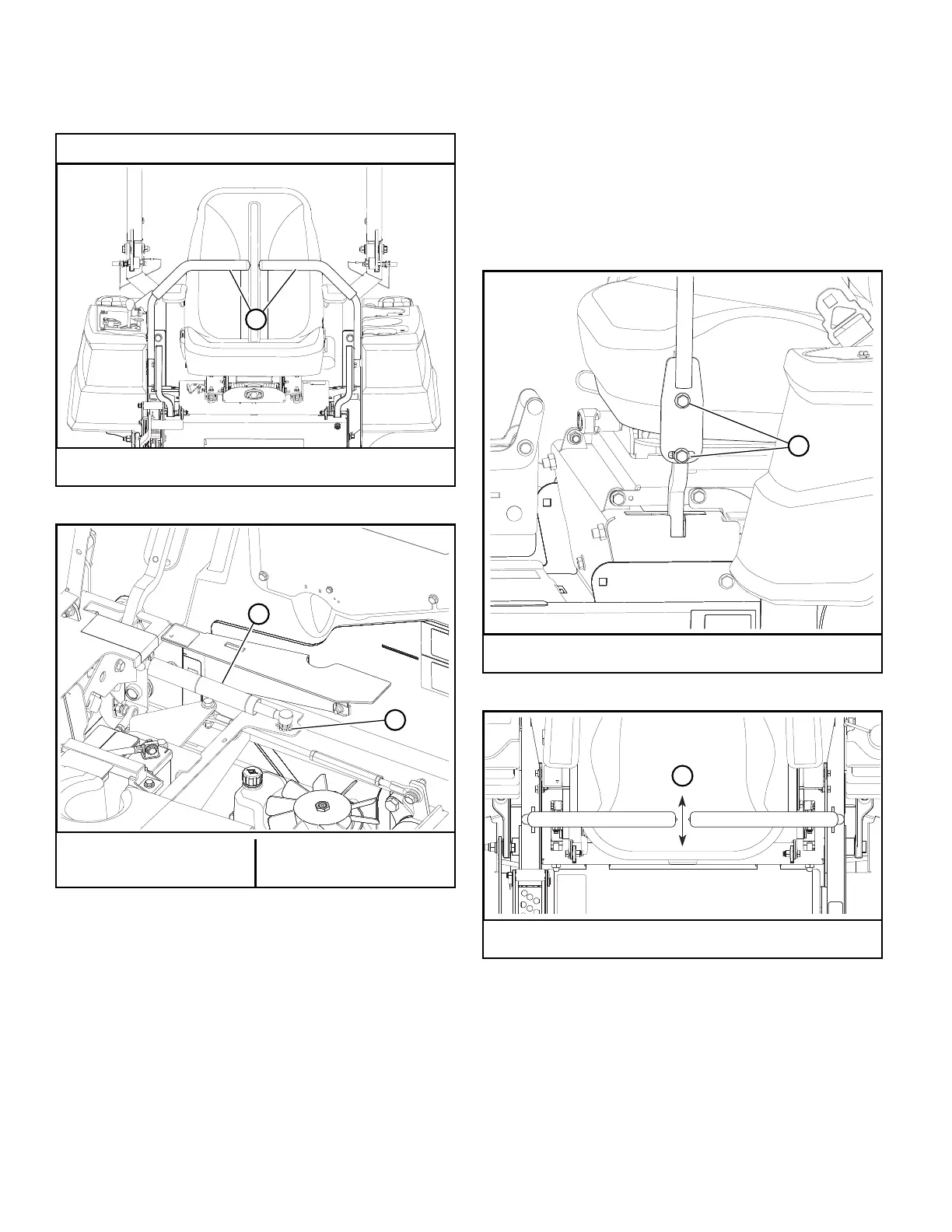

Figure 6-8
2. Adjust the steering control levers so that they align
with each other when in the neutral position.
Figure 6-9
Shown with steering control levers in neutral position
A. Steering control lever
Figure 6-6
A. Steering damper spring
housing
B.
Rear ball stud
Figure 6-7
A
A
B
A. Cap screws
Figure 6-8
A. Align steering handles to within ± .125” (3.175mm)
Figure 6-9
A
A
