The safety element does not require servicing unless it
becomes contaminated with dirt or moisture.
Recommended Service Procedure
1. Release clamps and remove element. Clean the air
cleaner canister with a damp cloth.
2. Before installing a new element, inspect it by placing a
bright light inside and rotating the element slowly,
looking for any holes or tears in the paper. Also check
gaskets for cuts or tears. Do not attempt to use a
damaged element which will allow abrasive particles
to enter the engine.
3. Reinstall the dust cap. Make sure it seals all the way
around the air cleaner canister, then tighten the
clamps. Figure 7-6 & Figure 7-7
4. Check all fittings and clamps periodically for tightness
and inspect hoses for holes or cracks.
5. Periodically check the intake hose for signs of
ingested dust. Locate and repair the source of
ingested dirt.
6. Never operate the machine without an air filter
installed.

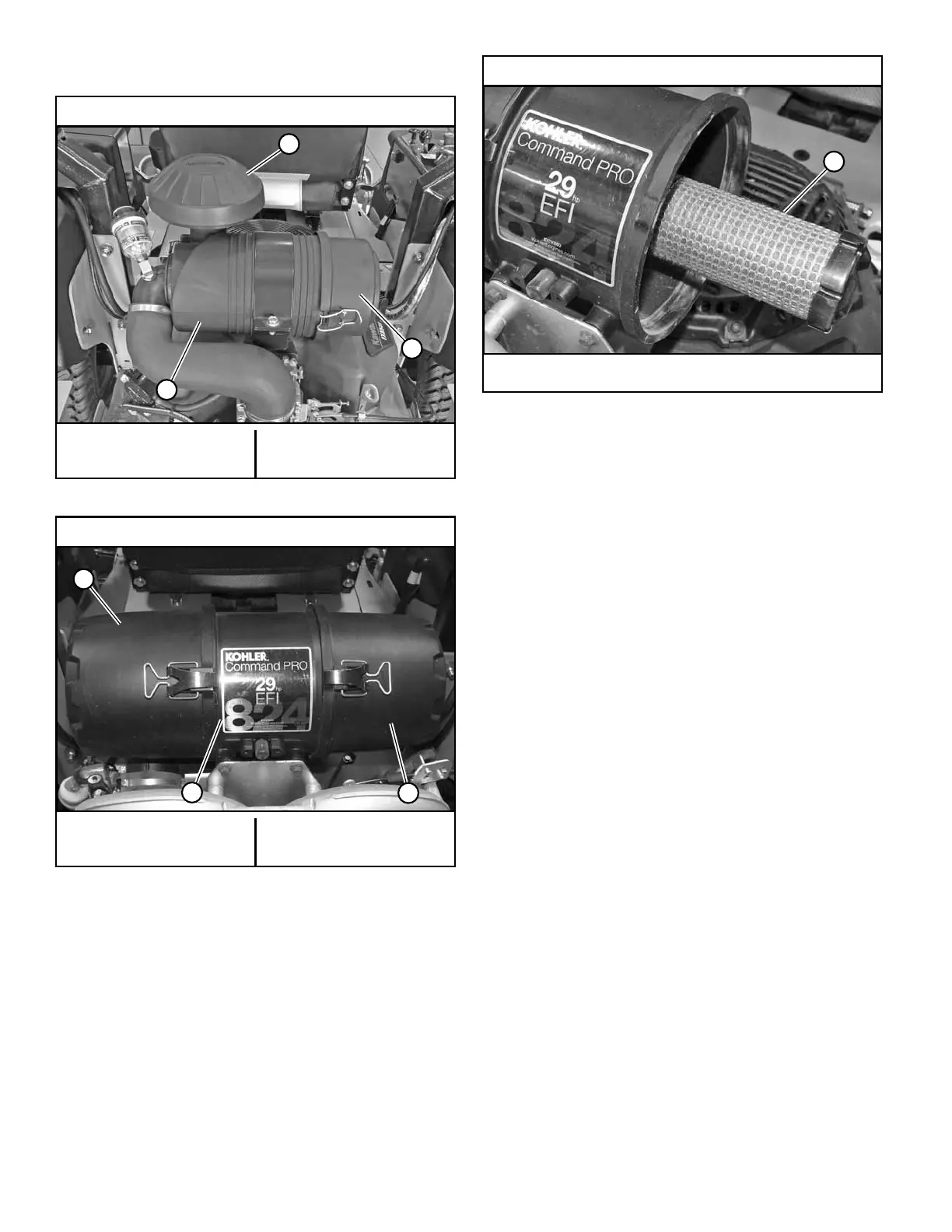

Kawasaki engine shown
A. Pre-cleaner
B. Canister
C. Dust cap
Figure 7-3
Kohler engine shown
A. Pre-cleaner
B. Canister
C. Dust cap
Figure 7-4
A
B
C
A
B
C
Kohler engine shown
A. Safety filter
Figure 7-5
