HUSTLER X-ONE General Service Manual

123940 10-3 REV C

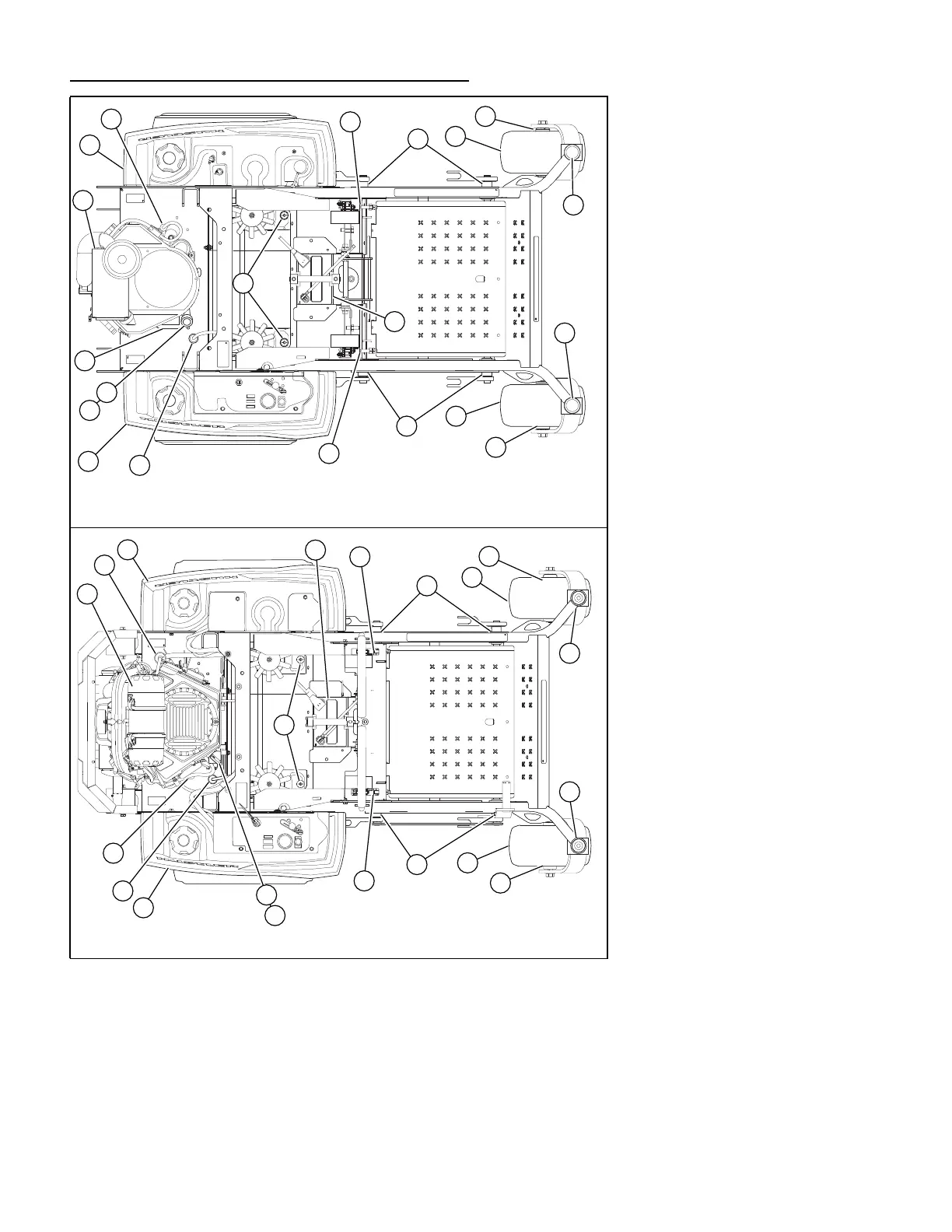

Maintenance Locator Chart
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Valve
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Front Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch
13. Drive Tires
14. Pump Idler Zerk (1)
15. Pump Belt
16. Deck Pusher Arm Zerks (2)
17. Deck Belt
18. Spindle Housing Zerk (3)
19. Blades
20. Fuel Evaporation System Filter
21. Front Wheel Tires
22. Caster Fork Tapered Bearings
Figure 10-1
Figure 10-2
Units with Kawasaki Engines
1
2
3
4
5
6
9
9
10
12
12
11
11
6
21
21
7
20
22
22
Units with Kohler Engines
20
3
5
6
9
9
10
12
12
11
11
6
1
21
21
7
4
2
22
22
