Table 2
Output
kW (240V)
Elements
kW (240V)
Amps
A
Circuit Breaker
A
Wire Size
AWG
DROP 4 4.5 1.5 18.8 30 10
DROP 6 6 2 25 30 10
DROP 9 9 1.5 / 2 37.5 50 6
NB! It is forbidden to use a non-heat-resistant cable with PVC isolation
as the power cable. The joint box must be waterproof and it must be
located up to 19.7 in (50 cm) from the floor.
• Open the cover of the heater’s electrical box.
• Aach the power cable on the terminal block according to the

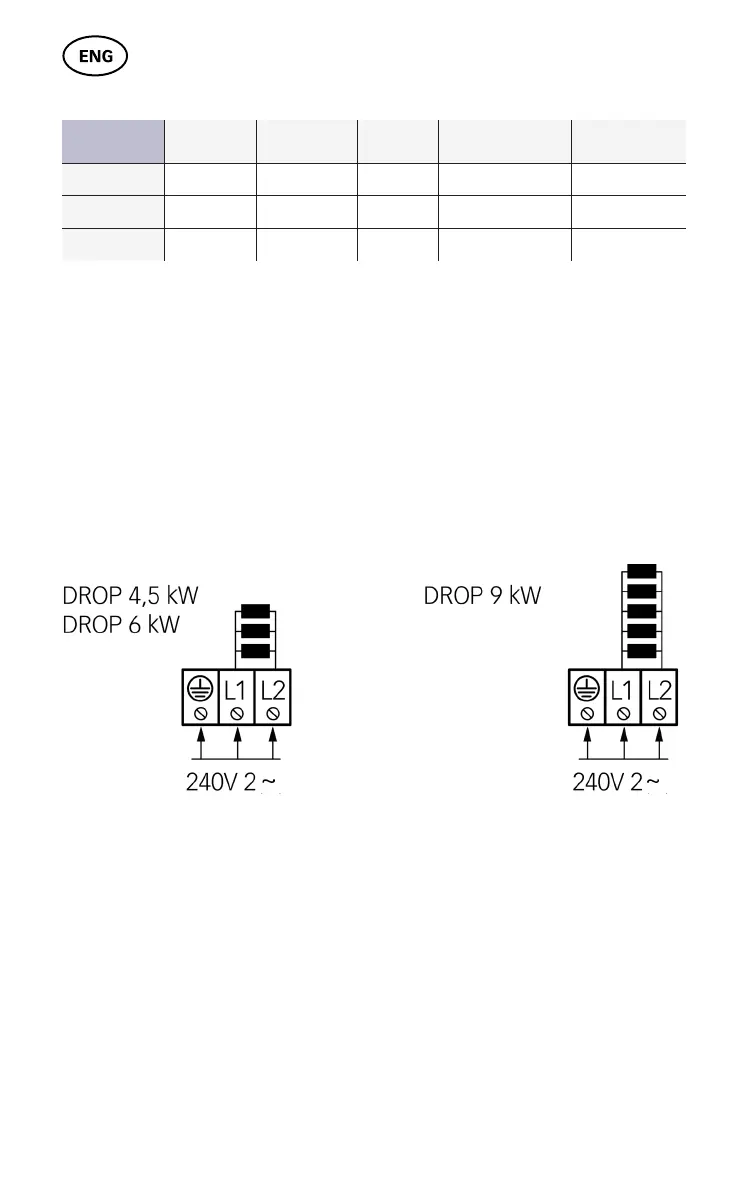

circuit diagram.
• Close the cover.
• Fix the cable on the output with a cable strap.
• Install the heater on the wall frame.
Fiing the stones
Upon stacking the stones, one should monitor that the heating
elements are not bent and that there is a suicient air circulation
around the heater elements.
• Stack the stones sparsely between the heating elements. When
the stones have been stacked too close to each other, the heating
elements may overheat (= shorter useful life) and slow the heating of
the sauna.
