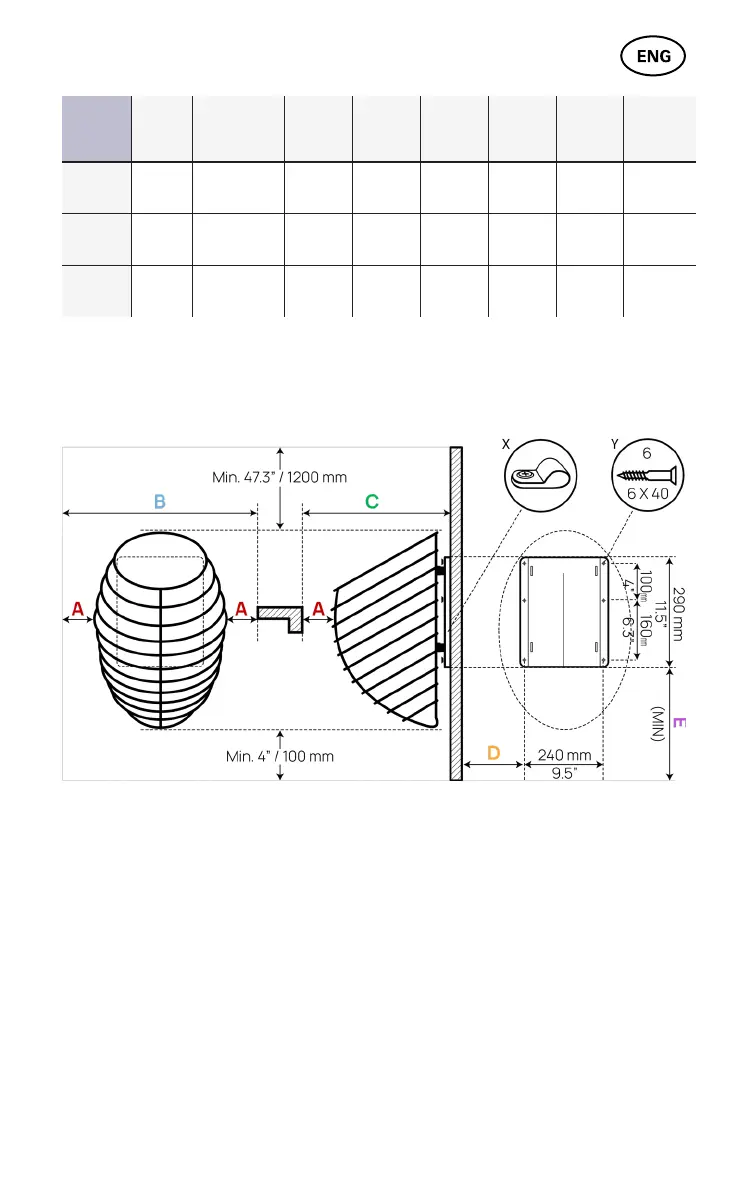

HUUM DROP - Electrical Connection and Wiring

5
Table 1
Out-
put
kW
Room A B C D E MIN
gap
DROP
4
4.5
106-247 ft
3
3–7 m
3
4 in
100 mm
23.3 in
590 mm
17.8 in
450 mm
6.7 in
170 mm
12.2 in
310 mm
47.3 in
1200 mm
DROP
6
6
177-353 ft
3
5–10 m
3
4.8 in
120 mm
24.8 in
630 mm
18.5 in
470 mm
7.5 in
190 mm
12.2 in
310 mm
47.3 in
1200 mm
DROP
9
9
282-530 ft
3
8–15 m
3
5.9 in
150 mm
27.2 in
690 mm
19.7 in
500 mm
8.7 in
220 mm
12.2 in
310 mm
47.3 in
1200 mm
Connecting the heater to the power supply
• A method to disconnect all poles from the mains (a circuit
breaker) must be installed on the power circuit before the sauna
controller.
• Only a certified electrician is allowed to connect the heater to the
power supply.
• The power cable of the heater must meet the requirements of UL
62 in US and CSA 49 in Canada - the minimum temperature rating
of 221°F (105° C).
• The maximum current intensity in the cross-sectional area of the
cable and circuit breaker are listed in Table 2.
• The cable must be secured to the clamp on the cover screw.
