Fundus camera
HFC-1
RE_DATE 2020-06-08
REV R-3 PAGE 7 / 36
Q-I-300-02(R1):2018/06/04 Huvitz Co.,Ltd

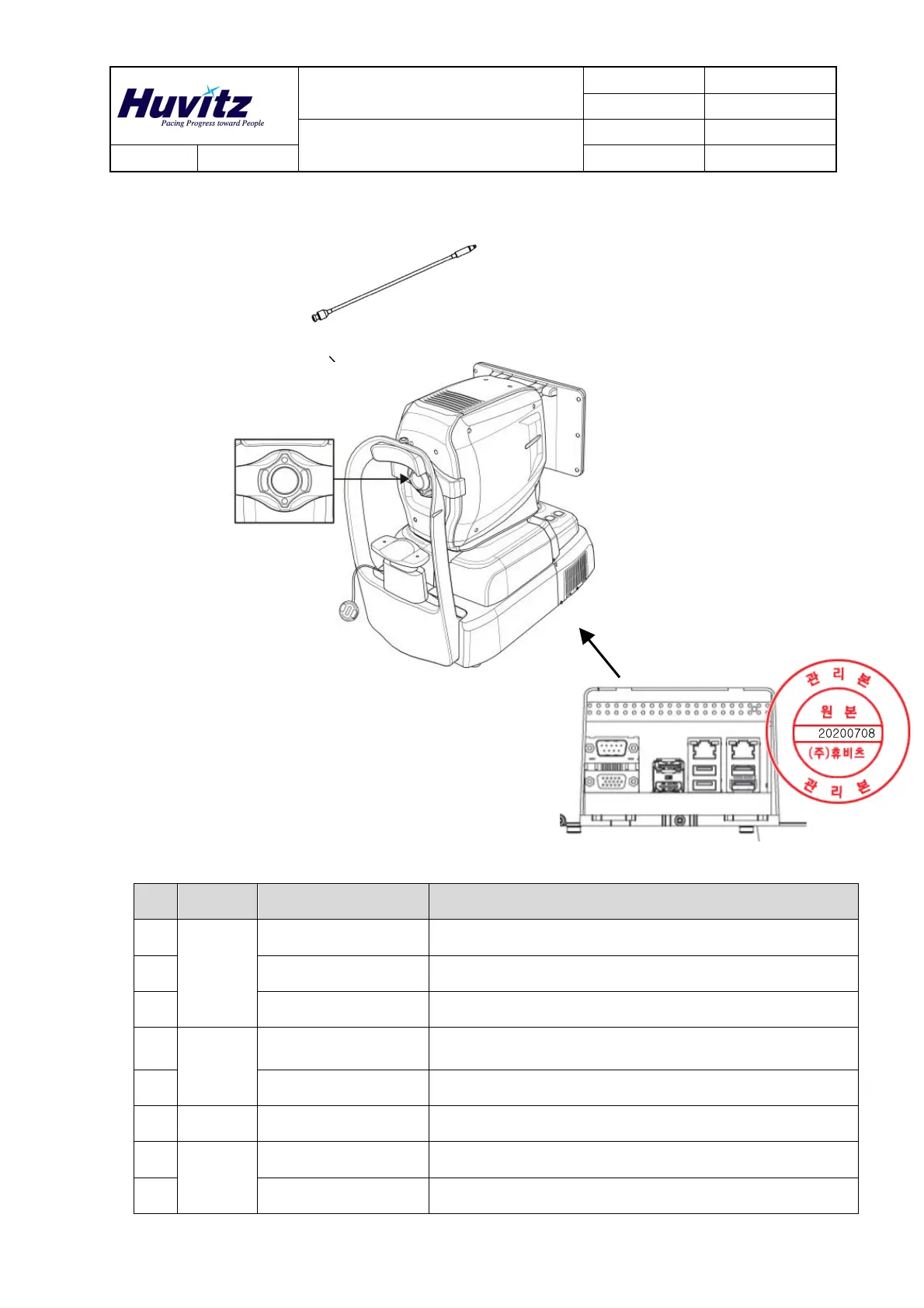

2) Rearview
No Part Name Description
1
Headrest
Forehead rest Rubber for fix patient’s head.
2 External LED External LED for fixing patient’s eyes.
3 Chinrest For fixing patient’s chin.
4-1
Body
Objective lens
Lens for passing illumination light from body and reflected
light from patient’s eye.
4-2 Mirering Focus LED LEDs for checking working distance.
5 Headrest Objective lens cap Cap for protecting objective lens.
8
Base
External port Port for communicating internal or external device.
8-1 RS-232 port Port for communicating internal PC board and main board.
⑧-4
①
③
②
④-1
⑤
④-2
⑧
⑧-3
⑧-1
⑧-2
⑧-5
