HVI VLF-34E - Manual Mode Operation

OPERATOR MANUAL

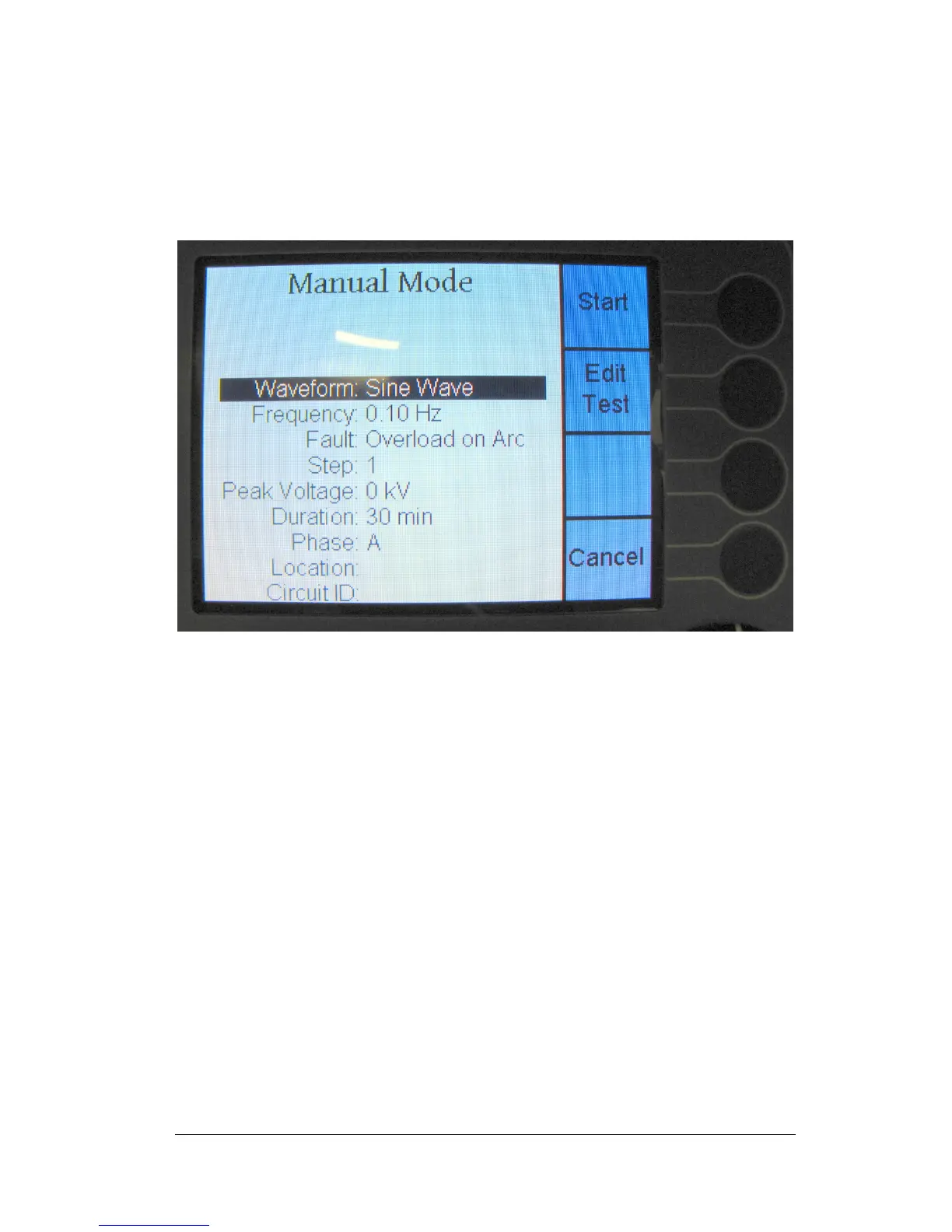

Select new test setup to enter manual mode. Use the scroll knob to cycle through the test
parameter options. Once your test is set to your parameters press start, top right button.
The screen will turn yellow confirm your settings and press star again. The screen turns
red and the test will start.
Manual Mode
Waveform
Sin Wave
Square Wave
DC +/-
Frequency
Auto
0.1 – 0.01 Hz
Step
1-5
Voltage
0-34 kV
Duration
15, 30, 60 mins
Phase
A, B, C
Location
Alphanumeric entry
Circuit ID
Alphanumeric entry
