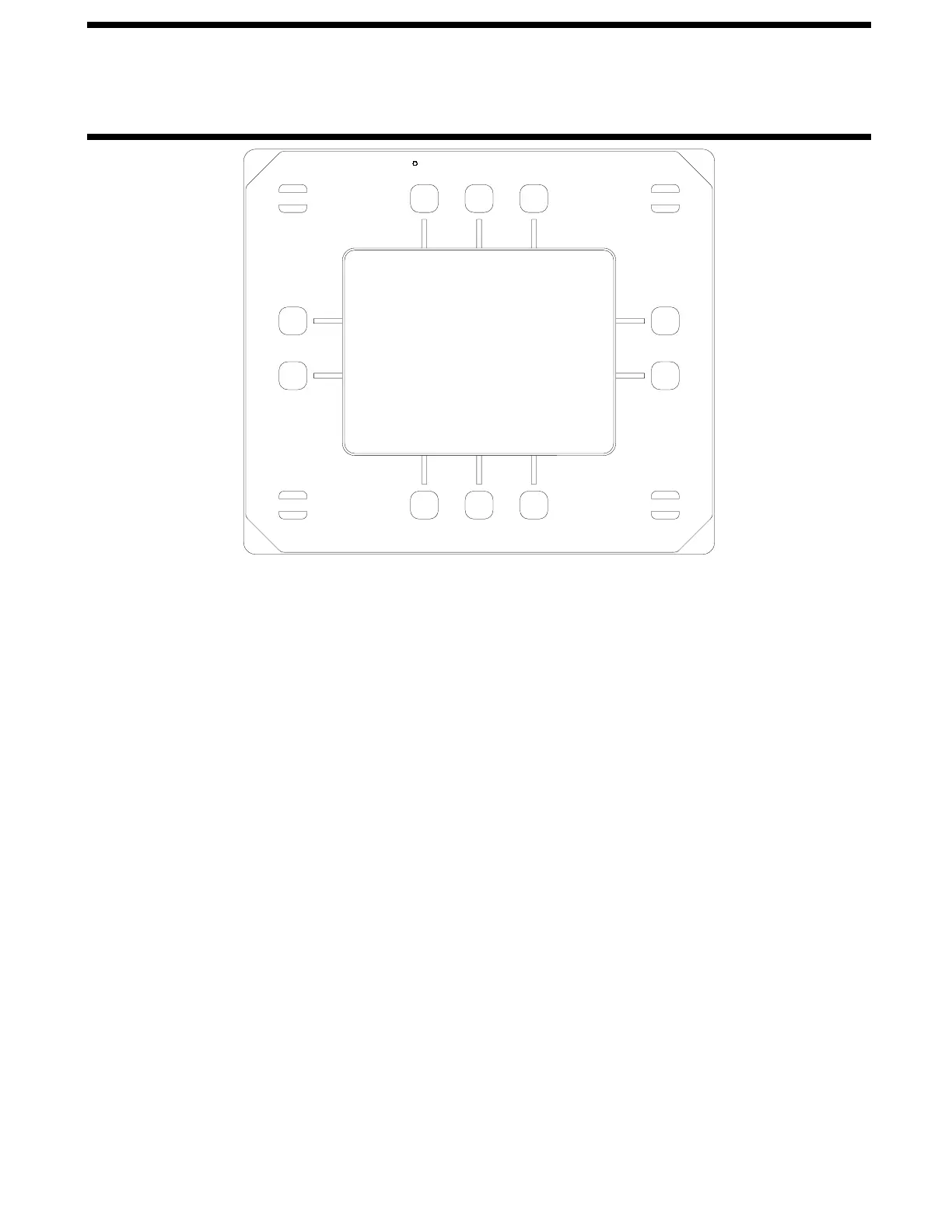

CONTROL IDENTIFICATION
MP24.4001
17MAY10
STATUS PAGE
HWH SYSTEMS CONTROL
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
CAUTION!
LIGHT
HOME
R
RESET
STOP
SCREEN TEXT
STATUS PAGE
RR HYD PRESSURE SWITCH
LR HYD PRESSURE SWITCH
RF HYD PRESSURE SWITCH
LF HYD PRESSURE SWITCH
RR JACK WARNING SWITCH
LR JACK WARNING SWITCH
RF JACK WARNING SWITCH
LF JACK WARNING SWITCH
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON - Jack has load on it, it is supporting weight.
OFF - Jack has no load on it, It is not supporting weight.
NOTE: This "STATUS PAGE" is specific to HWH hydraulic leveling systems ONLY.
"LR HYD PRESSURE SWITCH"
"RF HYD PRESSURE SWITCH"
"LF HYD PRESSURE SWITCH"
"RR JACK WARNING SWITCH"
"LR JACK WARNING SWITCH"
"RF JACK WARNING SWITCH"
"LF JACK WARNING SWITCH"
"RR HYD PRESSURE SWITCH"
ON - Jack is extended approximately 1 inch
OFF - Jack is "FULLY" retracted
PARK BRAKE OFF
EXCESS SLOPE OFF
"PARK BRAKE"
ON - Park brake is set
OFF - Park brake is not set
ON - Leveling system is in an excess slope situation
OFF - Leveling system is not in an excess slope situation
"EXCESS SLOPE"
To Next Page
