Hy-Gain VB-64DX - Page 5

2
REF DE D1 D2
Setting #1 (50-51 MHz)
59"
(1499 mm)
56 3/4"
(1441 mm)
55"
(1397 mm)
54"
(1372 mm)
Setting #2 (50.5-53 MHz)
56 3/4"
(1441 mm)
54 1/2"
(1384 mm)
52 7/8"
(1343 mm)
517/8"
(1318 mm)
Setting #3 (51-54 MHz)
55 1/2"
(1410 mm)
53 3/16"
(1351 mm)
51 5/8"
(1311 mm)
50 7/8"
(1292 mm)
FREQUENCY SETTING CHART

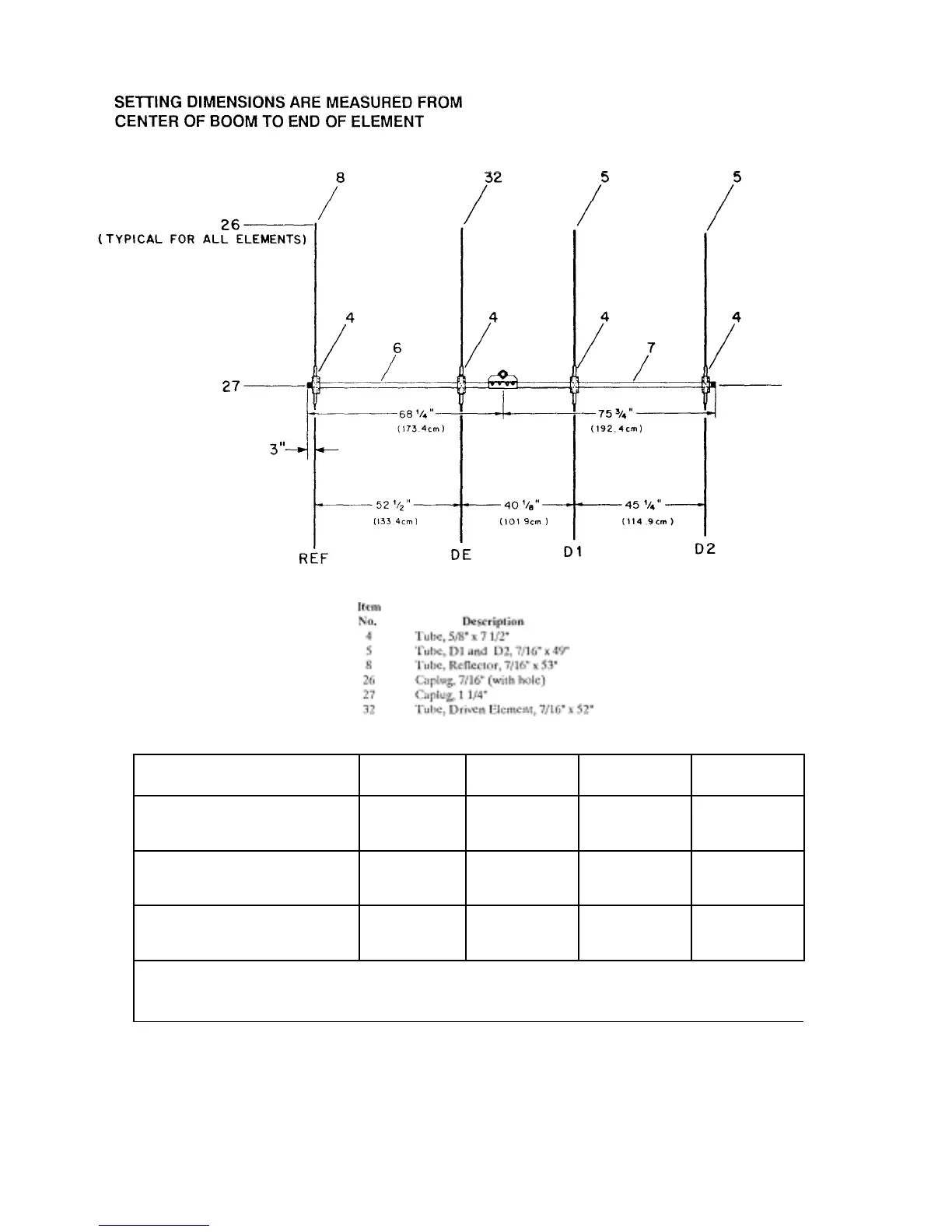

Figure 4 Element Assembly and Antenna
Dimensions
