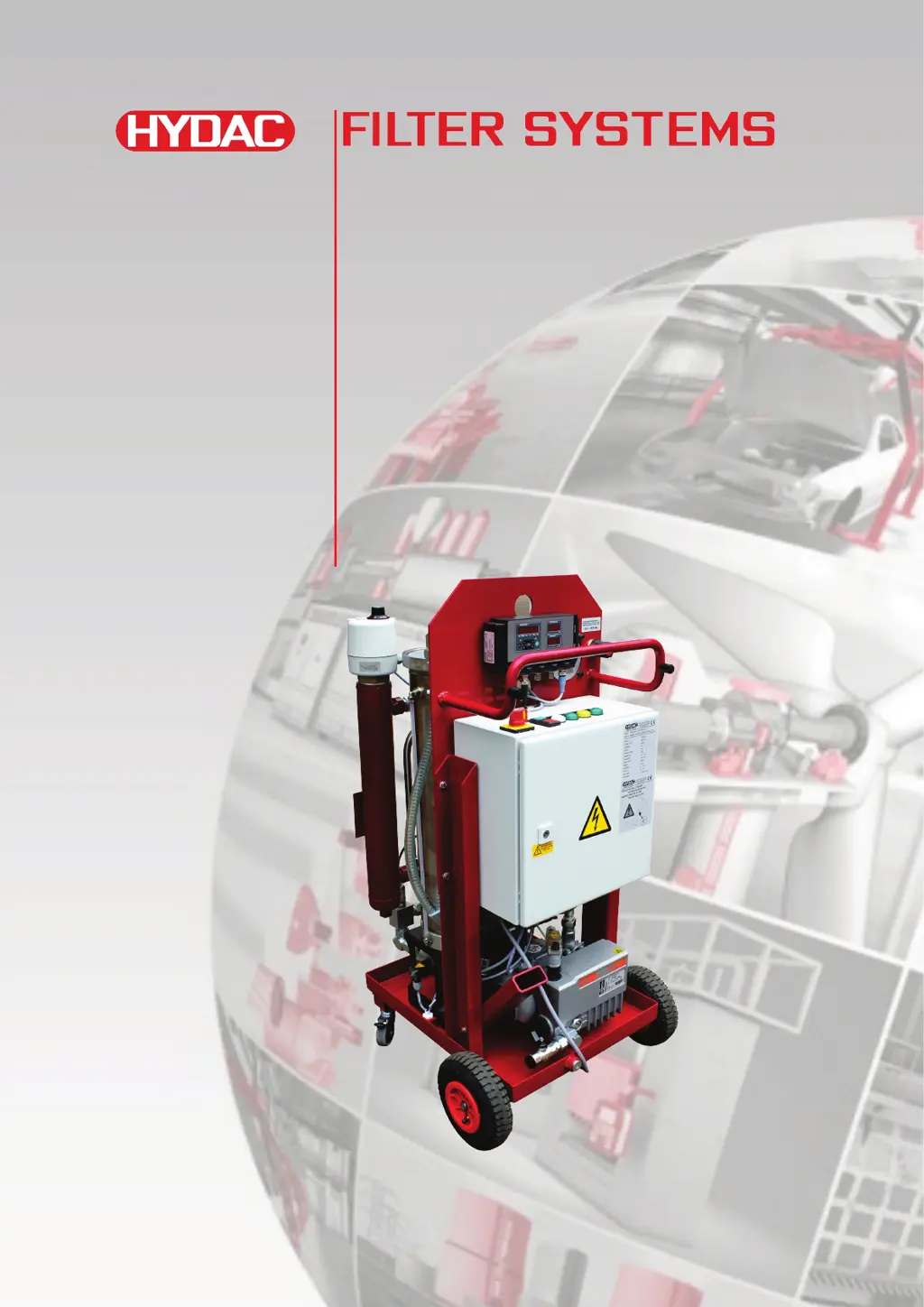

Hydac FAM 5 FluidAqua Mobil User Manual (English)

Questions and Answers:

L
Lisa ShortAug 14, 2025
What to do if the drip tray is full in Hydac FAM 5 FluidAqua Mobil?
- W
  williamsallisonAug 14, 2025
  To address a 'Drip tray full' message on your Hydac Water Filtration System, follow these steps: First, empty the drip tray. Then, inspect the system for leaks and fix them. Acknowledge the error and restart the system by pressing the F1 key. Also, verify the functionality of the float switch in the oil pan and replace it if needed. After these steps, the issue should be resolved.
E
Eduardo HamiltonAug 17, 2025
How to fix a clogged filter in Hydac FAM 5 FluidAqua Mobil?
- J
  James RichardsonAug 17, 2025
  If your Hydac Water Filtration System displays a 'Filter clogged' message, follow these steps: Begin by closing all shut-off devices in the feed and return flow lines. Next, empty the filter housing using the drain ball valve. Then, reopen all shut-off devices. Acknowledge the error and restart the unit by pressing the F1 key. If the problem persists, switch off the unit, unplug it, and inspect the clogging indicator, plug, and supply line, replacing any defective parts. If the issue remains unresolved, it may indicate a defective PLC, requiring you to contact the HYDAC Service Department.
D
Dustin StrongAug 20, 2025
What to do if H pump or V pump motor protection switch error appears on Hydac FAM 5 FluidAqua Mobil?
- R
  Ronald DavisAug 20, 2025
  If your Hydac Water Filtration System shows the message 'H pump motor protection switch' or 'V pump motor protection switch', here’s what to do: Turn off the unit using the main switch. Open the control cabinet and reset the tripped motor protection switch. Plug the power cord back into the outlet. Then, check the motor's current draw against the nominal current on the motor's type plate. If you have a water ring vacuum pump, clean its tank. If necessary, replace the motor protection switch or the fuse. If problems persist, contact the HYDAC service department.
D
Darius PhillipsAug 25, 2025
How to resolve a 'Fill column' error in Hydac FAM 5 FluidAqua Mobil Water Filtration Systems?
- B
  brianna19Aug 25, 2025
  If you encounter a 'Fill column' error on your Hydac Water Filtration System, take these steps: First, check all locking mechanisms in the supply line for proper flow and ensure they are open. Acknowledge the error and restart the unit by pressing the F1 key. Then, clean the suction strainer. If the problem continues, contact HYDAC Service.
F
Frederick BryantAug 27, 2025
What to do for measured AS temp value or measured AS %S value error in Hydac Water Filtration Systems?
- A
  Allen HarmonAug 27, 2025
  If your Hydac Water Filtration System displays 'Measured AS temp value' or 'Measured AS %S value', turn off the unit at the main switch and unplug it. Check the cables and plugs of the corresponding sensor up to the PLC. Check or replace the sensor. If necessary, replace the cable or the plug. If the issue persists, contact the HYDAC service department.
P
Phillip MartinAug 30, 2025
How to fix heater motor protection switch error on Hydac FAM 5 FluidAqua Mobil Water Filtration Systems?
- P
  Paul MillerAug 30, 2025
  If your Hydac Water Filtration System shows a 'Heater motor protection switch' error, switch off the unit at the main switch. Open the control cabinet door and reset the Q5 motor protection switch. Close the control cabinet door and plug the power plug back in. Switch the unit on using the main switch and start operation by pressing the F1 key. If the issue persists, replace the motor protection switch Q5 (heater). Close the control cabinet door. Switch the unit on using the main switch and start operation by pressing the F1 key. If problems continue, contact the HYDAC service department.
K
kennedychristinaSep 3, 2025
What should I do if the V pump min error appears on Hydac Water Filtration Systems?
- J
  John DavisSep 3, 2025
  If your Hydac Water Filtration System shows a 'V pump min' message, fill the rotary vane vacuum pump with vacuum pump oil. Acknowledge the error and restart the unit by pressing the F1 key. If the failure recurs despite sufficient oil, check the float switch and then the PLC.
K
Kelly PageSep 6, 2025
How to troubleshoot an empty vacuum column in Hydac Water Filtration Systems?
- A
  albertbutlerSep 6, 2025
  To resolve an 'Empty vacuum column' error on your Hydac Water Filtration System, check all shut-off devices in the return line for flow. Acknowledge the error and start the unit. Verify the pump's function, ensure the pressure relief valve isn't contaminated, check the valve switches, confirm good filter flow, and ensure the level sensor for the vacuum column functions correctly. Increase the pressure in the vacuum column; if not possible, switch the air filter element. Acknowledge the error and restart the unit. If issues persist, contact the HYDAC service department.
R
Rebecca NguyenSep 9, 2025
How do I fix the vacuum column sensor on Hydac FAM 5 FluidAqua Mobil Water Filtration Systems?
- B
  Brenda WarnerSep 9, 2025
  To address a 'Vacuum column sensor' issue in your Hydac Water Filtration System, switch off the unit at the main switch. Verify that the level switch of the vacuum column is working correctly. Check the plug to the level switch, as well as the cable from the level switch to the control cabinet and within the control cabinet to the PLC. If the PLC is defective, contact the HYDAC Service Department.

Hydac FAM 5 FluidAqua Mobil Specifications

General

Brand	Hydac
Model	FAM 5 FluidAqua Mobil
Category	Water Filtration Systems
Language	English

Summary

Preface and Support

Technical Support

Contact for product questions, including model and serial numbers.

Product Modification and Warranty

Information on product changes and warranty terms.

Safety Information

Using the Documentation

Guidance on how to effectively use the operating manual.

Hazard Symbols and Warnings

Explanation of hazard pictograms, signal words, and structure.

Safe Use and Personnel Requirements

Covers designated use, misuse hazards, and personnel qualifications.

Personal Safety and Emergency Procedures

Guidelines on clothing and emergency stop function.

Unit Handling and Description

Unpacking and Transporting the FAM

Procedures for unpacking, moving, and transporting the FAM unit.

Checking the Scope of Delivery

Verification of supplied items upon receiving the unit.

FAM Versions and Features

Details on FAM versions, features, and system components.

Technical Specifications

Dimensions

Physical dimensions for stationary and mobile FAM units.

Hydraulic Circuit

Schematic diagram of the unit's hydraulic system.

Working Principle and Applications

Explanation of FAM operation and its possible uses.

FAM Set-up and Connection

FAM Set-up and Connections

Procedures for unit placement, pipes, and hoses.

Notes on Pipes and Hoses

Guidelines for selecting and connecting pipes and hoses.

Connecting Inlet and Outlet

Instructions and precautions for inlet and outlet connections.

Vacuum Pump Preparation and Checks

Steps for preparing the vacuum pump and checking its air outlet.

Electrical Connection and Rotation Check

Safety for electrical connections and verifying motor rotation.

Operation and Controls

FAM Operating Elements

Identification of controls on the FAM and switch box.

Starting Up the Unit

Steps for powering on, startup screen, and initiating operation.

Setting Vacuum Pressure

Adjusting vacuum column pressure and recommended settings.

Filter Housing Venting and Heater Settings

Procedures for venting the filter and setting the heater.

Stopping Unit Operation

Instructions for safely stopping the FAM unit.

Operating Modes and System Settings

Selecting Operating Modes

How to switch off the FAM and select operating modes.

Dewater and Filter Modes

Details on Dewater/Filter modes, CS limits, and menu layout.

Heat Mode, Manual Operation, and Settings

Covers Heat mode, manual control, and system settings.

Software Updates and Configuration

Program and Language Updates

Procedure for loading new software versions via SD card.

Configuration Menu and Settings

Navigating the configuration menu and changing settings.

Menu Layout and Parameter Changes

Overview of menu structure and changing values/parameters.

External Sensor and Network Connectivity

Connecting external sensors and network interfaces.

Troubleshooting Common Errors

General Troubleshooting Guide

Overview of error handling and error notification display.

Specific Error Resolutions

Detailed steps for resolving common error codes.

Performing Maintenance

Maintenance Intervals and Checks

Scheduled maintenance tasks and checks for the FAM unit.

Vacuum Pump Maintenance

Procedures for oil, filter, and component maintenance for the vacuum pump.

Filter and Pump Vane Maintenance

Maintenance for dry-running pumps, filters, and vanes.

Suction Screen and Fluid Filter Service

Cleaning the suction screen and replacing the fluid filter element.

Heater and Sensor Maintenance

Maintenance for the heater and checking sensors.

Parts, Service, and Disposal

Spare Parts Identification

Lists of spare parts for FAM, filters, and pumps with part numbers.

Contact and Service Information

Support contacts and unit storage instructions.

Unit Disposal Guidelines

Instructions for environmentally friendly disposal of the unit.

Technical Data and Compliance

Technical Data Overview

Key specifications including fluids, viscosity, temperature, and power.

Permissible Operating Ranges

Covers viscosity, temperature, ambient conditions, power, and water content.

Connection Overview

Diagram showing unit connectors and hose connections.

Model Code Explanation

Decoding the FAM unit's model code.

EC Declaration of Conformity

Statement of compliance with EU directives.
