4. ACCESSORIES
4.1. PROTECTIVE CASE
For storing the charging and testing unit
and adapters.
Different types of case are available,
depending on customer requirement.
FPU-1, standard model,
without case: approx. 1.4 kg
FPU-1, standard model,
with case: approx. 3.0 kg
4.2. GAS SAFETY VALVE
Provides protection by reducing the
pressure in a controlled way if pressure
exceeds the permitted level unexpectedly,
see catalogue section:
z Safety Equipment for
Hydraulic Accumulators
No. 3.552
4.3. ADAPTER D4
For screw connector D on bladder
accumulators < 1 l (see Point 3.)
4.5. PRESSURE REDUCER
For adjusting the required pre-charge pressure between the nitrogen bottle and the
accumulator.
4.5.1 Pressure reducer for 200 bar nitrogen bottles
Inlet: connection W24.32x1/12-DIN 477, Part 1
Outlet: male thread W24.32x1/14-DIN 477, Part 1
Bottle pressure [bar] Pressure after reducer [bar] Part no.
200 20 635409
200 100 635411
200 200 635412
4.5.2 Pressure reducer for 300 bar nitrogen bottles
Inlet: connection W30x2-DIN 477, Part 5
Outlet: male thread W24, 32x1/14-DIN 477, Part 5
Bottle pressure [bar] Pressure after reducer [bar] Part no.
300 20 6004020
300 100 6004021
300 200 6004022
300 270* 6004023
* if pressure after reducer > 200 bar, the outlet has a male thread W30x2-DIN 477, Part 5
Weight: 0.5 kg

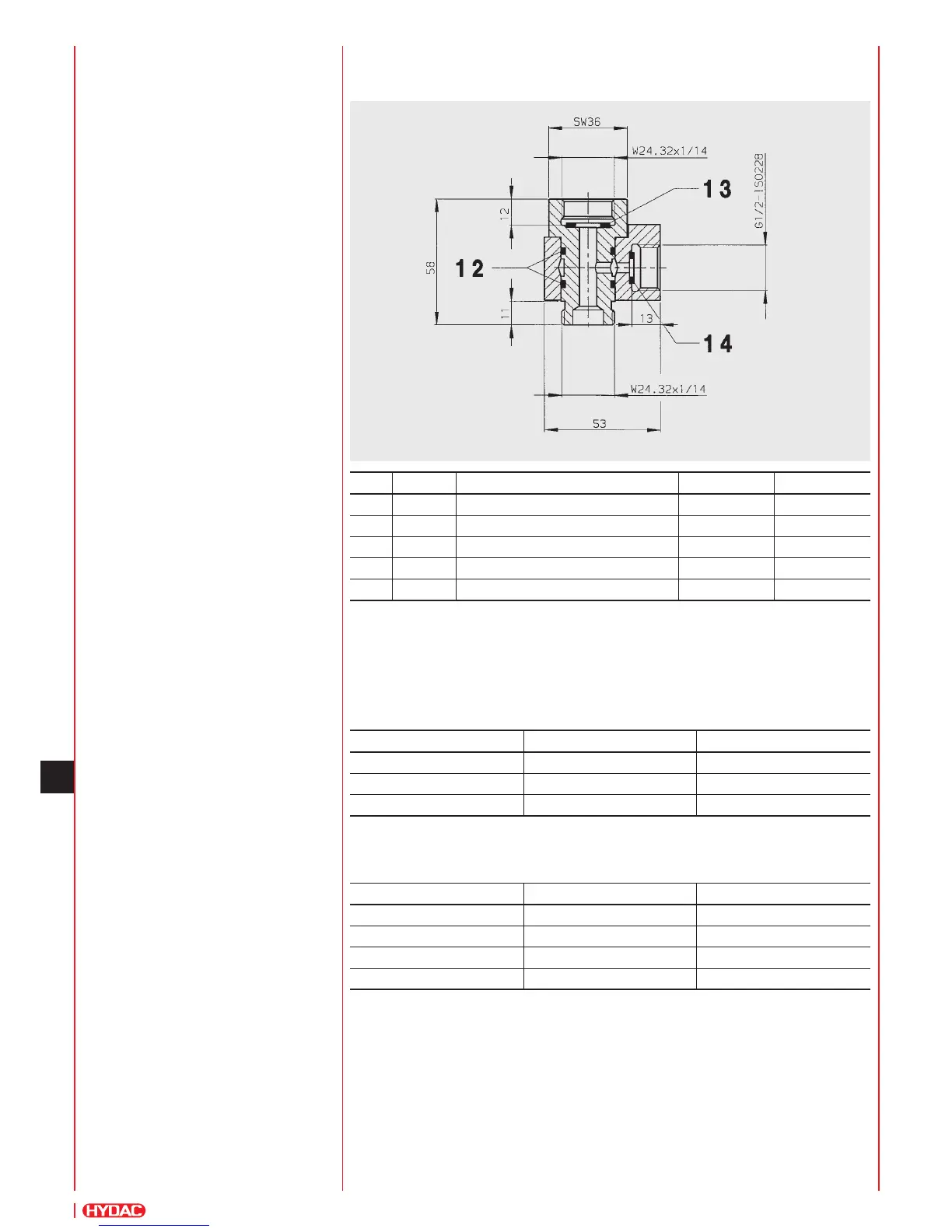

4.4. INTERMEDIATE PIECE GSV6-10-CE
Intermediate piece for installing the gas safety valve GSV6 between the 200 bar nitrogen
bottle and the charging and testing unit FPU-1.
Item Quantity Description Dimension Part no.
Intermediate piece GSV6-10-CE 242558
12 2 O-ring 20x2.5x2 601058
13 1 Seal ring 20x11.5x2 614706
14 1 Seal ring 14x8.5x2 612735
Seal kit for intermediate piece 2117287
