Hydreon RG-11 - Rain Gauge Connections; Equivalent Schematic; Rain Gauge Wiring Examples; Line Voltage Control Its Raining Application

NC
NO
MOTORIZED
DAMPER
LOW VOLTAGE
“IT’S RAINING”
APPLICATION
LINE VOLTAGE CONTROL “IT’S RAINING” APPLICATION
NC
NO
PWR2
COM
RG-11
PWR1
SWITCH ON
RELAY
CONTACTS
POWER IN
(AC OR DC)
PROGRAM /
COMMUNICATIONS
CONNECTOR
(NOT USED IN MOST
APPLICATION)
INTERFACE
TERMINAL
BLOCK
PROGRAMMING
DIP SWITCH

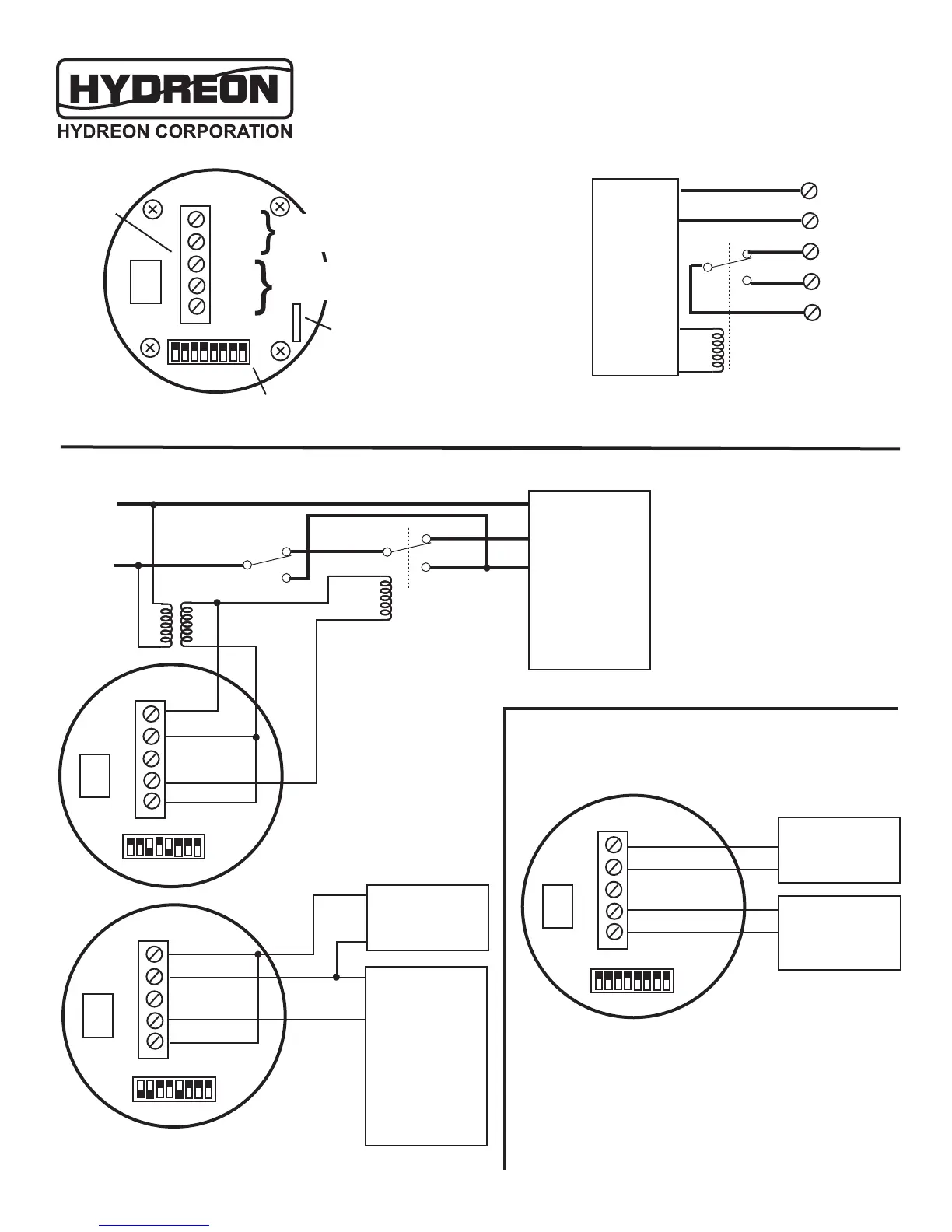

RAIN GAUGE CONNECTIONS
NC
NO
COM
RAIN
SENSING
CIRCUITS
DC OR
AC IN
PWR1
PWR2
EQUIVALENT SCHEMATIC
RELAY CONTACTS
MAX 1 A,
24V DC OR AC
NC
NO
PWR2
COM
RG-11
PWR1
SWITCH ON
120 VAC
LINE IN
COM
OPEN
CLOSED
OPERATOR
SWITCH
COM
24 VAC
24 VAC
TRANSFORMER
- The relay output of the RG-11 is
rated for 24V AC or DC, at 1 A. Thus,
the RG-11 cannot drive a line voltage
(120 VAC) load without an external
relay.
-The RG-11 requires a low voltage AC
or DC supply and may not be directly
powered from the 120 VAC line.
12345678
12345678
For this example, these
switches are on:
SW 5 - Sets the sensor to
“It’s Raining’ mode.
SW 3 - Monostable extend
output for 15 mintues.
NC
NO
PWR2
COM
RG-11
PWR1
COM
RUN
12V DC
POWER
SUPPLY
12V DC, 1 A
OR LESS,
MOTOR THAT
RUNS WHEN
IT IS RAINING.
Shown are
switches 1, 2, and
5 on => only turn
on in a heavy
rainfall.
TIPPING BUCKET
REPLACEMENT EXAMPLE
NC
NO
PWR2
COM
RG-11
PWR1
12V DC
POWER
SUPPLY
COUNTER
E.G. Red Lion Cub-3
+
-
+
-
In many cases, the RG-11 may directly replace
tipping buckets in existing systems.
The switch settings shown here- all off– will
emulate a tipping bucket of 0.01”
RAIN GAUGE WIRING EXAMPLES
SWITCH ON
12345678
SWITCH ON
12345678
