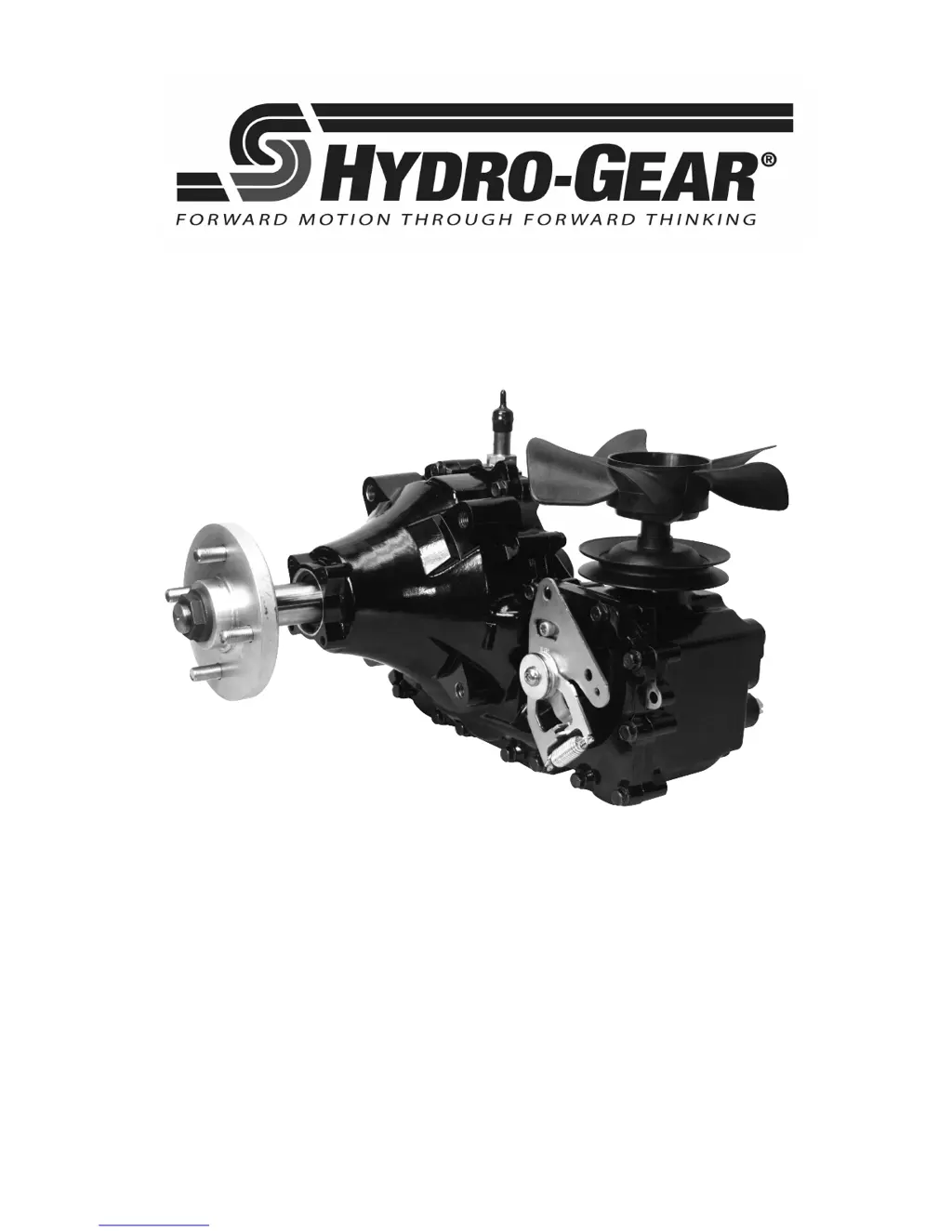

ZT-5400 Powertrain™
Service and Repair Manual
www.mymowerparts.com
Hydro Gear Parts or New Units Call 606-678-9623 or 606-561-4983

Questions and Answers

  • A
    Anthony SmithAug 14, 2025
    Why does my Hydro-Gear ZT-5400 Powertrain Engine unit have no or low power?
    • B
      Bonnie BlackburnAug 15, 2025
      If your Hydro-Gear Engine unit has no or low power, several factors could be responsible. First, the engine speed might be low and needs adjustment to the correct setting. Second, the control linkage could be bent or out of adjustment, requiring repair or replacement. Third, the drive belt might be slipping, or the pulley damaged, which also calls for repair or replacement. Finally, the oil level might be low, or the oil contaminated, necessitating a refill to the proper level or an oil change.
  • C
    Christy CarterAug 18, 2025
    Why is my Hydro-Gear ZT-5400 Powertrain Engine noisy?
    • J
      Jean GarciaAug 18, 2025
      If your Hydro-Gear Engine unit is noisy, it could be due to a couple of reasons. The oil level might be low, or the oil could be contaminated; in this case, you should fill the oil to the proper level or change it. Another possibility is that there are loose parts, which would need to be repaired or replaced.
  • K
    Kevin ButlerAug 21, 2025
    What to do if my Hydro-Gear Engine vehicle does not drive/track straight?
    • S
      sabrinaturnerAug 21, 2025
      If your Hydro-Gear Engine vehicle does not drive or track straight, there are a couple of potential causes. One possibility is that the vehicle tires are improperly inflated; in this case, you should refer to the vehicle manufacturer's suggested pressure. Another potential cause is that the control linkage is bent or out of adjustment, which would require repair or replacement.
  • L
    Linda WallaceAug 25, 2025
    Why does my Hydro-Gear ZT-5400 Powertrain Engine operate in one direction only?
    • A
      Ashley ThompsonAug 26, 2025
      If your Hydro-Gear Engine unit operates in one direction only, it could be due to the control linkage being bent or out of adjustment, which means it needs to be repaired or replaced. Alternatively, the drive belt might be slipping, or the pulley damaged, which would also require repair or replacement.
  • R
    Ronald RandolphAug 28, 2025
    Why is my Hydro-Gear ZT-5400 Powertrain Engine operating hot?
    • A
      Arthur RichmondAug 28, 2025
      If your Hydro-Gear Engine unit is operating hot, it could be because the oil level is low or the oil is contaminated. To resolve this, fill the oil to the proper level or change the oil.
  • L
    Lance JacksonAug 31, 2025
    What to do if the brake is partially engaged on my Hydro-Gear Engine?
    • R
      riceashleyAug 31, 2025
      If the brake of your Hydro-Gear Engine is partially engaged, disengage the brake and replace any broken or missing brake return springs.
  • A
    Amy CarterSep 3, 2025
    What to do if drive belt slipping on Hydro-Gear ZT-5400 Powertrain Engine?
    • H
      Heidi KellerSep 3, 2025
      If the drive belt is slipping or the pulley is damaged on your Hydro-Gear Engine, you should repair or replace the drive belt or pulley.
  • C
    Christopher McgeeSep 7, 2025
    What to do if excessive loading on Hydro-Gear ZT-5400 Powertrain?
    • D
      Daniel HarrisSep 7, 2025
      If you have excessive loading on your Hydro-Gear Engine, reduce the vehicle loading.
  • T
    tyler75Sep 12, 2025
    What to do if bypass assembly sticking on Hydro-Gear ZT-5400 Powertrain Engine?
    • C
      Cynthia MendezSep 12, 2025
      If the bypass assembly is sticking on your Hydro-Gear Engine, it needs to be repaired or replaced.

Summary

Foreword

Description and Operation

General Description

Describes the ZT-5400 Powertrain as a self-contained unit providing variable speed, its components, and operation.

Hydraulic Schematic

Explains the hydraulic oil circuit for the ZT-5400 Powertrain, including pump, motor, and flow.

Safety

Personal Safety

Outlines precautions for servicing the ZT-5400 Powertrain, emphasizing reading manuals and safety material.

Servicing Safety

Covers disabling the vehicle for safety, using approved solvents, and avoiding ignition sources during cleaning.

Troubleshooting

Troubleshooting Checklist

A table listing possible causes for operational problems and their corrective actions, referencing other manual pages.

Service and Maintenance

External Maintenance

Details regular checks of the vehicle drive belt, cooling fan, linkages, and bypass mechanism.

Fluid Change Procedure

Purging Procedures

Return to Neutral Setting

2-Speed Option Setting

Tear Down and Reassembly

General Instructions

Emphasizes cleanliness, protecting parts, and replacing seals/gaskets/hubs during assembly.

Tools

Torques

Provides a general rule for torque application and a table of required torque values for various components.

Transaxle Removal

Assembly After a Complete Teardown

ZT-5400 Powertrain Transaxle Parts List

Hydro-Gear ZT-5400 Powertrain Specifications
