User Manual
xyz|~ xyz|

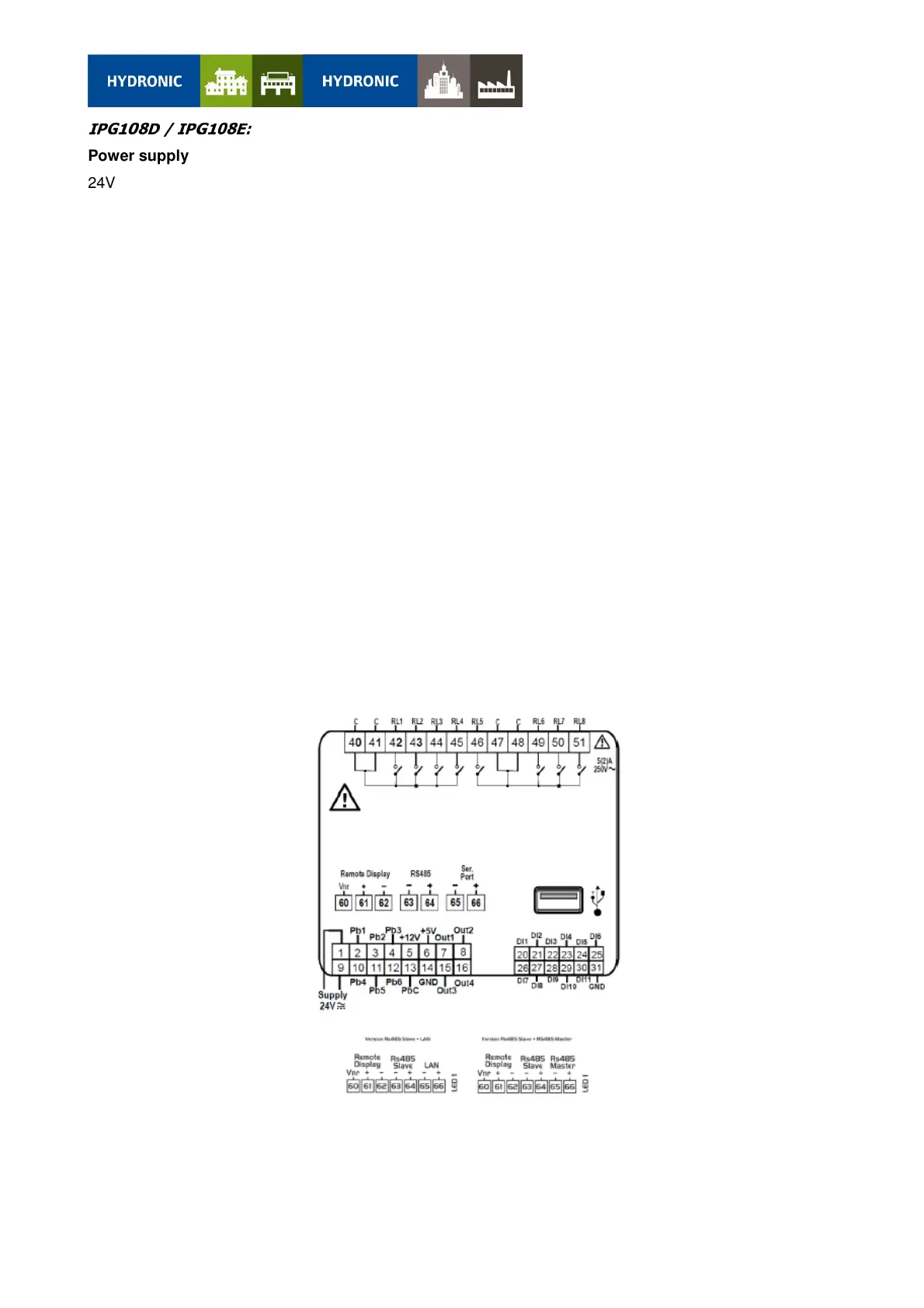

Power supply
24V AC/DC
Digital inputs
11 opto-insulated at 24Volt AC current on the contact
Analogue inputs
6 configurable: 0÷5V, 4÷20mA, NTC, PTC, digital input
Analogue outputs Opto-Insulated
4 configurable: 0÷10V signal, external relay driving
Relay outputs
8 x 5(2) A @ 250V SPST
Remote terminal
N° 1 output for connection of up to two remote terminals (100M)
RTC
LED DISPLAY INTEGRATED (IPG108E)
Serial outputs
1 USB; BACnet IP using USB/Ethernet adapter
1 RS485 master with Mod_BUS communication protocol in case of the controller is the MASTER or 1 LAN to
connect I/O expansion module
1 RS485 slave with Mod_BUS or with BACnet MSTP communication protocol in case of the controller is the
SLAVE
