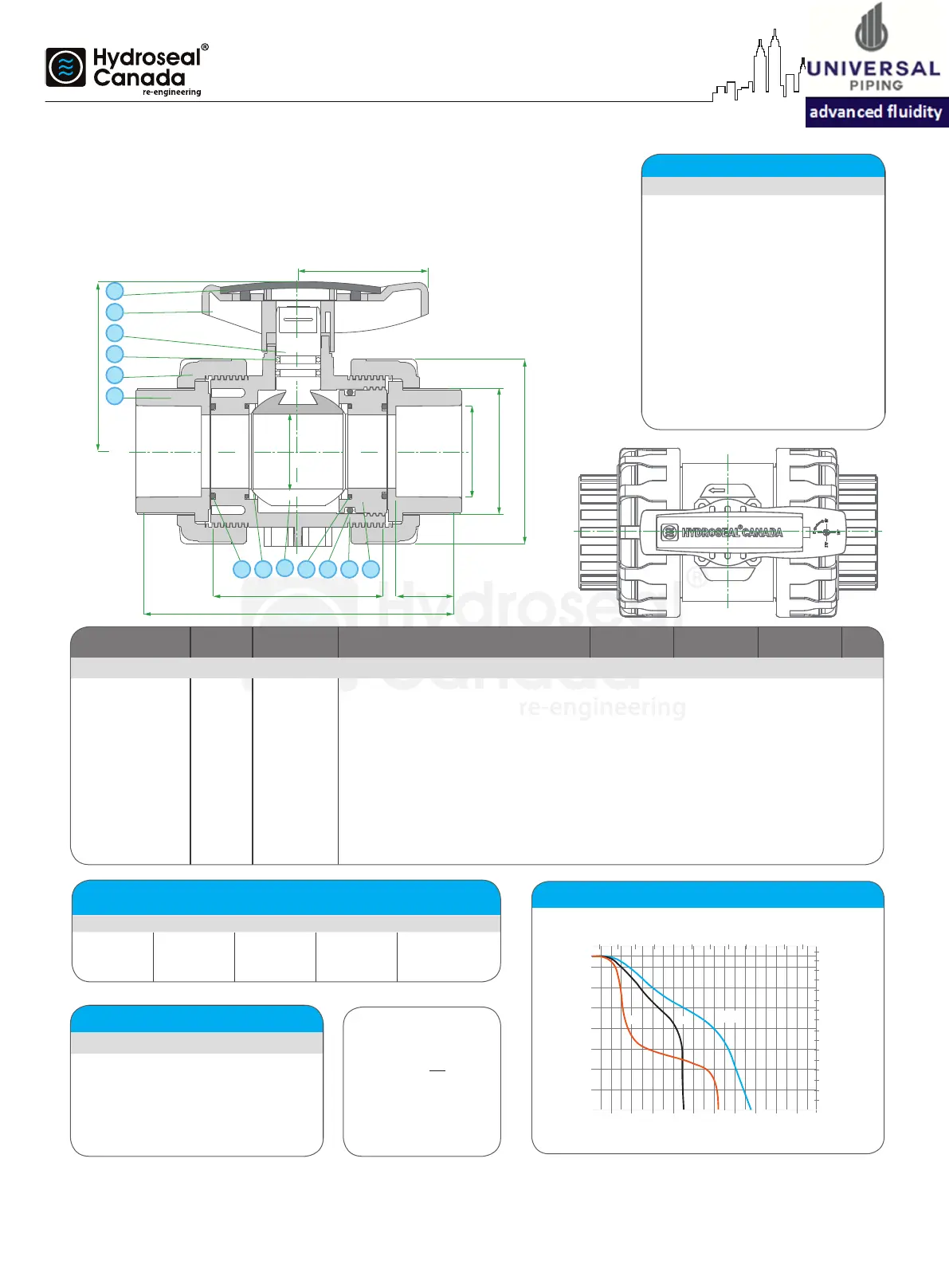

Hydroseal KAPLAN - Technical Specifications; Construction; Selection Chart; CV Factors

SECTION 10 - TECHNICAL
VALVE OPERATION MANUAL
KAPLAN BALL VALVES
EN.005
Valve Operation Manual
Page 3 of 3
Øde
H1
ØD1 ØD
L1
L
I
Ød
W
1
2
3
4
5
6
789
11
101213
1-1/2" DN40
FLOW
OPERATING TEMPERATURE/PRESSURE
PP
PVC
WORKING PRESSURE (kPa)
WORKING PRESSURE (PSI)
1600
1400
1200
1000
800
600
200
400
0
60 80 100 120 140 160 180 200 220 240 260 280
20 30 40 50 60 70 80 90 100 110 120 130
200
180
150
120
90
60
30
0
TEMPERATURE ºC
TEMPERATURE ºF
CPVC
JOINT END:
THREADED (PT.NPT.BSPF)
SOCKET (ASTM.DIN.JIS)
WORKING PRESSURE:
200 PSI
PART
NOMINAL
SIZE
SOCKET,
THREAD TYPE
UNIT OF MEASURE: MM ASTM DIN JIS
DN D D1 d H1 L L1 de l de l de l W
KPES.0050 1/2" DN 15 46.00 32.00 13.00 49.00 116.00 62.00 21.34 22.60 20.00 17.00 22.00 22.60 45.00
KPES.0075 3/4" DN 20 56.00 38.00 19.00 60.00 133.00 72.00 26.67 25.50 25.00 19.50 26.00 25.50 52.00
KPES.0100 1" DN 25 66.00 45.00 25.00 69.00 150.00 80.00 33.40 28.60 32.00 23.00 32.00 28.60 58.00
KPES.0125 1 1/4" DN 32 82.00 55.00 31.00 76.00 168.00 87.00 42.16 31.90 40.00 27.00 38.00 31.90 66.00
KPES.0150 1 1/2" DN 40 98.00 67.00 40.00 91.00 173.00 94.00 48.26 35.10 50.00 32.00 48.00 35.10 69.00
KPES.0200 2" DN 50 120.00 81.00 50.00 110.00 206.00 112.00 60.32 38.20 63.00 37.50 60.00 38.20 81.00
KPES.0250 2 1/2" DN 65 120.00 89.00 50.00 110.00 211.00 112.00 73.02 41.40 75.00 41.50 76.00
41.40 81.00
KPES.0300 3" DN 80 162.00 108.00 75.00 140.00 262.00 147.00 88.90 48.00 90.00 51.00 89.00 51.00 118.00
KPES.0400 4" DN 100 220.00 134.00 100.00 185.00 311.00 177.00 114.30 57.50 110.00 61.00 114.00 61.00 140.00
Pressure Loss
Calculation Formula
∆P = Pressure Drop
Q = Flow in GPM
Cv = Flow Coefficient
∆P = [ ]
2
Q
Cv
CV FACTORS
SIZE FACTOR SIZE FACTOR
1/4" - 1 1/2" 90
3/8” - 2" 140
1/2" 8 2 1/2" 330
3/4" 15 3" 480
1" 29 4" 600
1 1/4" 75 6” -
CONSTRUCTION
NO PARTS PCS MATERIALS
1 HANDLE CAP 1 ABS
2 HANDLE 1 ABS
3 STEM 1 PVC, CPVC, PP
4 O-RING 2 EPDM, VITON
5 NUT 2 PVC, CPVC, PP
6 CONNECTOR 2 PVC, CPVC, PP
7 INSERT 1 PVC, CPVC, PP
8 BODY 1 PVC, CPVC, PP
9 O-RING 1 EPDM, VITON
10 O-RING 2 EPDM, VITON
11 BALL 1 PVC, CPVC, PP
12 SEAT 2 PTFE
13 O-RING 2 EPDM, VITON
SELECTION CHART
Lever Handle Operator and Gear Box Operator
SIZE MATERIAL CONNECTION SEALS PRESSURE RATING
1/2” ~ 4”
PVC
CPVC
PP
SOCKET or
THREAD
EPDM or VITON
200 PSI @ 70F
Non-Shock
