2
IMMERSION WELLS
When installed on an Electro-Well™ (sold separately), the Low
Water Cut-Off function is automatically activated. Heat transfer
grease should not be used. NOTE: For proper operation, there must
be 1/2" clearance between the copper well tube and any furnace
within the boiler.
See Electro-Well™ models on page 15.
NOTE: When installed on a standard immersion well, the “LWCO
Active” LED will not illuminate.

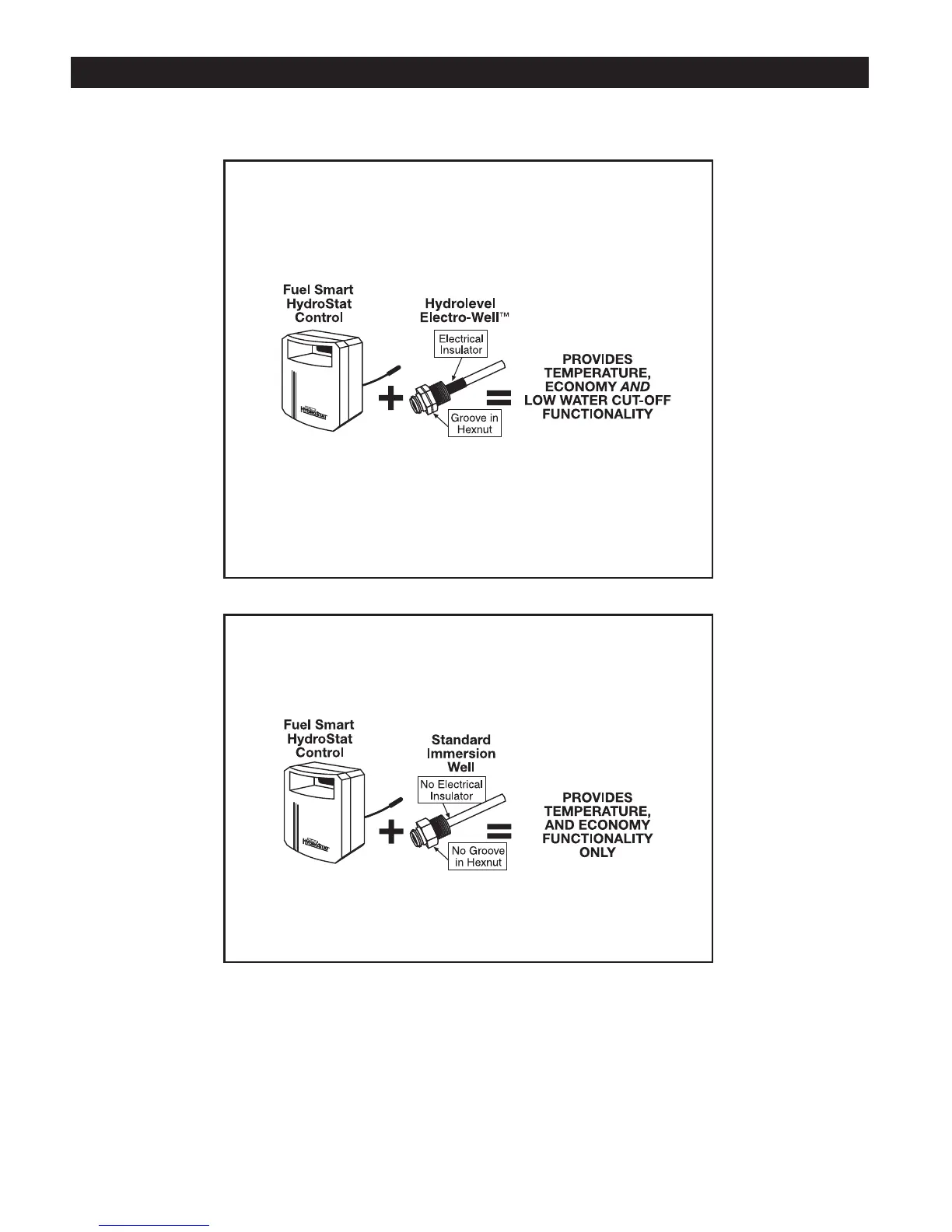

Fuel Smart HydroStat can be installed on a Hydrolevel Electro-Well™ or on an existing immersion well already in the boiler.
IMPORTANT: The control will only provide low water cut-off protection when installed on an Electro-Well™.
Installing HydroStat
with Hydrolevel Electro-Well
Installing HydroStat
with Standard Immersion Well
The Electro-Well can be identified by the black electrical insulator
or, if installed, by the groove cut into the hexnut.
HydroStat 3200-Plus Instructions_ HydroStat Instructions.8pg 12/1/17 10:43 AM Page 2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HydroStat 3200-Plus and is the answer not in the manual?

HydroStat 3200-Plus Specifications

Power IconPower
input voltage120 VAC, 60 HZ
burner contacts30 VA @ 24 VAC
circulator contacts5.8 FLA, 34.8 LRA@120 VAC
Operating Environment IconOperating Environment
operating range – low limitOff or 110°F (43°C) - 200°F (93°C)
operating range – high limit100°F (38°C) - 220°F (104°C)
thermostat heat anticipator setting0.2A
