HydroStat 3200-Plus User Manual

4
WIRING
WARNING
Electrical shock hazard. To prevent electrical shock, death or equipment damage, disconnect power supply before
installing or servicing this control.

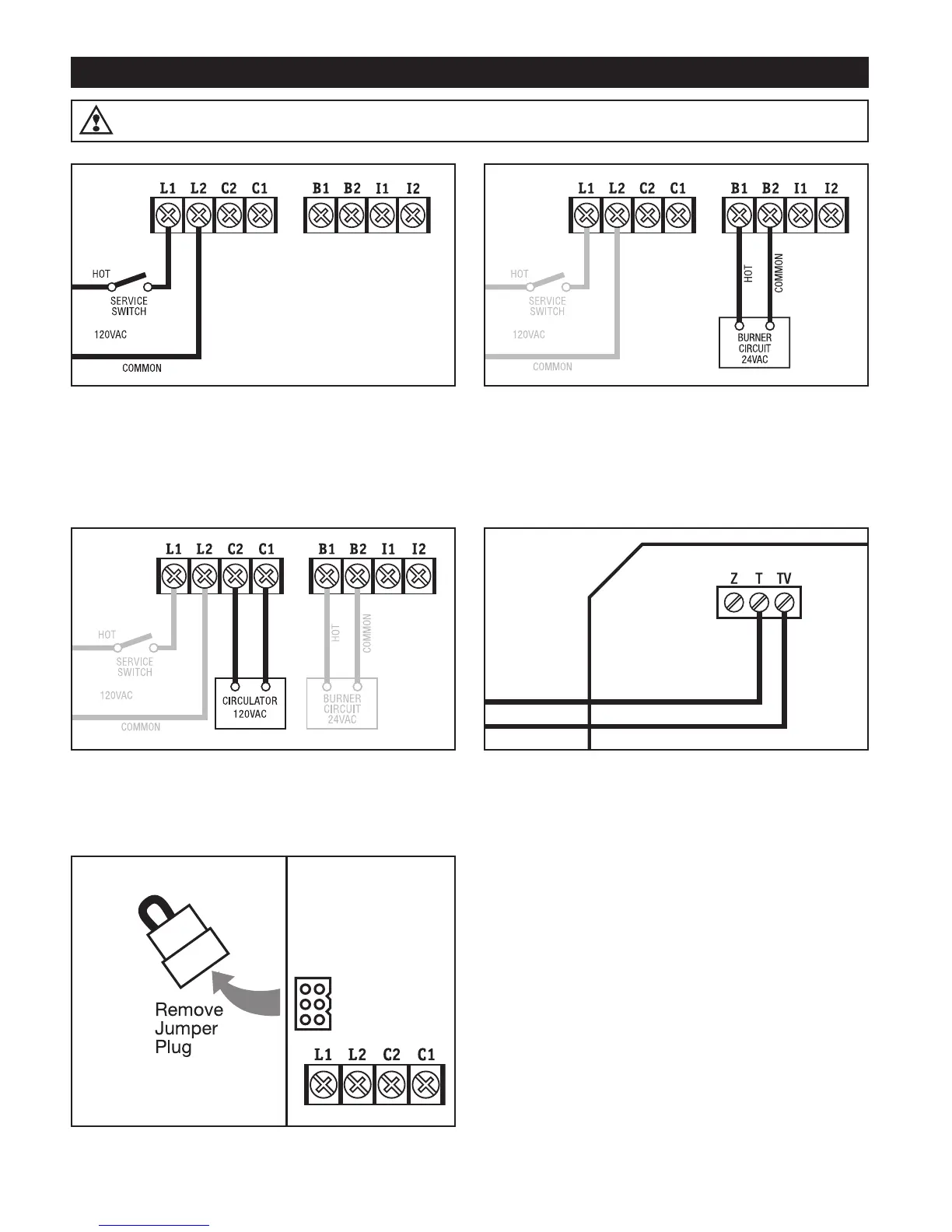

STEP 1
Connect 120 VAC Hot to terminal L1. Connect 120 VAC
Common to terminal L2. Disconnect means and overload
protection as required (provided by others).
STEP 3
Connect the circulator to C1-C2. (C2 is common.)
STEP 2
Connect the burner circuit to B1-B2. (B2 is common.)
STEP 4
Connect the thermostat to T/TV.
STEP 5
If the boiler is equipped with a plug-in style vent damper,
unplug the factory installed jumper from the receptacle on the
circuit board and replace it with the vent damper plug.
HydroStat 3200-Plus Instructions_ HydroStat Instructions.8pg 12/1/17 10:43 AM Page 4

HydroStat 3200-Plus Specifications

Power

input voltage	120 VAC, 60 HZ
burner contacts	30 VA @ 24 VAC
circulator contacts	5.8 FLA, 34.8 LRA@120 VAC

Operating Environment

operating range – low limit	Off or 110°F (43°C) - 200°F (93°C)
operating range – high limit	100°F (38°C) - 220°F (104°C)
thermostat heat anticipator setting	0.2A
