Function Description

The Hyperax Sport Roof Cargo Carrier is designed to provide additional storage space on the roof of a vehicle for transporting various items. It is compatible with a range of roof bar types, including round, rectangular, aero, and wing bars, offering a universal fit for widths up to 3.5 inches (90 mm) and thicknesses up to 1.75 inches (45 mm). The carrier is intended for personal, family, and household use, not for business or commercial purposes. It allows for the secure transport of items such as long boards, kayaks, canoes, and other cargo, provided they are properly secured and within the specified weight limits.

Important Technical Specifications

The Hyperax Iridium series comes in two sizes: SRCCL (Iridium L) and SRCCM (Iridium M).

Exterior Dimensions:

SRCCL: 61 x 43.3 x 6.7 inches (155 x 110 x 17 cm)
SRCCM: 50 x 37.5 x 6.7 inches (126.5 x 95 x 17 cm)

Inner Dimensions:

SRCCL: 50.4 x 41.7 x 4.7 inches (128 x 106 x 12 cm)
SRCCM: 39 x 35.4 x 4.7 inches (99 x 90 x 12 cm)

Weight:

SRCCL: 54.5 lbs (24.7 kg)
SRCCM: 45 lbs (20.4 kg)

Maximum Loading Capacity:

SRCCL: 200 lbs (90.7 kg)
SRCCM: 200 lbs (90.7 kg)
- Note: The maximum loading capacity of the cargo carrier should not exceed the maximum capacity of the vehicle's roof cross bars or the car roof itself. Users must always refer to their vehicle and roof rack manufacturer's specifications.

Distance Between Roof Bars:

SRCCL: 28 ~ 43 inches (70 ~ 110 cm)
SRCCM: 22 ~ 37 inches (55 ~ 95 cm)

Universal Mounts:

Fits round, rectangular, aero, and wing bars.
Maximum bar width: 3.5 inches (90 mm)
Maximum bar thickness: 1.75 inches (45 mm)

Stretch Net (Included in Part Kit D):

SRCCL Stretch Net: 36 x 44 inches (92 x 112 cm)
SRCCM Stretch Net: 32 x 40 inches (81 x 100 cm)

Torque Specifications for Assembly:

Part kit 2 (M13 M10 bolts): 5 Nm / 44.3 in-lb
Part kit 3 (T-bolts): 5 Nm / 44.3 in-lb
Part kit 3 (Side rail bolts): 3 Nm / 26.6 in-lb
Part kit 1 (U-bolts/T-bolts for mounting): 5 Nm / 44.3 in-lb

Usage Features

The Hyperax cargo carrier is designed for straightforward assembly and secure attachment to a vehicle's roof bars.

Modular Design: The product comes in several part kits (Part kit 1, Part kit 2, Part kit 3, and D for the stretch net) for organized assembly.
Universal Mounting System: The carrier utilizes U-bolts and T-bolts to accommodate various roof bar shapes and sizes, ensuring broad compatibility. Different U-bolt sizes (A, B, C) are provided to fit varying bar heights (H) and widths (W).
- U-bolt A: For H between 1-3/8" (35mm) and 1-3/4" (45mm)
- U-bolt B: For H between 1" (25mm) and 1-3/8" (35mm)
- U-bolt C: For H between 5/8" (15mm) and 1" (25mm)
- The maximum bar width (W) should be less than or equal to 3.5" (90 mm).
Security Features: The mounting system includes a locking mechanism (indicated by "UNLOCK" and "LOCK" positions) to secure the carrier to the roof bars.
Cargo Securing: A stretch net is included for securing general cargo. For specific items like long boards, additional straps (sold separately) are required. For boats, kayaks, and canoes, bow and stern tie-downs (sold separately) are essential for proper securing.
Safety Warnings:
- The basket must be level when mounted.
- Basket position must be parallel to the car.
- Users must pay attention to the tailgate and antenna clearance.
- The load should be uniformly distributed with the lowest possible center of gravity and should not substantially extend beyond the loading surface.
- The speed driven must be suited to the load transported and official speed limits, with a recommended maximum speed of 80 mph (130 km/h) in the absence of specific limits.
- Off-road driving is not permitted when transporting any load.

Maintenance Features

Proper maintenance is crucial for the longevity and safe operation of the Hyperax cargo carrier.

Regular Inspection: Users are advised to regularly check the attachment between the roof bars and the cargo carrier to ensure it is secure.
Tightness Checks: Periodically check the tightness of all bolts and knobs to prevent loosening during use.
Cleaning: The cargo carrier should be carefully cleaned and maintained, especially during winter months, to prevent damage from environmental factors.
Damage Assessment: Periodically inspect the cargo carrier for any damage. Lost, damaged, or worn parts should be replaced promptly.
Genuine Parts: Only original spare parts obtained from authorized dealers or the manufacturer should be used for replacements. Using non-original parts or making unauthorized modifications will void the manufacturer's warranty and liability.
Warranty Support: In case of defects or issues, Hyperax offers a limited lifetime warranty for the original purchaser. Claims require proof of purchase, a description of the issue, close-up photos of the issue, photos of the entire product, and the product serial number. Support can be accessed via email at warranty@hyperax.co or through their official Facebook page.

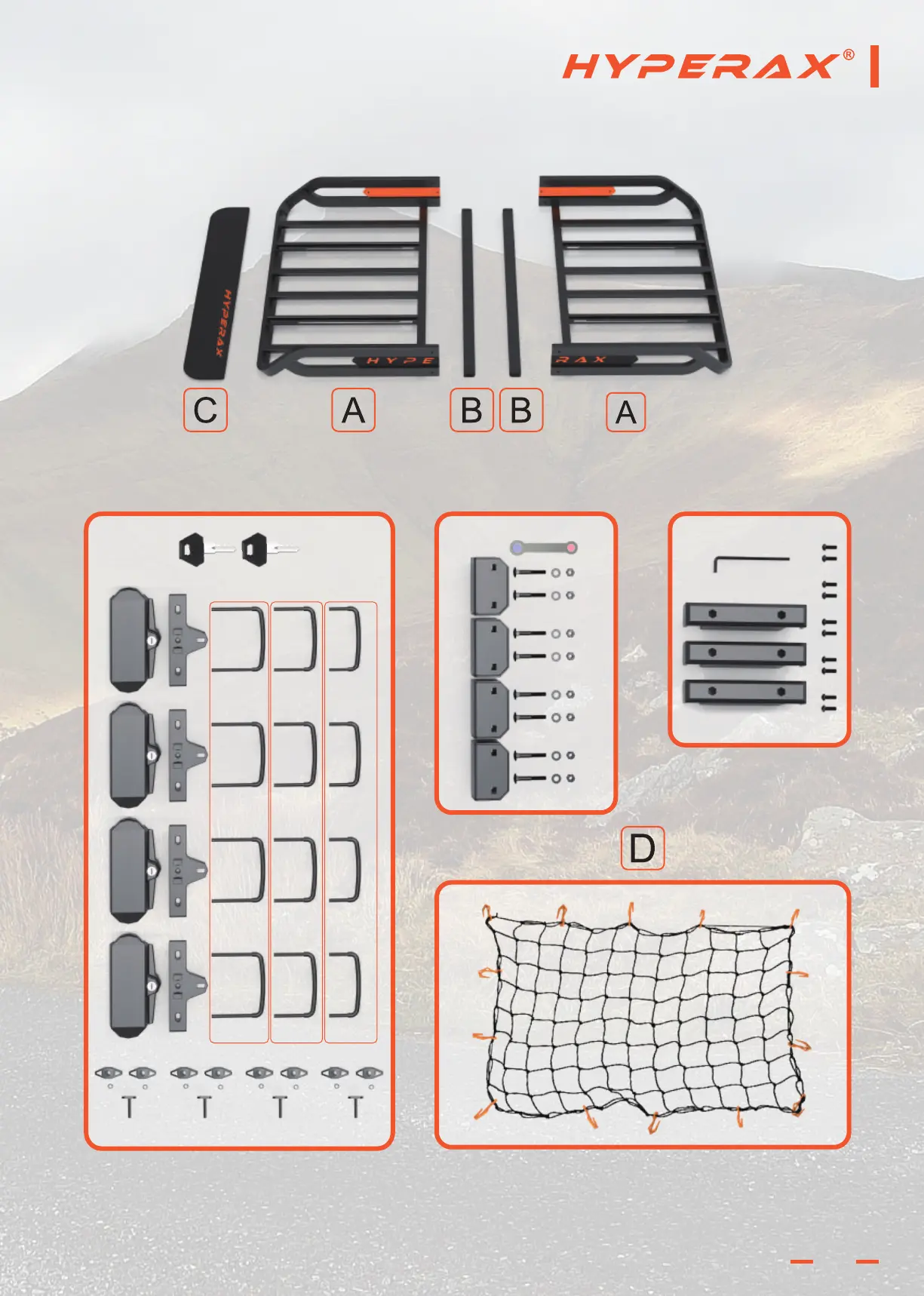

HYPERAX Iridium L - Parts Identification; Assembly Part Kits; Cargo Nets
