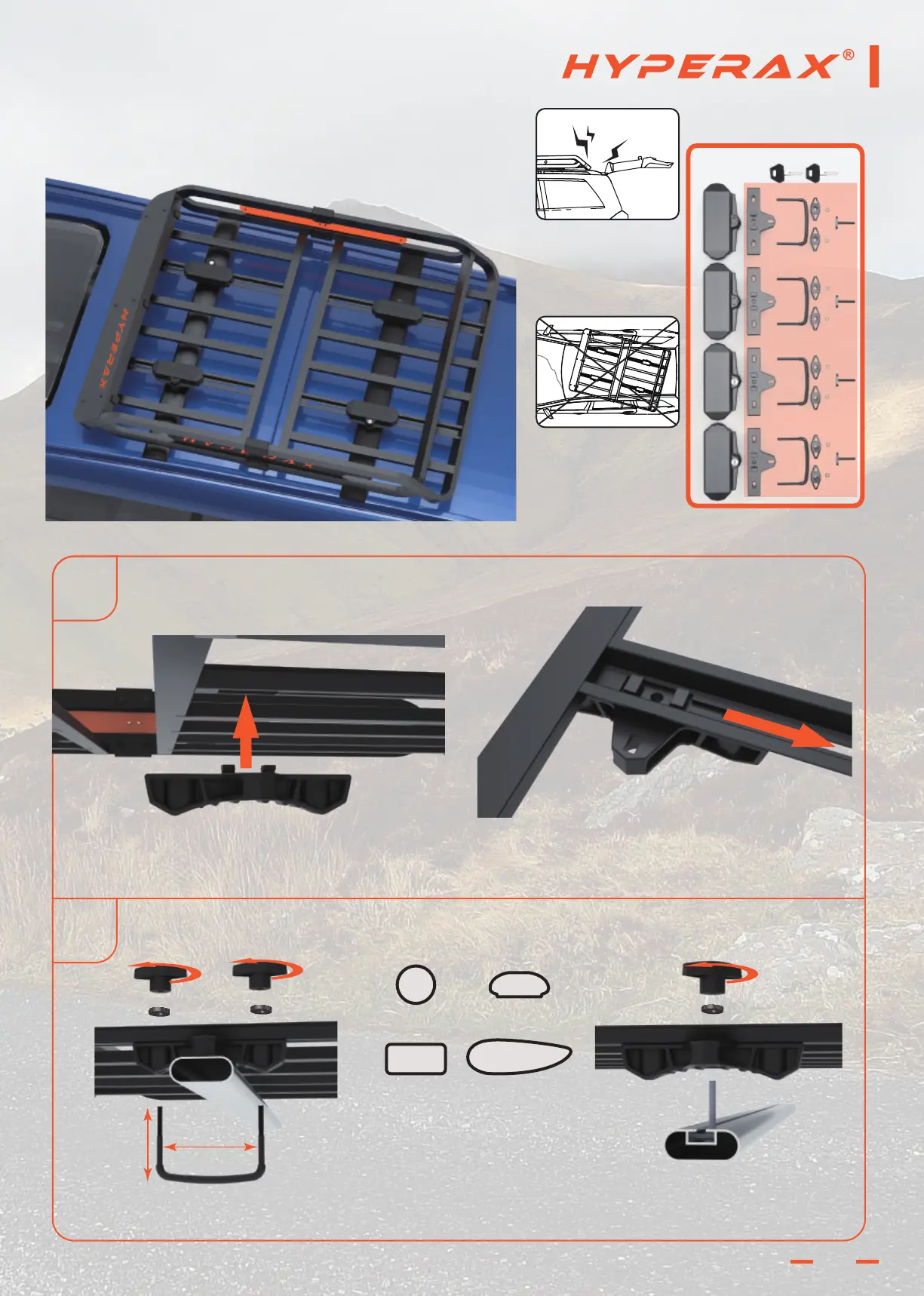

HYPERAX Iridium L - Assembly Steps - Part Kit 1; Mounting Hardware and U-Bolt Selection

05
6
7
W
H
U Bolt T Bolt
Part kit 1
Round Bar
Rectangular Bar Wing Bar
Aero Bar
Caution
The basket must be level
Caution
Pay attention to
the tailgate and
antenna
Caution
Basket position
must be parallel
to the car
W≦3.5”(90 mm)
1-3/8”(35mm)≦H≦1-3/4”(45mm), use U bolt A
1”(25mm)≦H≦1-3/8”(35mm), use U bolt B
5/8”(15mm)≦H≦1”(25mm), use U bolt C
If
MIN Torque : 5 Nm / 44.3 in-lb
