4 EDGE Pro CNC Field Service Bulletin 808110 Revision 1
Wireless networking for EDGE Pro CNCs
Installing the wireless network card
1. Turn OFF AC power to the CNC.
2. Open the EDGE Pro CNC enclosure by removing the 6 screws, then open the front door.
3. Remove the screw holding the metal plate on PCI slot 2. Keep the screw and discard the metal plate.
4. Install the wireless network adapter into PCI slot 2 on the motherboard. DO NOT install the network card into PCI
slot 1.
5. Secure the network card to the EDGE Pro CNC using the screw from the metal plate that you removed earlier.
6. Remove the left side panel of the enclosure so you can access the connectors for the coaxial antenna cables.
CAUTION!
Static electricity can damage circuit boards. Use proper precautions when handling printed circuit
boards.
Store PC boards in anti-static containers.
Wear a grounded wrist strap when handling PC boards.

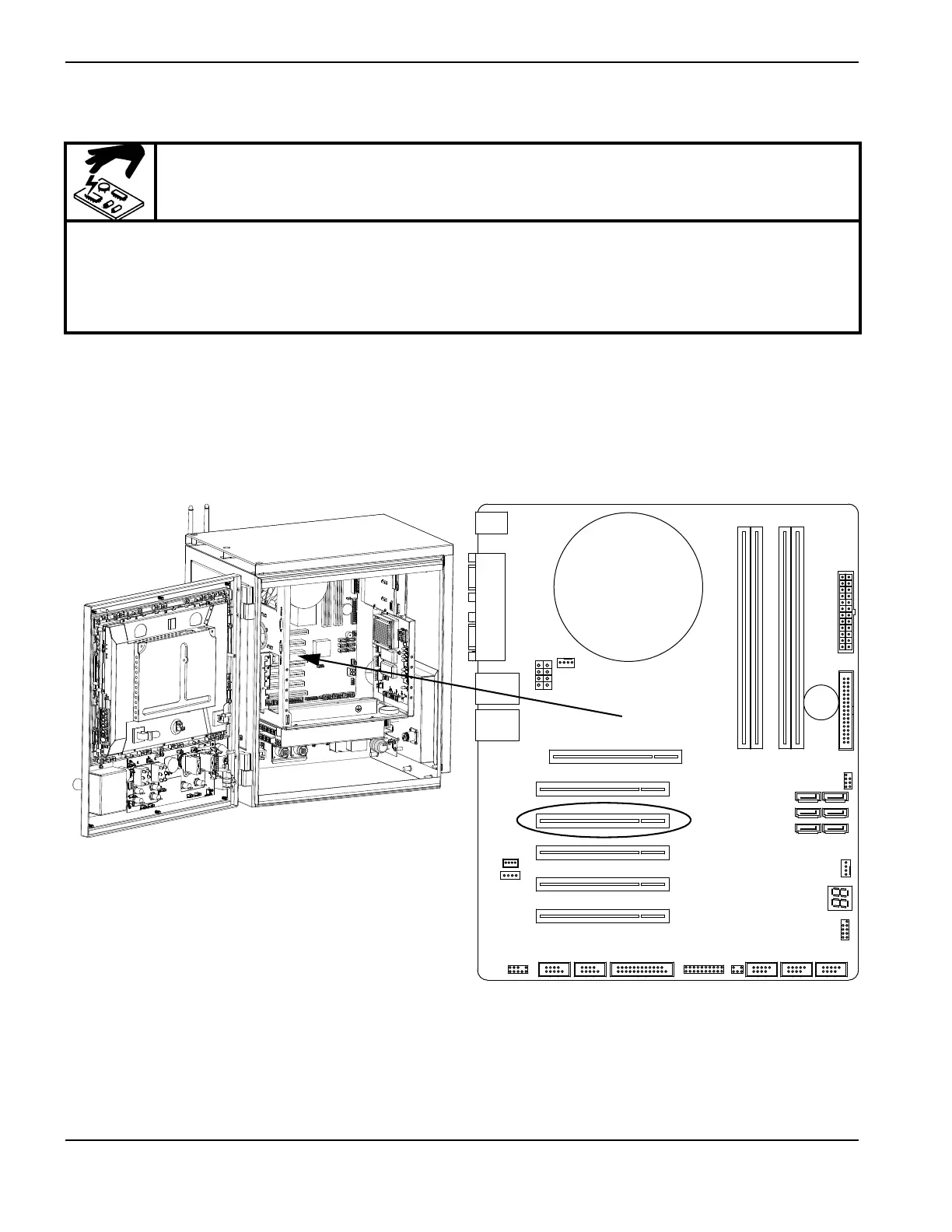

PCI 2
