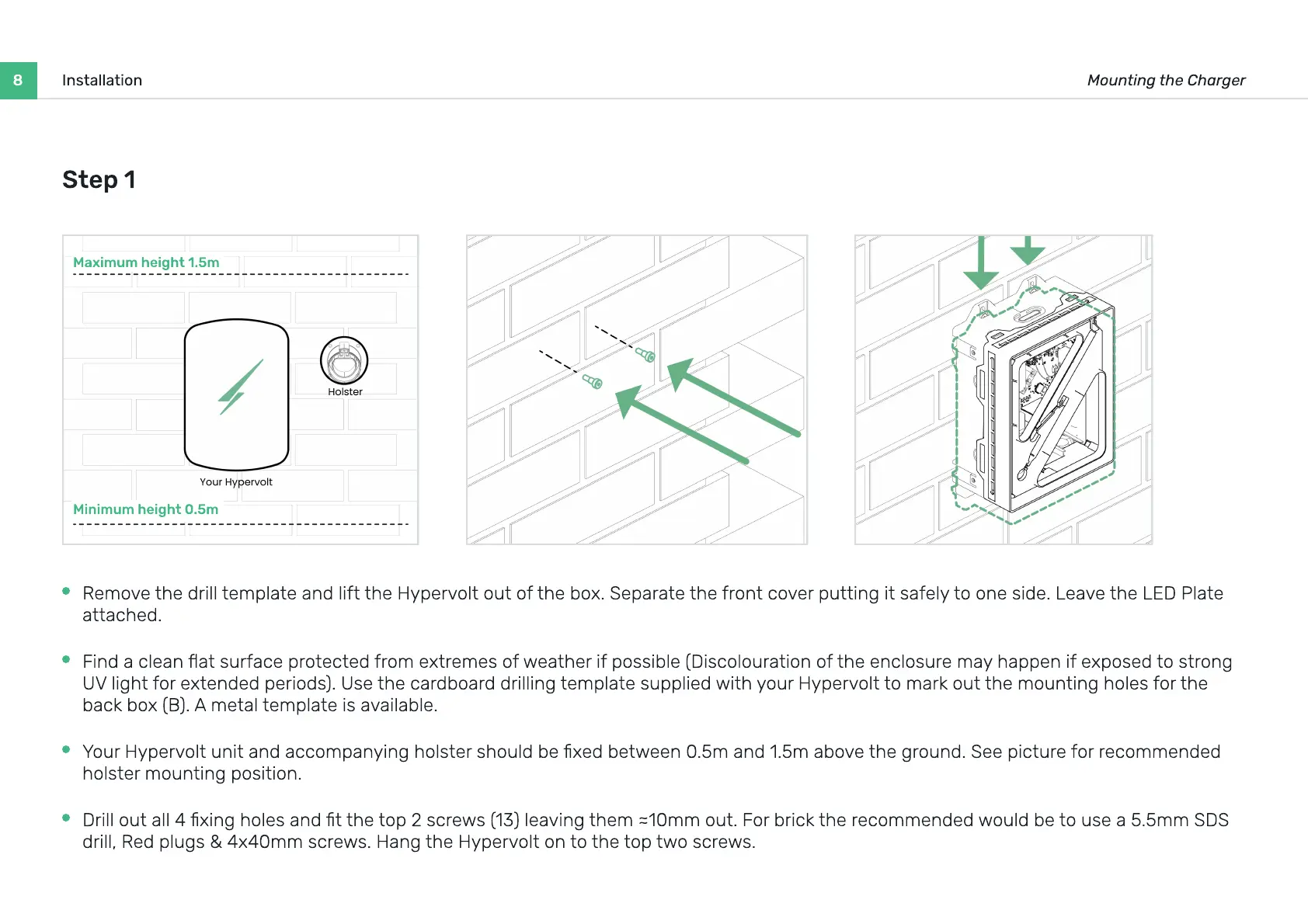

8 Installation Mounting the Charger
Maximum height 1.5m
Minimum height 0.5m
Step 1
Remove the drill template and lift the Hypervolt out of the box. Separate the front cover putting it safely to one side. Leave the LED Plate
attached.
Find a clean at surface protected from extremes of weather if possible (Discolouration of the enclosure may happen if exposed to strong
UV light for extended periods). Use the cardboard drilling template supplied with your Hypervolt to mark out the mounting holes for the
back box (B). A metal template is available.
Your Hypervolt unit and accompanying holster should be xed between 0.5m and 1.5m above the ground. See picture for recommended
holster mounting position.
Drill out all 4 xing holes and t the top 2 screws (13) leaving them ≈10mm out. For brick the recommended would be to use a 5.5mm SDS
drill, Red plugs & 4x40mm screws. Hang the Hypervolt on to the top two screws.
