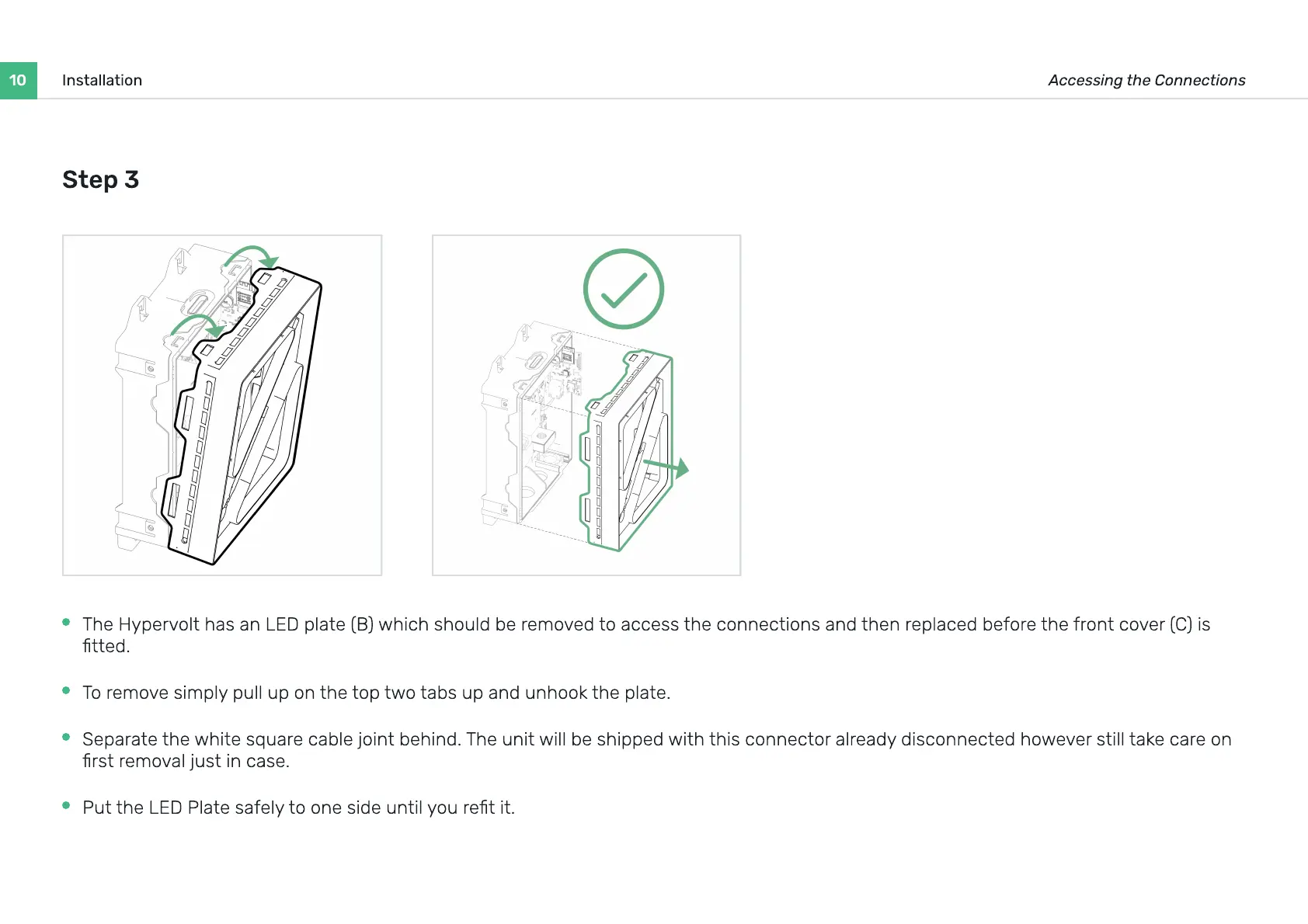

10 Installation Accessing the Connections
Step 3
The Hypervolt has an LED plate (B) which should be removed to access the connections and then replaced before the front cover (C) is
tted.
To remove simply pull up on the top two tabs up and unhook the plate.
Separate the white square cable joint behind. The unit will be shipped with this connector already disconnected however still take care on
rst removal just in case.
Put the LED Plate safely to one side until you ret it.
