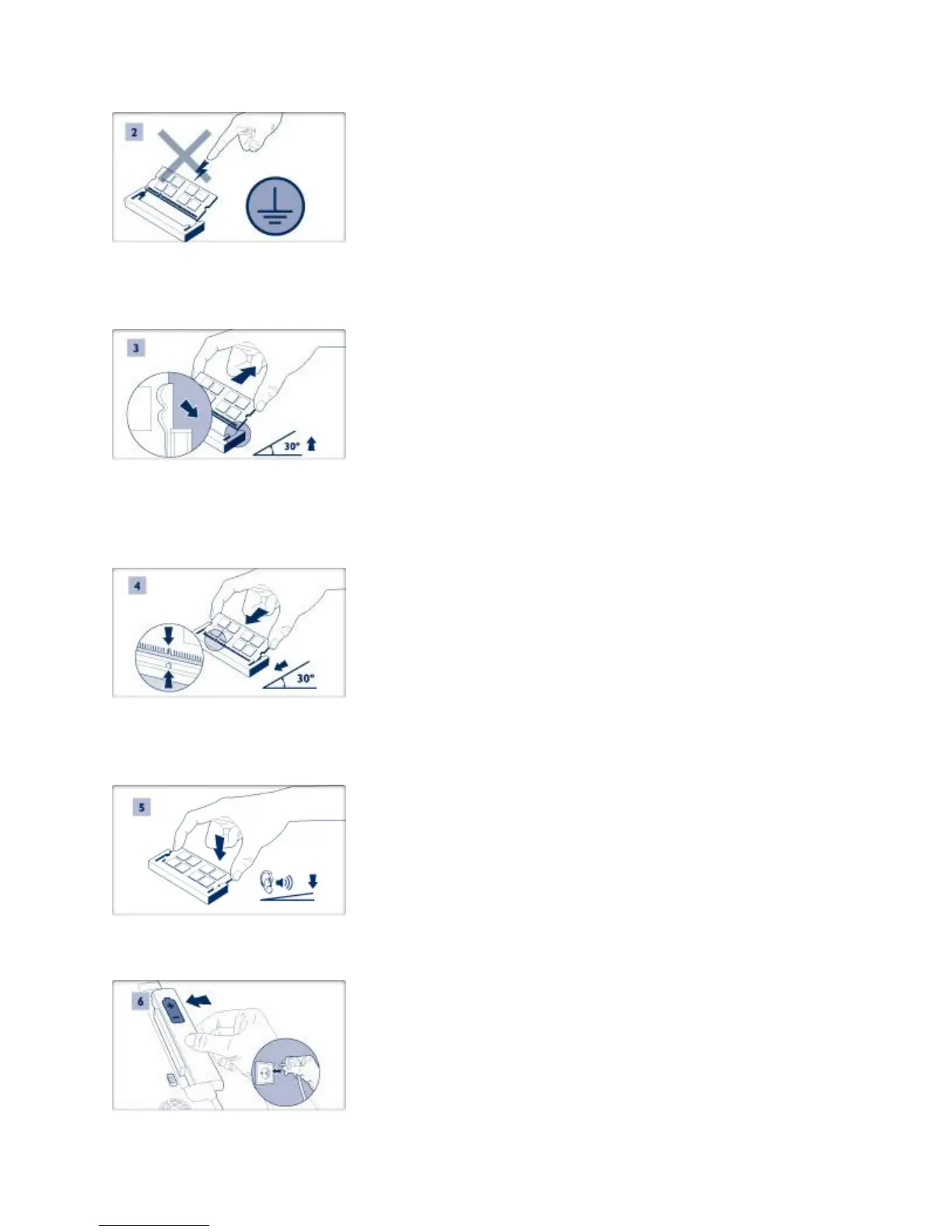

2) Prior to handling the memory module(s), always touch an unpainted and grounded metal
object or use a grounded antistatic wrist strap to prevent electrostatic discharge (ESD).
3) If necessary, remove pre-existing memory by gently pulling the lock/ejector tabs (located on
both sides of the memory socket) away from the memory module. The memory will unlock and
pop-up 30 degrees for removal.
4) Align the memory module key along with the memory socket key and insert the memory at a
30 degree angle.
5) Rotate the memory downward until the lock/ejector tabs engage and click into place.
