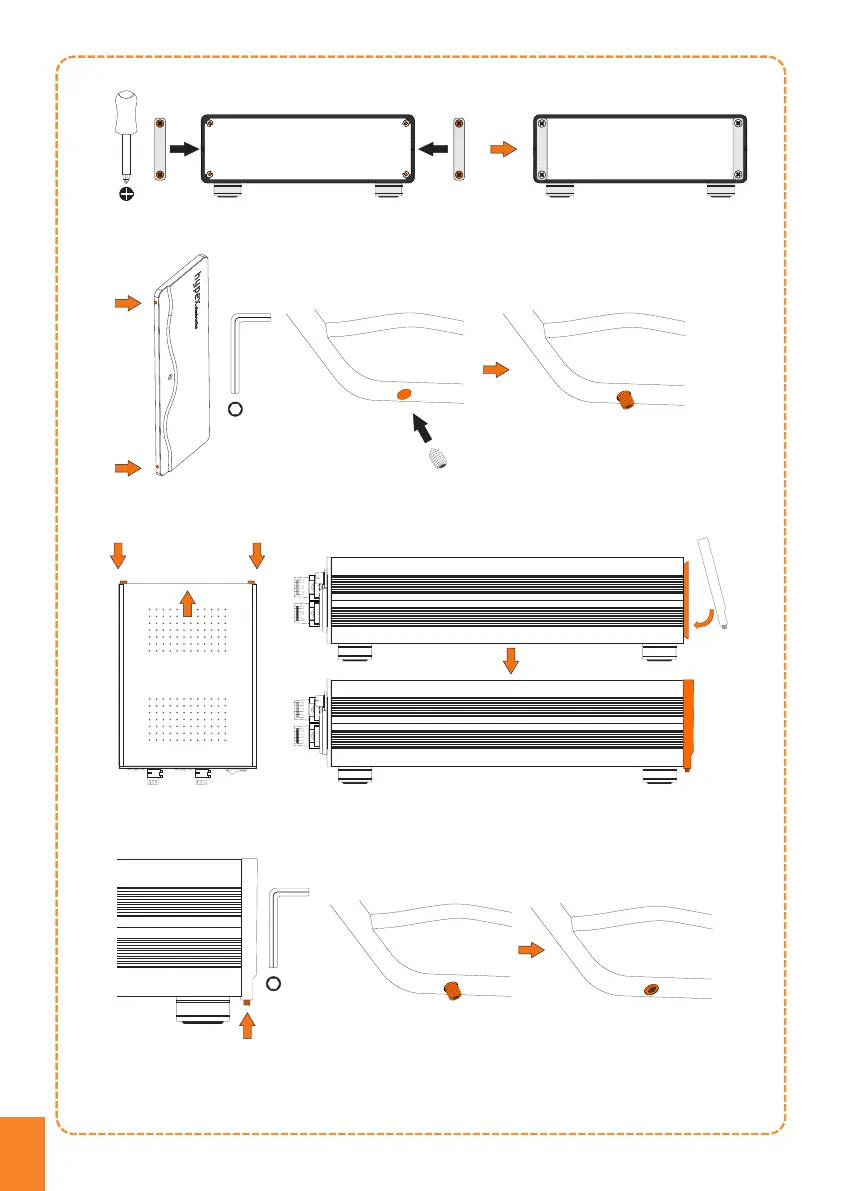

24
2x
❺
❹
2x
❸
❷
25
Neutrik NC3FXX-B or -BAG (female)
Neutrik NC3MXX-B or -BAG (male)
This information is given for reference and to guide
you in connecting your DIY-kit in the correct way.
Do not modify the internal wiring of the kit other
then specified in the instructions.
Balanced XLR connection:
Pin 1: Shield
Pin 3: Negative (- or cold)
Pin 2: Positive (+ or hot)
Pinout:
Advanced system information
Dimensions and weight
(weight for the total assembled kit)
External size (WxHxD): 200 x 79 x 280 mm
(size incl feet, excl connectors)
UcD400 stereo kit: 2.85 kg
Distortion:
0.01% @ 20Hz < f < 20kHz Pout<PR/2
20mΩ f < 1kHz
150mΩ f < 20kHz
Performance:
Power Bandwidth: 20 - 35kHz
Voltage Gain: 25.5 - 26.5dB
Frequency Response: 10Hz - 50kHz
Output Impedance:
Operation:
Load impedance: min 1Ω
For more detailed information please refer to the
datasheet of each individual product on our
website.
Source impedance: max 7kΩ
Line input power
Low Line input voltage: 100 - 120Vac ±10% *
High Line input voltage: 200 - 240Vac ±10%
Connector: 3-pin IEC 250Vac, 10A male.
Input power:
Depending on load, 470W max
Input sensitivity:
200W 4Ω @ 1.41V
Line input frequency: 47 - 63 Hz
Channels:
* With jumper placed
**Both channels driven
Output power in 4 < 1% THD+N :Ω @
Output:
200W**
Output power in 8 < 1% THD+N :Ω @
UcD®
200W**
Stereo XLR
2
Bindingpost
Input:
Technology:
System information UcD400 stereo kit
