Hypnocube 4Cube Instructions v 6.5, December 2013
- 23 -

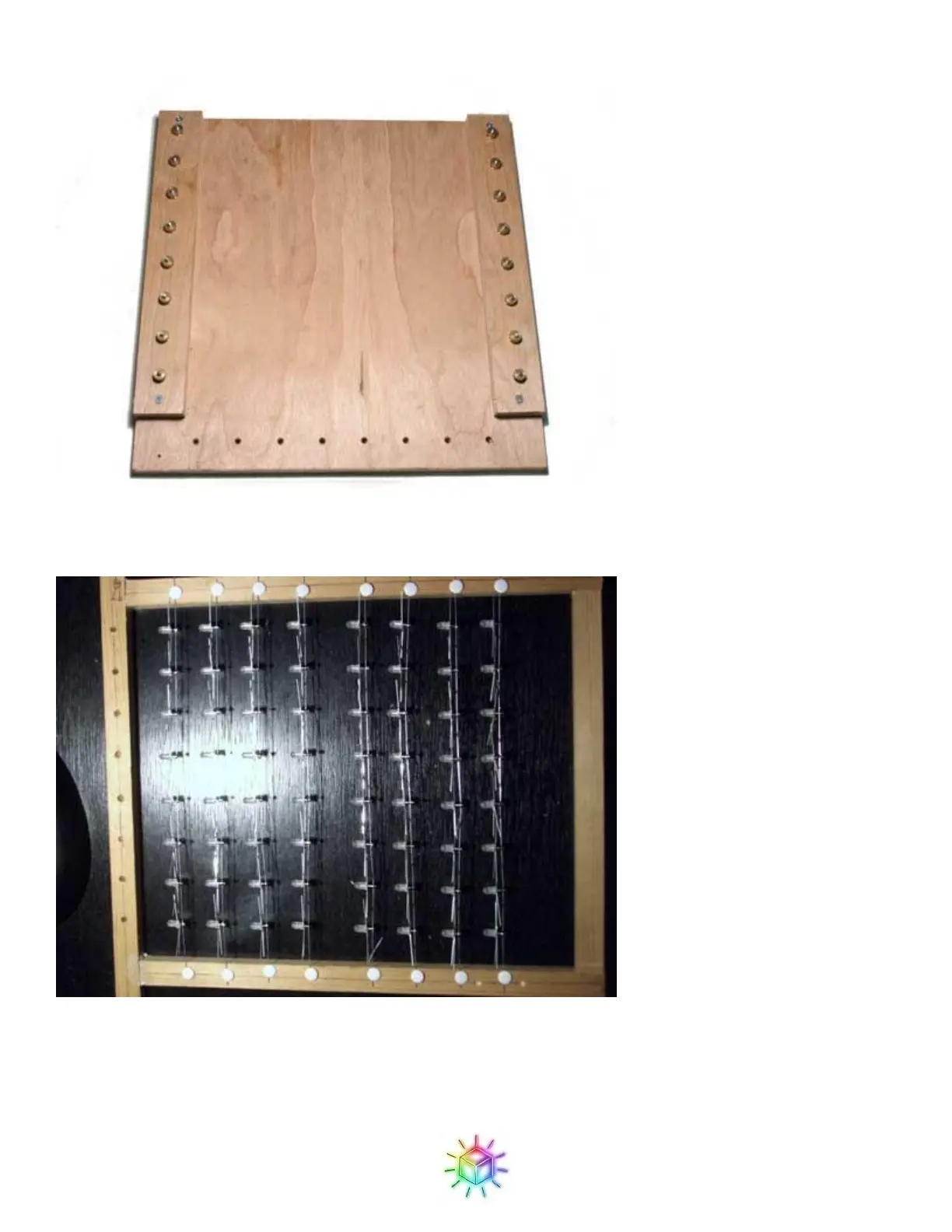

Figure 41: Wooden jig.
Figure 42: Wooden jig with thumbtacks made by a customer.
You will attach the strips to the grid as follows. Place a strip across the top, LEDs pointing straight to the top of
the jig (the cross section). Make the diagonal blue leads point away from the table. Secure with screws, tape, or
however you want to secure it. Then clip the ground wires that are sticking down past the cross connectors (you
could clip them before attaching to the jig if you desire).
