Hypnocube 4Cube Instructions v 6.5, December 2013
- 30 -
Congratulations again! You have completed the hardest part of the cube. The rest is being careful, and perhaps
some troubleshooting if needed.
Step 4: Cutting the grid
We will now cut the 8x8 grid into 4 separate 4x4 grids. Be very careful when cutting, as cutting in the wrong
spot will entail some very tricky soldering to fix.
You will need to cut the 3 vertical wires in each column just above the LEDs in row 5. Likewise, cut the
horizontal ground wire just to the right of the LEDs in column 6. Remember, we’re making 4x4 grids, so a good
sanity check is to make sure that 4 LEDs are to either side of your cut.

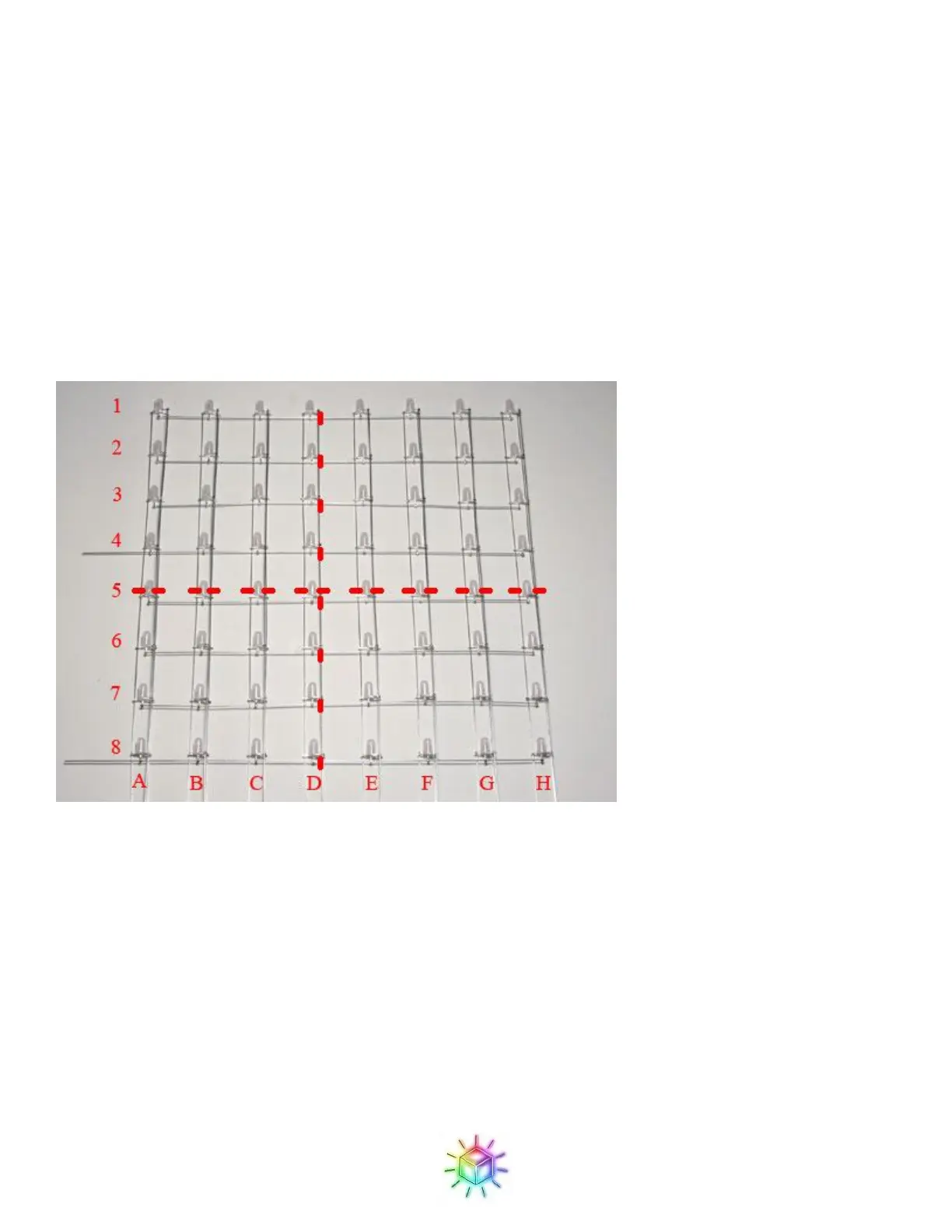

Figure 53: Cutting points.
Figure 54 shows a close up of the cutting points. Cut the wires in between row 4 and row 5, immediately above
the row 5 LEDs.
