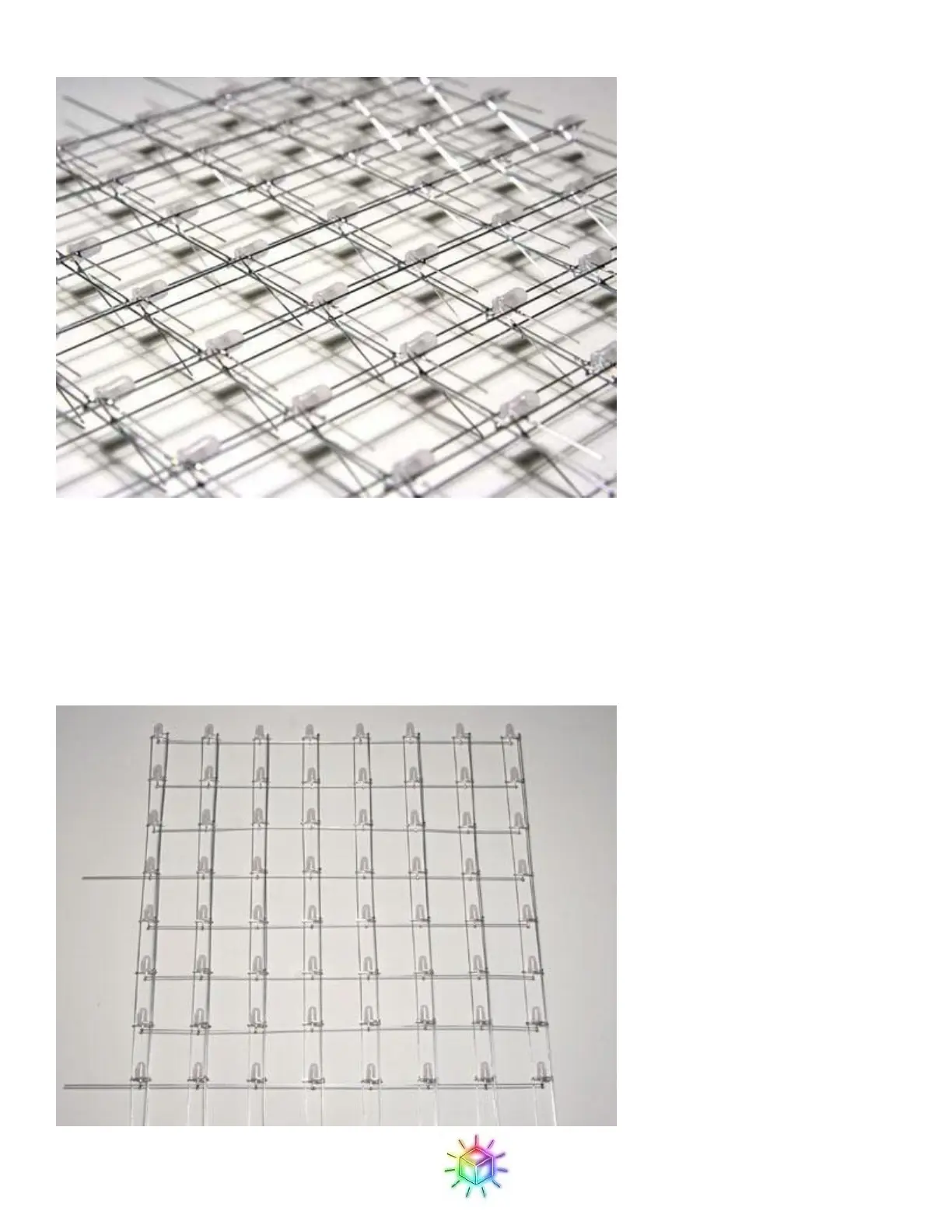

Figure 51: Lattice with all drop wires soldered.
Once you have all three sets of drop wires soldered in place, we can clip the excess length off of all of the LED
leads.
Trimming the ground wires and drop wires takes a bit of caution, as it is important to keep some of them. You
must leave all of the drop wire at the bottom, and the 4th and 8th ground wire on the left side (on the side of the
red drop wire, and opposite side from the blue and green drop wires) as shown below.
Figure 52: Finished 8x8 grid.
