Hypnocube 4Cube Instructions v 6.5, December 2013
- 32 -

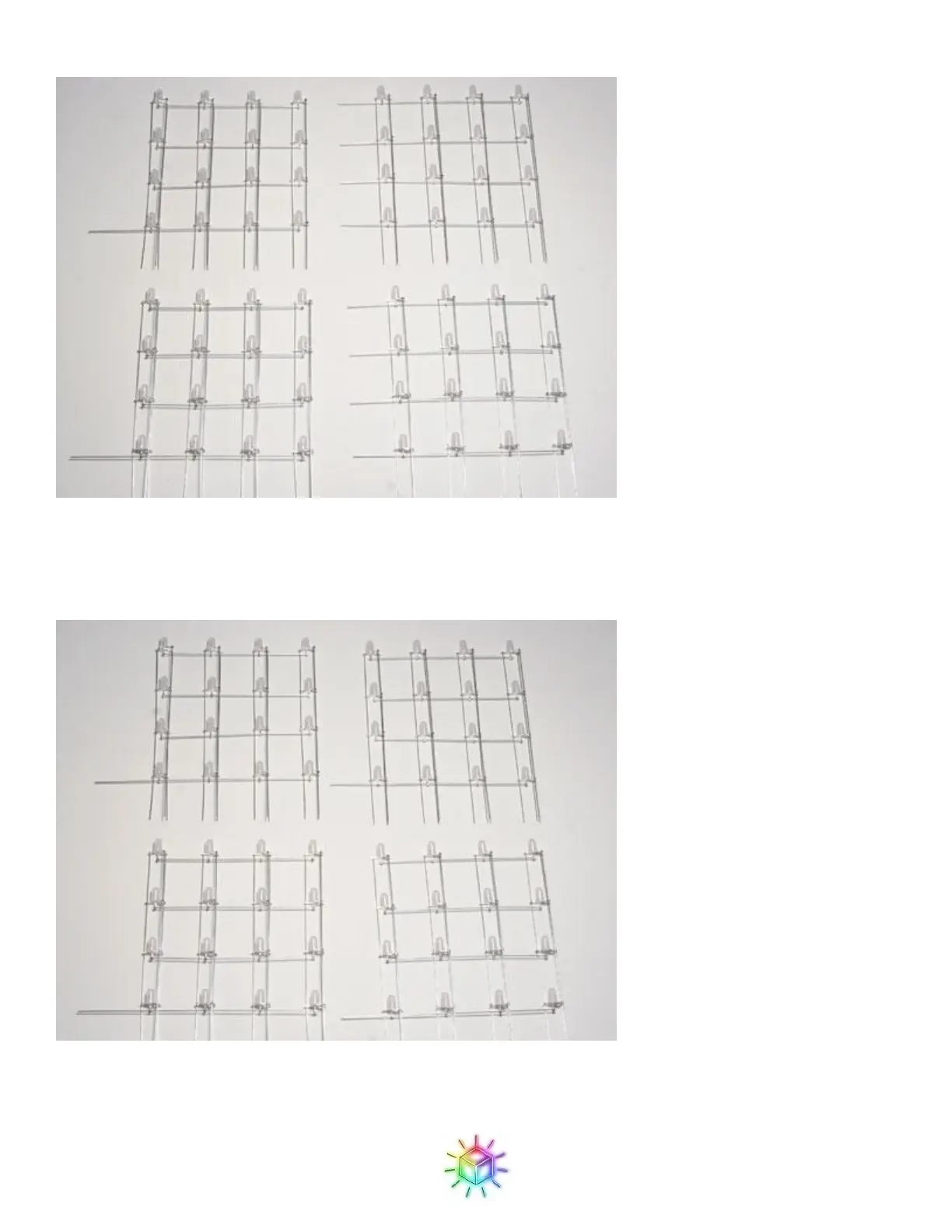

Figure 56: The four separated 4x4 planes.
Trim off the top 3 ground wires on two of the newly created planes to match the other two. Make sure you leave
the bottom one! Your planes should now look like Figure 54.
Figure 57: 4x4 planes after trimming.
Now use a pair of needle nose pliers to bend the bottom ground wire of each plane into a drop wire. The ground
drop wire should be roughly aligned with the 2 other drops next to it, forming the fourth corner of a rectangle.
