This saves us a bit of hassle in Part 3, taking what would be the trickiest ground drop and making it the easiest!

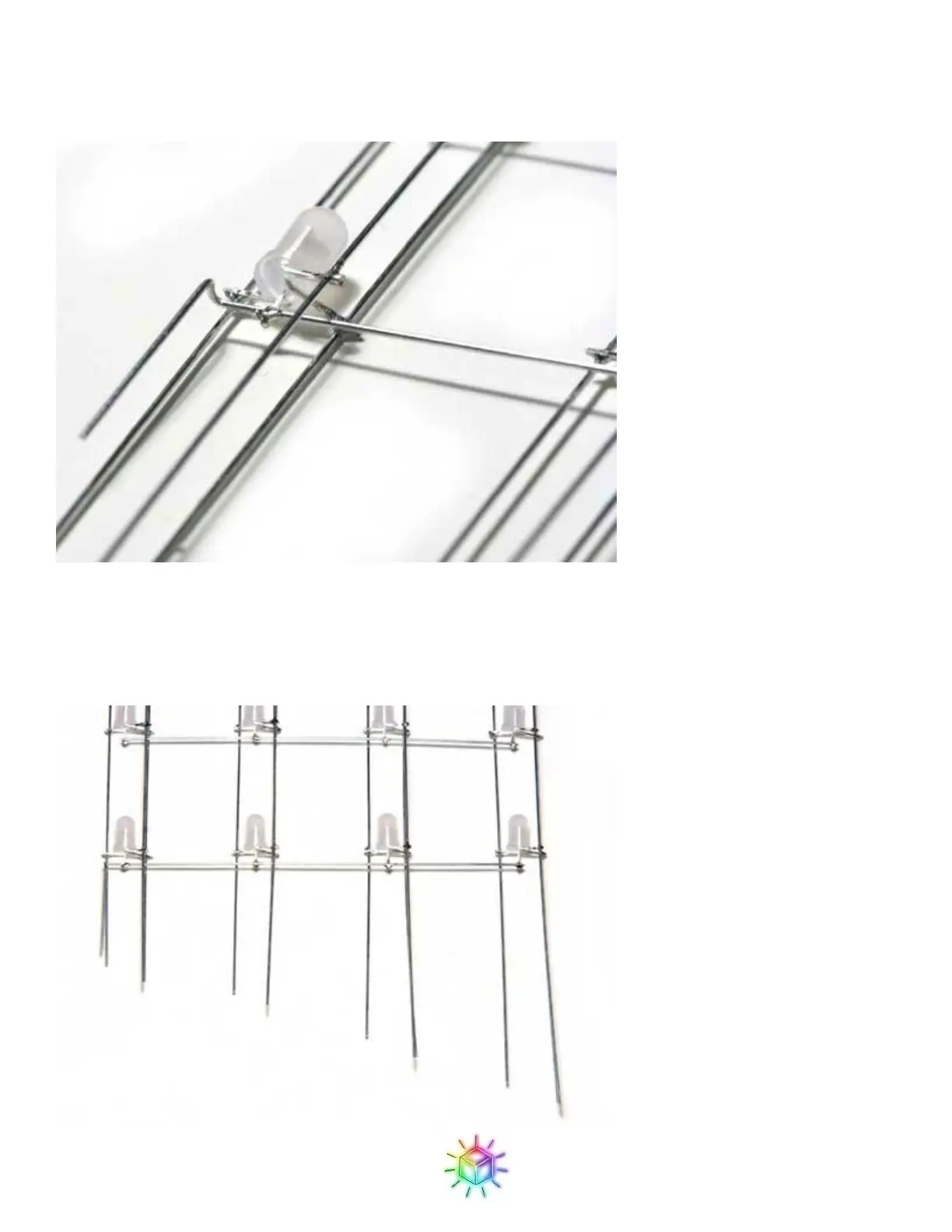

Figure 58: Close up of bending the bottom ground drop wire.
Finally, take the two planes with the excess drop wire lead lengths and trim them as shown in Figure 59. This
will make inserting the planes into the PCB considerably easier. Unfortunately you can only do this on two of
the four planes as the leads on the other two are too short, but two is still better than none.
Figure 59: Cascading the drop wires for easier insertion.
