POWER

PROTECT

BASS BOOST SUBSONIC FILTERS LOW PASS INPUT LEVEL

INPUTOUTPUT

REMOTE

0dB 12dB 15Hz 55Hz 40Hz 150Hz 6V 0.2V

L L

R R

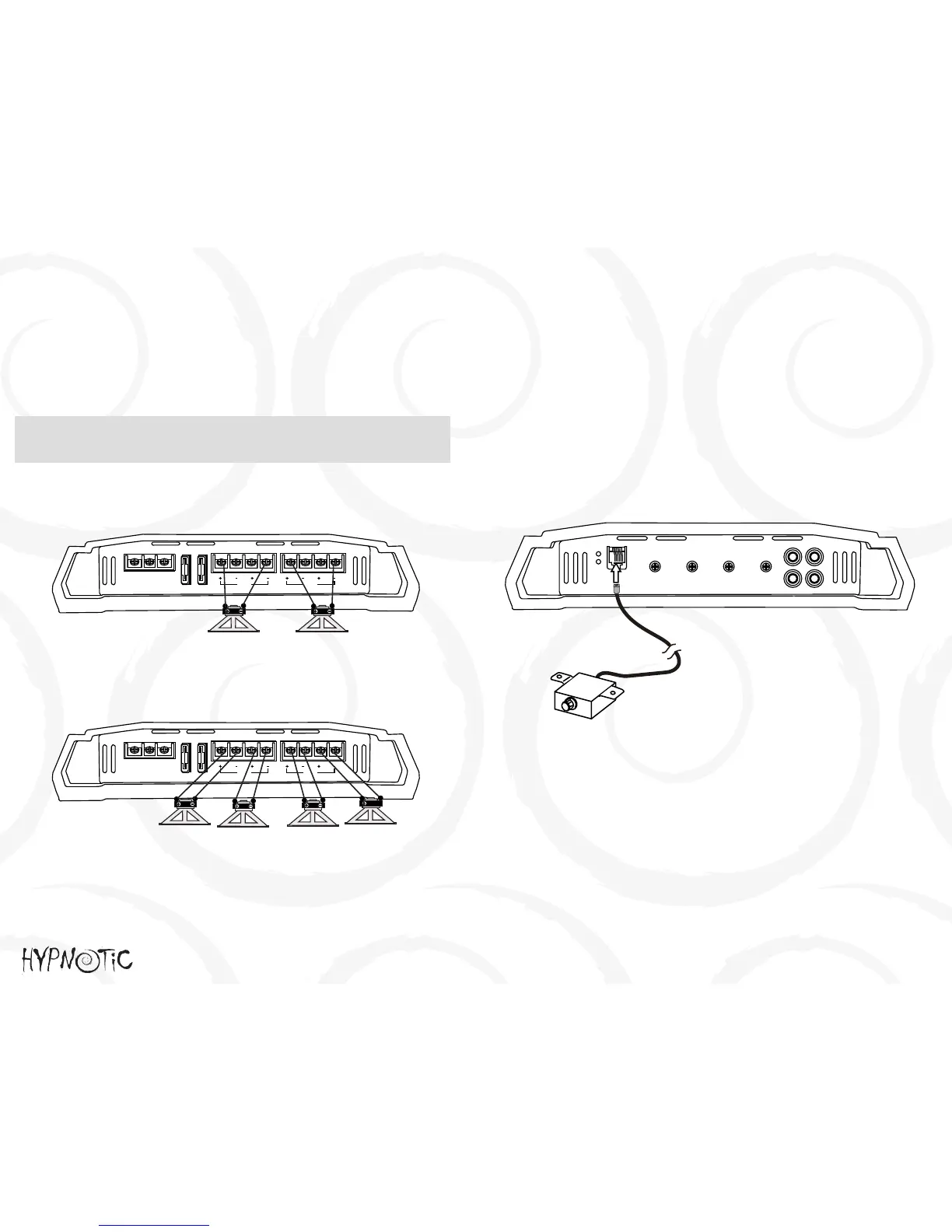

SPEAKER CONNECTIONS

(HYP160.4 , HYP250.4)

Make the speaker connections using speaker wire that is at least 16

gauge or heavier.

As with any audio component, proper phasing of the amplifier and speakers is essential

for strong bass response. When connecting, make sure that positive (+) from the amplifier

is connected to the positive (+) of the speaker, and the same for negative (-).

***CAUTION! In the bridged mode, the amplifier must see a 4 Ohm load or higher. Any

lower than 4 ohms will cause the amplifier to overheat and possible cause permanent

damage to the amplifier!

REMOTE BASS CONTROL MODULE

(HYP1250.1D , HYP1800.1D , HYP2500.1D)

Before connecting the remote, it will be necessary to find a mounting location that will be

easy to access for adjustment. Once you select your mounting location, you will need to

run the control wire from the remote to the amplifier. To avoid possibility of induced noise

from the car’s electrical system (i.e. popping noises or engine noise), run the cable from

the remote to the amplifier away from the car’s electrical wiring.

9 10

GND REM +12V

FUSE SPEAKER OUTPUT SPEAKER OUTPUT

BRIDGED BRIDGED

POWER INPUT

CH1 CH2 CH3 CH4
