Hypnotic HYP160.4 - Signal Connections; Speaker Connections

X-OVER BASS BOOST
LEVELLPFHPF HPF
INPUT OUTPUT INPUT
X-OVER
LEVEL
CH3&4
CH1&2
HPF FULL
LPF
MIN MAX
12 6
0
HPFFULL
MIN MAX
POWER
PROTECT
120Hz 3kHz120Hz 3kHz 50Hz 250kHz
CH4
CH3
CH2
CH1
CH2
CH1

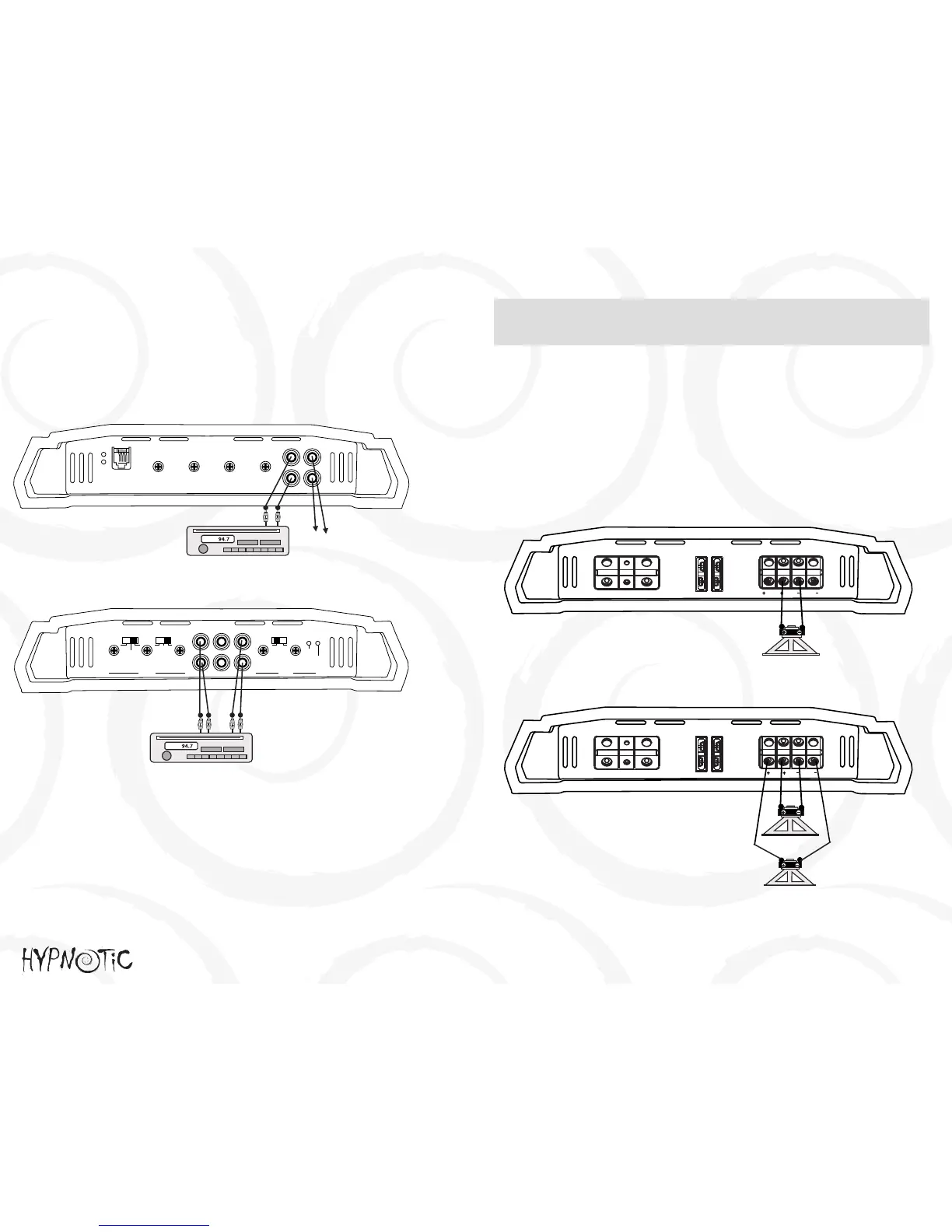

SIGNAL CONNECTIONS
Connect the RCA output of the head unit (AM/FM cassette player, CD, or DAT) to the
RCA input terminals of the amplifier.
To make these connections, we recommend high quality RCA cables, which are available
at your local car audio retailer. Run signal wires away from electrical wires to avoid
possibility of induced noise from the car’s electrical system (i.e. popping noises or engine
noise).
SPEAKER CONNECTIONS
IMPORTANT! The following speaker connection are for the amplifier in normal mono
configuration. Make the speaker connections using speaker wire that is at least 16 gauge
or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential
for strong bass response. When connecting, make sure that positive (+) from the amplifier
is connected to the positive (+) of the speaker, and the same for negative (-).
Please note that although the HYP1250.1D , HYP1800.1D, and HYP2500.1D are mono
amplifiers, we have provided two sets of speaker terminals on the amplifier. These
terminals are connected in paralleled internally (connected together). The second set
of speaker terminals are intended for ease of connection when running multiple woofers.
7 8
MONO SIGNAL
CONNECTION
L
R
L
R
94.7
SIGNAL CONNECTION:
4 Channel Amplifier using
2 pair of RCA inputs.
Optional full range line out connection
in addition to the system.
POWER
PROTECT
BASS BOOST SUBSONIC FILTERS LOW PASS INPUT LEVEL
INPUTOUTPUT
REMOTE
0dB 12dB 15Hz 55Hz 40Hz 150Hz 6V 0.2V
L L
R R
94.7
L
R
POWER INPUT
SPEAKER OUTPUT
GND REM +12V
FUSE
POWER INPUT
SPEAKER OUTPUT
GND REM +12V
FUSE
+
-
4 Ohm Speaker
Ohm minimum)
+
-
+
-
4 Ohm Speaker
4 Ohm Speaker
2 Ohm Speaker (2 Ohm minimum)
